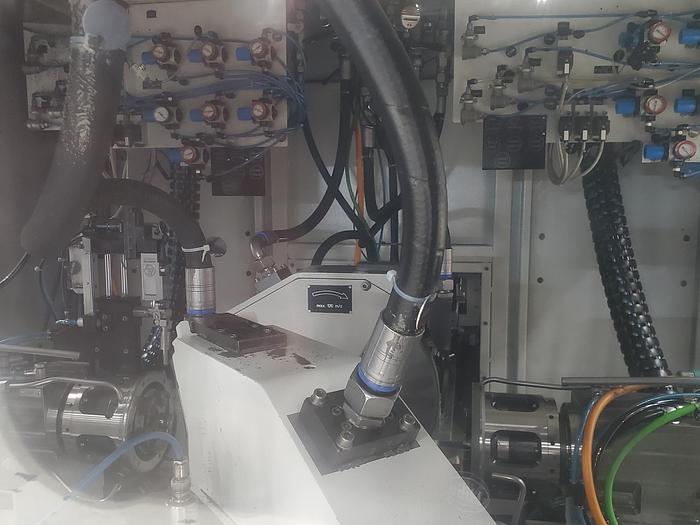

2016 Bahmüller Ultra Alpha Internal Grinding Machine

2016 Bahmüller Ultra Alpha Internal Grinding Machine

Contact us for price

Location:Ohio

Description

Bahmüller Ultra Alpha Grinder

Mfg: Bahmuller

Model: Ultra Alpha

YOM: 2016

Technical Details

Bahmueller Ultra Alpha sander

Grinding length bore: max. 60 mm

Inner diameter (internal grinding): max. 40 mm

Grinding length : max. 200 mm

External grinding diameter : max. 20 mm

Center height: 990 - 1198 mm (incl. set-up elements)

Installation area: 12 - 17m² (with peripheral devices, without cooling lubricant system)

Weight: approx. 5,000 - 11,000 kg (without control cabinet and units)

Cross slide

max. usable slide path X: 620 mm

max. usable slide path Z : 250 mm

max. axis speed: 30 m/min

smallest step increment: 0.0001 mm

smallest programmable step: 0.0001 mm

External grinding spindle: frequency-controlled with direct drive

Grinding wheel diameter: max. 610 mm

Bore: 127 - 203.2 mm

Width: max. 100 mm

Drive power: max. 12.6 kW

Wheel peripheral speed: max. 125 m/s

Internal grinding spindle: max. 4 internal grinding spindles

Drive power: 0.7 - 18 kW

Speed: 21,000 - 200,000 1/min

Tailstock

Mounting cone: MK3

Quill travel: 30 mm

Cylinder error compensation with servo motor: < 0.0002 mm

Cylinder error compensation with piezo control: < 0.0001 mm

Measurement: In-process measurement

Measuring system: Marposs

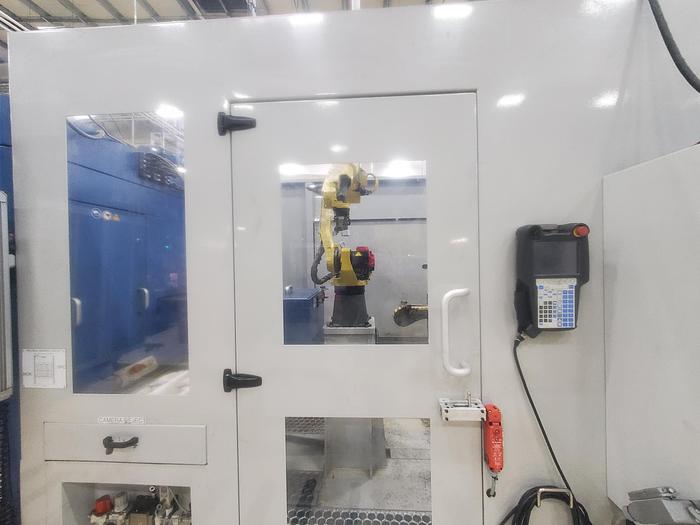

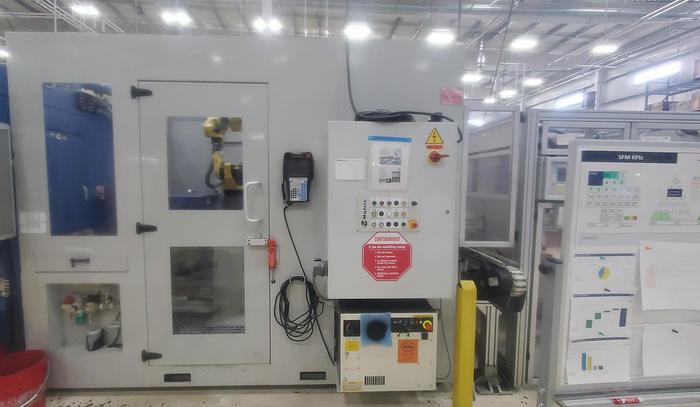

Bahmüller automation cell Matrix automation cell

Robot: M10iA Fanuc

Manufacturer: Matrix Automation

Vision orientation: Camera for loading

Loading: Flexchain (Flexlink) Feeding;

Unloading: Flexchain (Flexlink) outfeed with automatic flipper

CDMC Index deburring machine

Year of manufacture: 2016

Manufacturer: Cleveland

Chuck: 4

Stations: 2


Specifications

ManufacturerBahmuller
ModelUltra Alpha
Year2016
ConditionUsed
Stock Number0307849
