2017 Haas VF-9 Vertical Machining Center

Haas VF9 Vertical Machining Center

Mfg: Haas

Model: VF9/50

YOM: 2017

Travels S.A.E METRIC

X-Axis 84"

Y-Axis 40"

Z-Axis 30"

Spindle Nose to Table (~ max) 35.0 in 889 mm

Spindle Nose to Table (~ min) 5.0 in 127 mm

Spindle S.A.E METRIC

Max Rating 30.0 hp 22.4 kW

Max Speed 7500 rpm 7500 rpm

Max Torque 340.0 ft-lbf @ 700 rpm 460.0 Nm @ 700 rpm

Drive System 2-Speed Gearbox 2-Speed Gearbox

Taper CT 50

Bearing Lubrication Air / Oil Injection Air / Oil Injection

Cooling Liquid Cooled Liquid Cooled

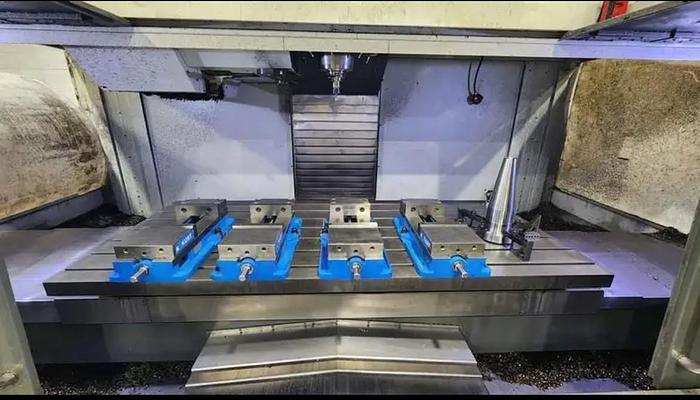

Table S.A.E METRIC

Length 84.0 in 2134 mm

Width 36.0 in 914 mm

T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm

T-Slot Center Distance 4.92 in 125 mm

Number of Std T-Slots 7 7

Max Weight on Table (evenly distributed) 4000 lb 1814 kg

Feedrates S.A.E METRIC

Max Cutting 500 ipm 12.7 m/min

Rapids on X 600 ipm 15.2 m/min

Rapids on Y 600 ipm 15.2 m/min

Rapids on Z 600 ipm 15.2 m/min

Axis Motors S.A.E METRIC

Max Thrust X 3400 lbf 15124 N

Max Thrust Y 4100 lbf 18238 N

Max Thrust Z 5600 lbf 24910 N

Tool Changer S.A.E METRIC

Type SMTC SMTC

Capacity 30+1

Max Tool Diameter (full) 4.0 in 102 mm

Max Tool Diameter (adjacent empty) 10.0 in 254 mm

Max Tool Length (from gage line) 16 in 406 mm

Max Tool Weight 30.0 lb 13.6 kg

Tool-to-Tool (avg) 4.20 s 4.20 s

Chip-to-Chip (avg) 6.30 s 6.30 s

General S.A.E METRIC

Coolant Capacity 95 gal 360 L

Air Requirements S.A.E METRIC

Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar

Inline Air Hose 3/8 in 3/8 in

Coupler (Air) 3/8 in 3/8 in

Air Pressure Min 80 psi 5.5 bar

Dimensions - Shipping S.A.E METRIC

Domestic Pallet 214.0 in x 120.0 in x 131.5 in 544 cm x 305 cm x 334 cm

Export Crate 214.0 in x 123.0 in x 133.5 in 544 cm x 313 cm x 339 cm

Weight 28900 lb 13109.0 kg

Domestic Pallet w/EC Option 214 in x 120 in x 140 in 544 cm x 305 cm x 356 cm

Export Crate w/EC Option 214 in x 123 in x 142 in 544 cm x 313 cm x 359 cm

Weight w/EC Option 28900 lb 13109 kg

Electrical Specification S.A.E METRIC

Spindle Speed 7500 rpm 7500 rpm

Drive System 2-Speed Gearbox 2-Speed Gearbox

Spindle Power 30.0 hp 22.4 kW

Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC

Full Load Amps (3 Phase) - Low 70 A 70 A

Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC

Full Load Amps (3 Phase) - High* 35 A 35 A

Equipped With:

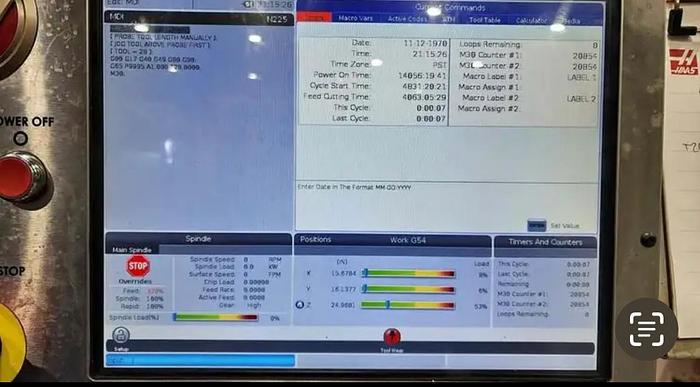

Next Gen Control

Cat 50

30 Position ATC Side Mount

Tool and Spindle Probing

1000 PSI Thru Spindle Coolant

High Speed Machining

All Specifications Subject to Buyer's Verification
