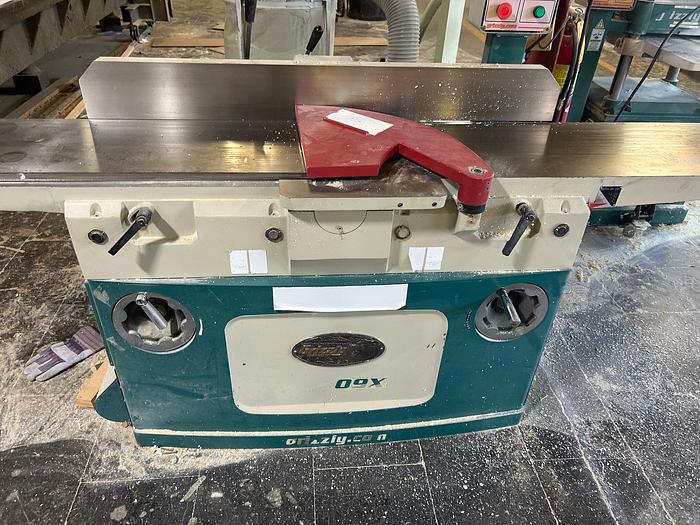

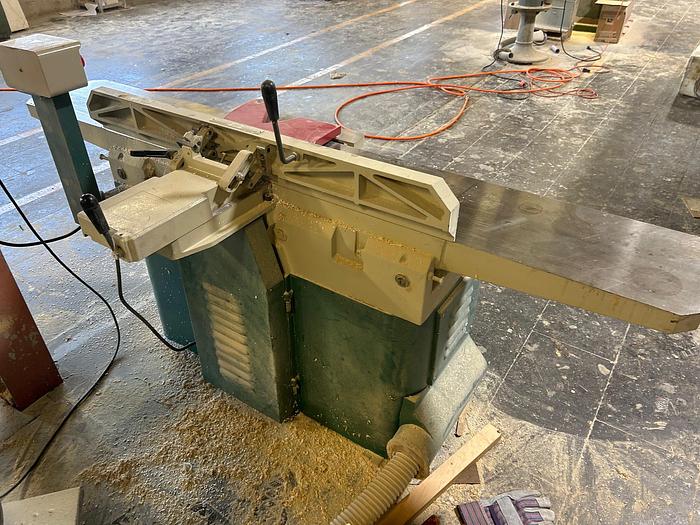

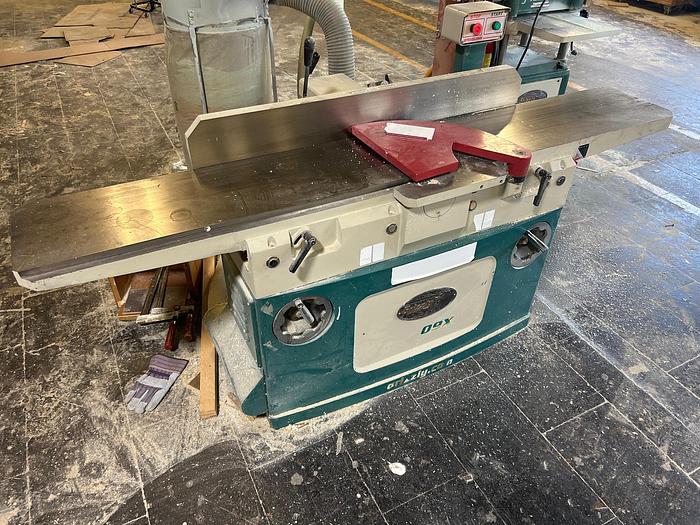

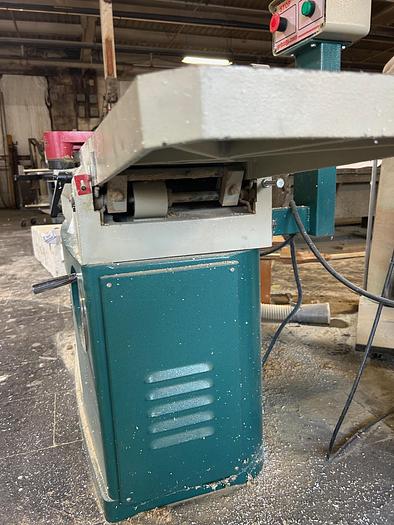

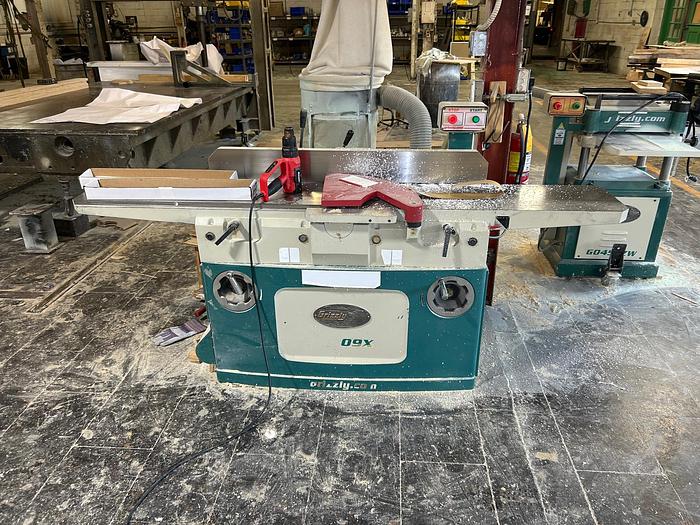

Grizzly G0609X - 12" x 84" Jointer w/ Spiral Cutterhead

Grizzly G0609X - 12" x 84" Jointer w/ Spiral Cutterhead

Mfg: Grizzly Industrial

Model: G0609X

Motor: 3 HP, 230V, single-phase, 15A

Precision-ground cast iron table

Table size: 12-3/4" x 83-1/2"

Floor to table height: 31-11/16"

Maximum depth of cut: 1/8"

Rabbeting capacity: 3/4"

Cutterhead diameter: 3-7/8"

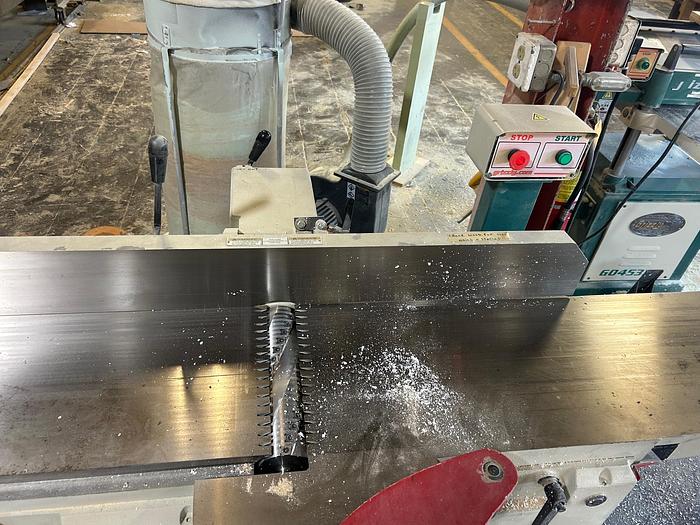

Cutterhead: Spiral with indexable carbide inserts

Cutterhead speed: 4300 RPM

Switch: Magnetic with thermal overload protection

Fence stops at 45°, 90°, and 135°

Approximate shipping weight: 1056 lbs.

FEATURES:

Parallelogram table movement

Pedestal-mounted switch controls

Center-mounted fence

Fine handwheel control

Infeed and outfeed tables have front-mounted handwheels for convenient table height adjustment

5" dust port

Serpentine belt and pulleys
