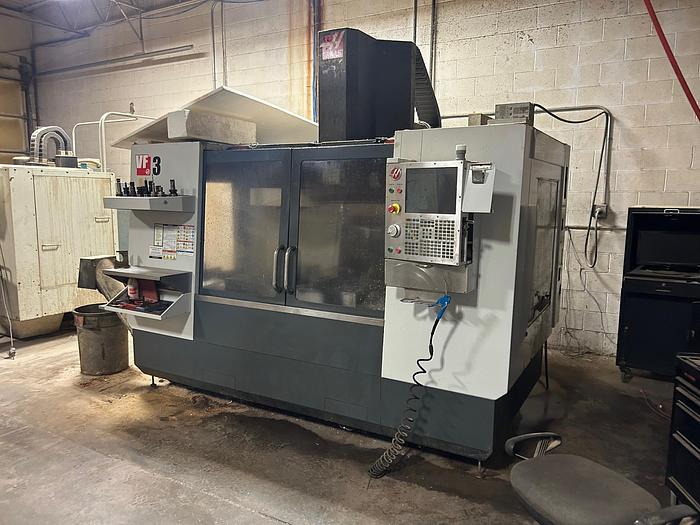

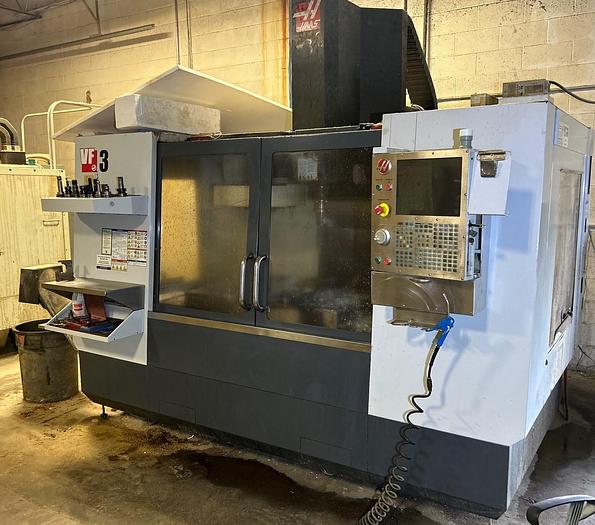

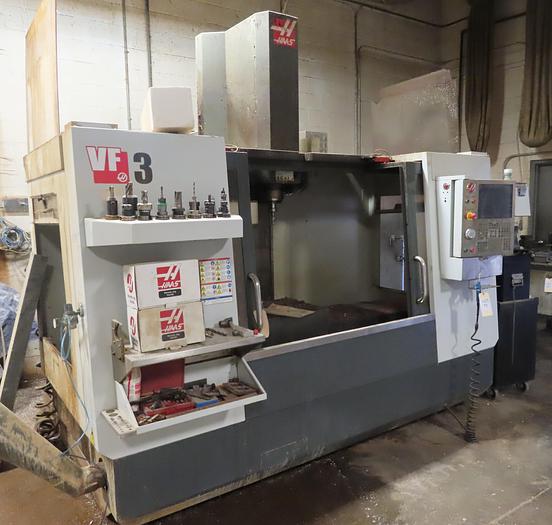

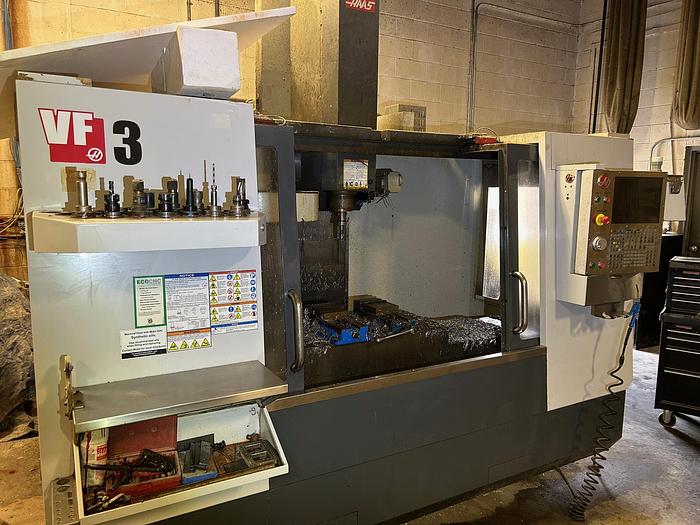

2011 Haas VF3 Vertical Machining Center

Haas VF3 Vertical Machining Center

Mfg: Haas

Model: VF3

YOM: 2011

Table Size 48″ X 18″

Maximum Table Load Capacity 3500 Lbs.

Spindle Nose to Table Top 4″ – 29″

X – Axis Travel: 40″

Y – Axis Travel: 20″

Z – Axis Travel: 25″

Spindle Nose CAT # 40

Main Motor 20 HP

Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM

Cutting Feedrate 650 IPM

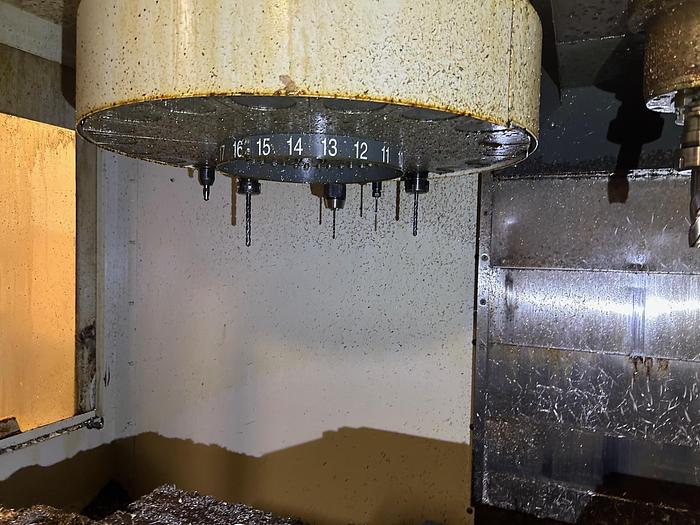

Tool Magazine 24 + 1 ATC

Maximum Tool Weight 12 LBS

Maximum Tool Diameter 3.5″

Machine Weight 12,500 LBS.

Equipped with

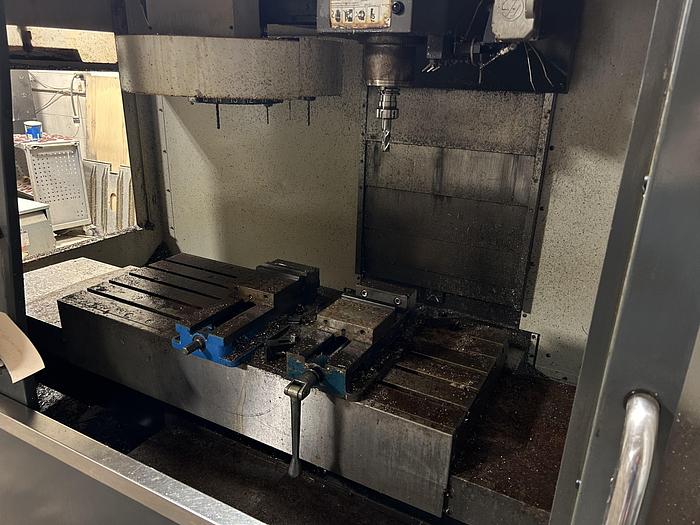

Includes: Kurt Anglock Model: D688 Vise & GS Tooling Vise

Machine Cut Aluminum only

Chip Auger with Chip Chute

Rigid Tapping

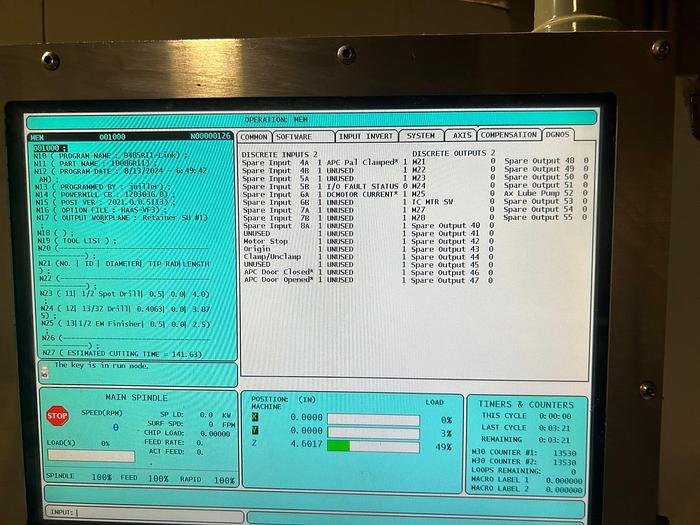

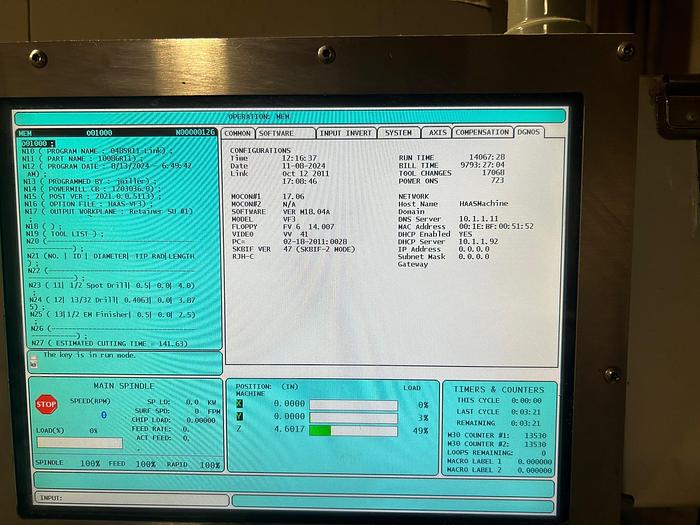

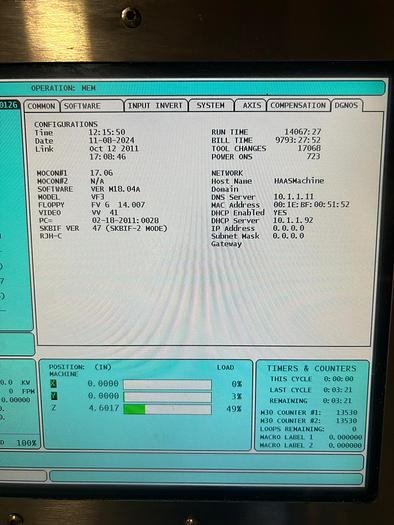

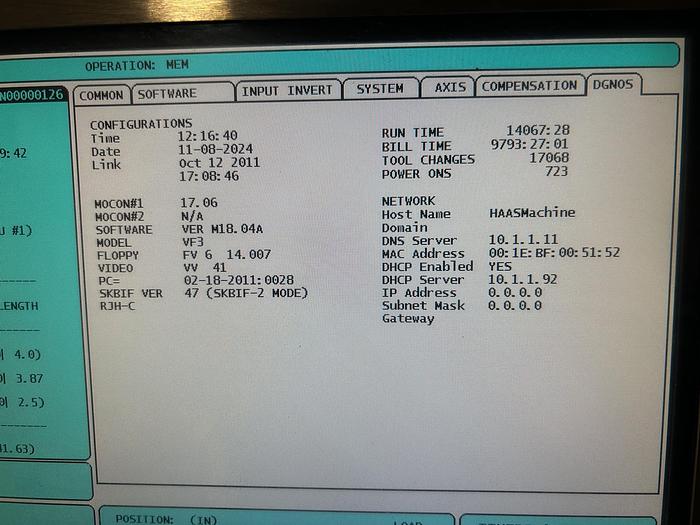

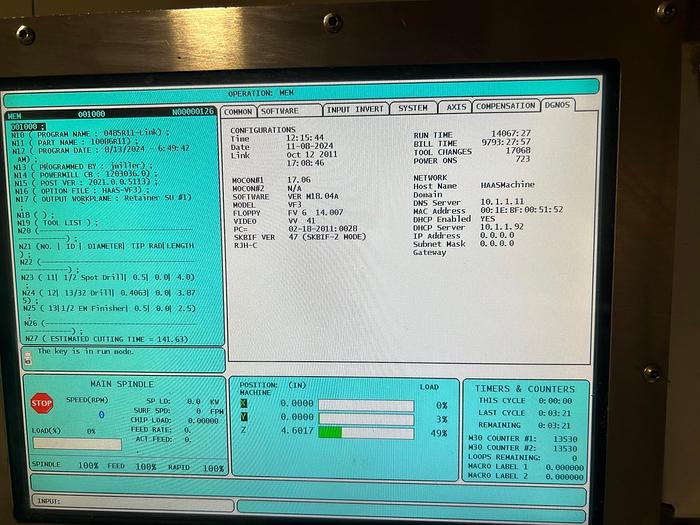

Run Time: 14,067, Bill Time: 9793

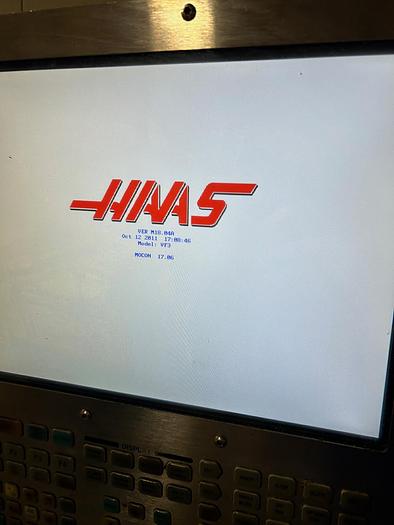

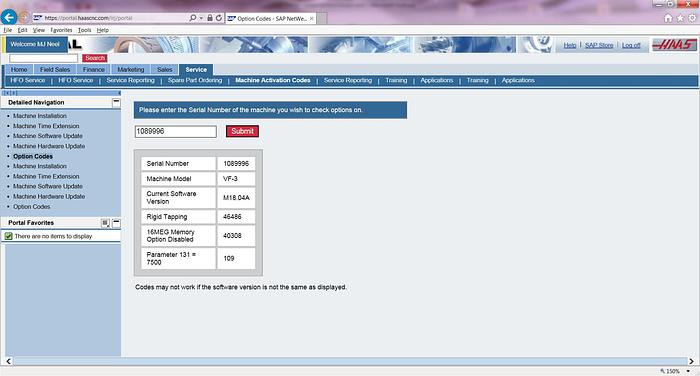

Current Software: M18.04A

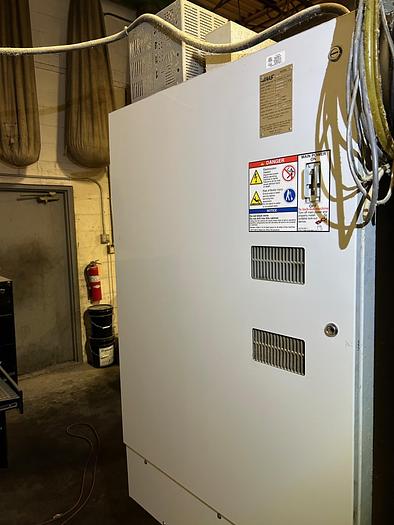

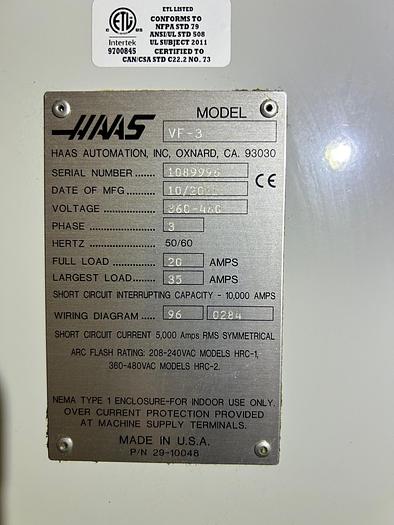

Electrics: Voltage: 360-480V / Phase 3 / 50/60 Hertz
