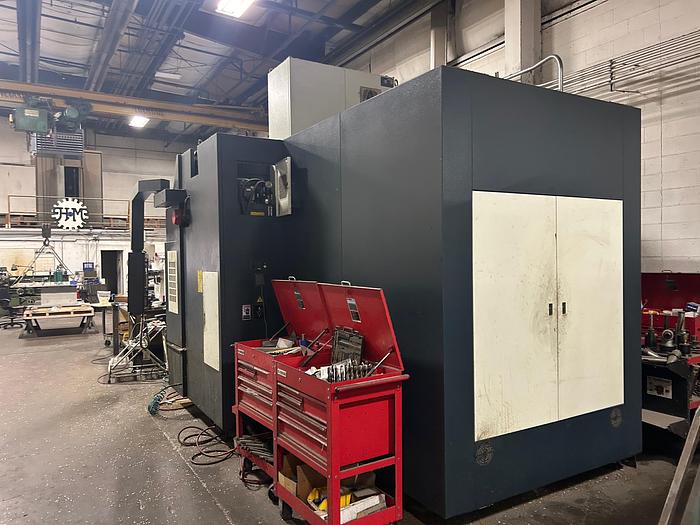

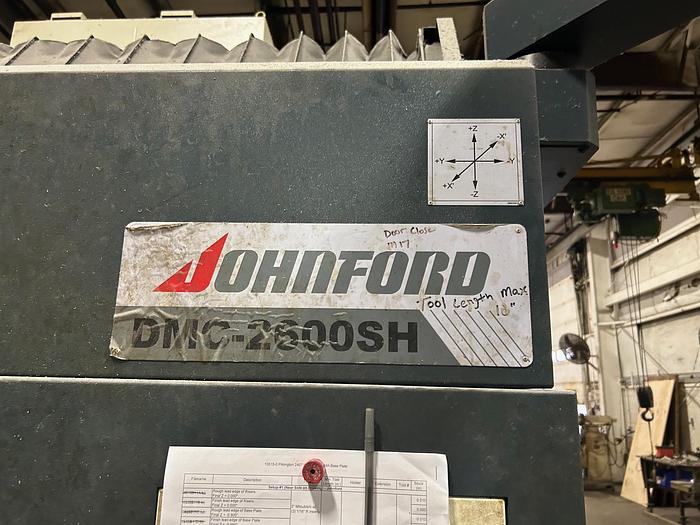

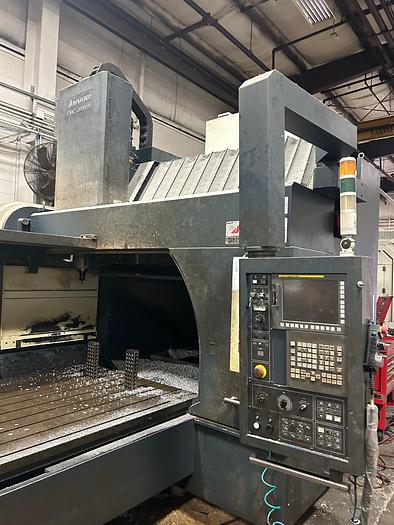

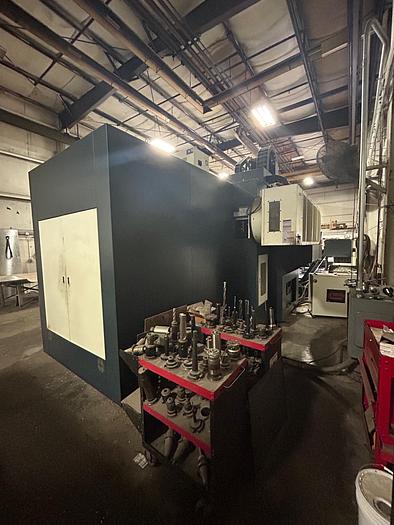

2017 Johnford DMC-2600SH Double Column Bridge Mill Machining Center

Johnford DMC-2600SH CNC Double Column Bridge Type Vertical Machining Center

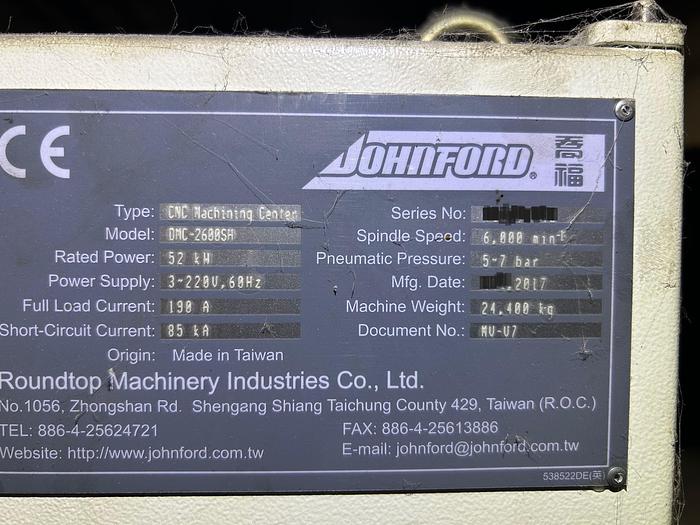

Mfg: Johnford

Model: DMC-2600 SH

YOM: 2017

Travels:

Longitudinal Travel X-Axis: 102"

Cross Travel Y-Axis: 70"

Vertical Travel: Z-Axis: 31.5"

Table to Spindle: 5.9" Min / 37.4 Max.

Distance Between Columns: 72"

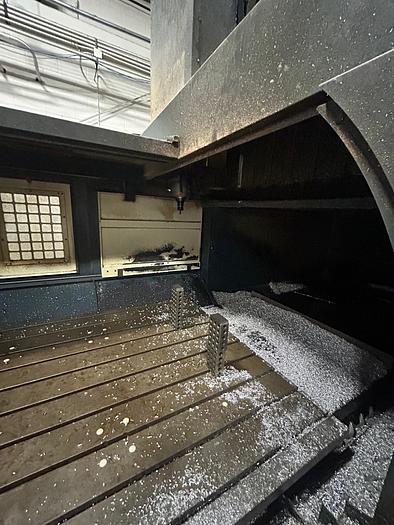

Table:

Table Work Surface: 106.2" x 59"

Max. Workload on Table: 22,000lbs.

Table Surface: Ground / T-Slotted (No. of T-Slots x width) 10 x 18mm

Spindle:

Spindle Motor: 35 HP

Spindle Torque: 575 ft/lbs. at only 375 RPM

Spindle Taper: ISO-50

Spindle Drive System: 2-Speed Gear Box

Spindle Speed: 0-6,000

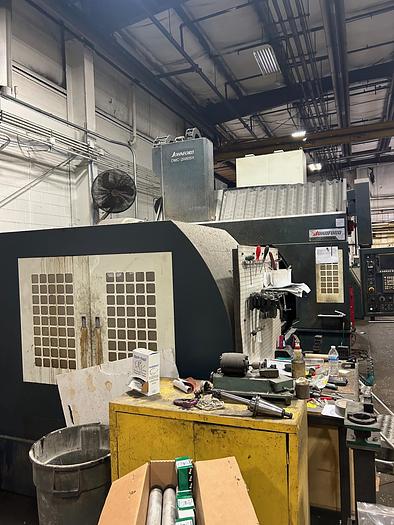

Automatic Tool Changer:

Number of Tools 40 tools (60, 80, 120 opt.)

Tool Selection Bi-directional-random

Tool Change Time 12 sec tool to tool

Maximum Tool Diameter 5.3" with adjacent tools, 7.8” without

Maximum Tool Weight 33 LBS

Tool Type CAT-50 (BT-50 opt)

Maximum Tool Length

Ballscrews & Axis Motors

Ballscrews and Axis Motors

X-Y-Z Ballscrew Diameter: 2.5” X, 2.5” Y, 1.97”Z x 10 pitch

Ballscrew Type: Class 3 double nut pre-loaded

Ballscrew Mounting Type: Pre-tensioned

X-Y-Z Servo Motor HP: 9.0 - 9.0 – 9.0HP

Servo Motor Mounting: Direct coupled XYZ

Feeds

Rapid Traverse Rate X,Y,Z 472 IPM

Cutting Feed Rate 0.01 - 394 IPM

Positioning Accuracy +/- .0003" full stroke

Repeatability +/- .0002"

General

Coolant Tank Capacity 120 gallons

Machine Weight (base machine only) 68,640 LBS

Floor Space 275" X 150" x 157.5"

Machine Power Source 208/220 Volts, 3 Phase 225 Amps**

Air Source 90 PSI

Standard Machine Accessories

Flood Coolant System with programmable air blast

Air blast for spindle

Auto Lubrication with Alarm

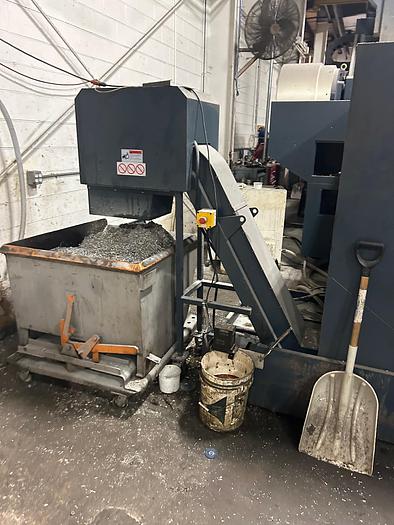

Automated chip removal system with chip conveyors

Halogen work lamp

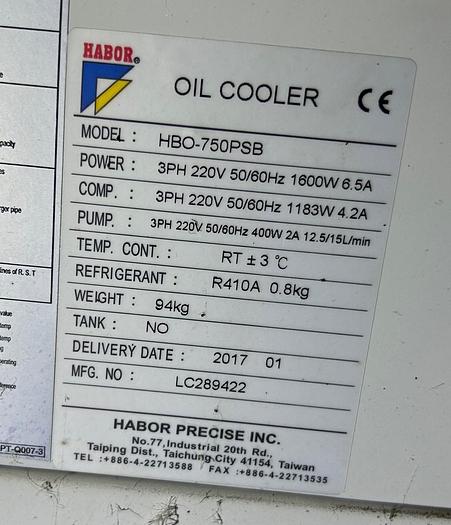

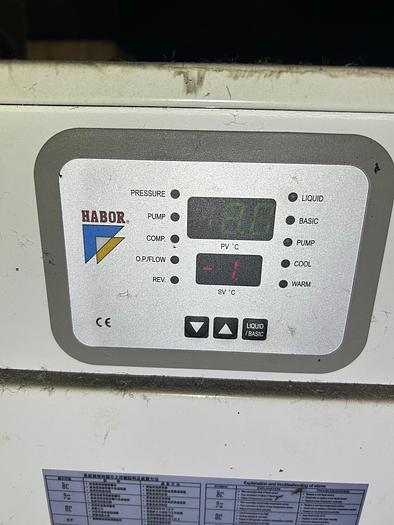

2 speed geared head with spindle / headstock cooler

Remote Handwheel

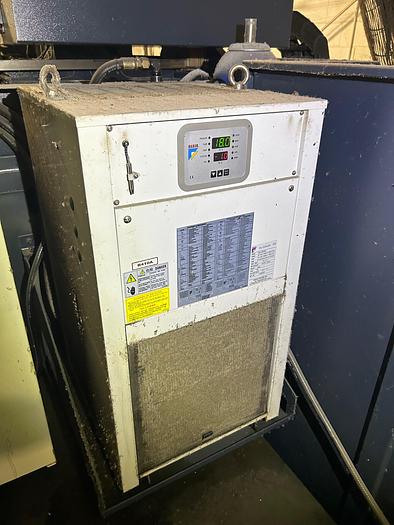

Heat exchangers for control cabinets

Hydraulic counterbalance for headstock

Rigid Tapping

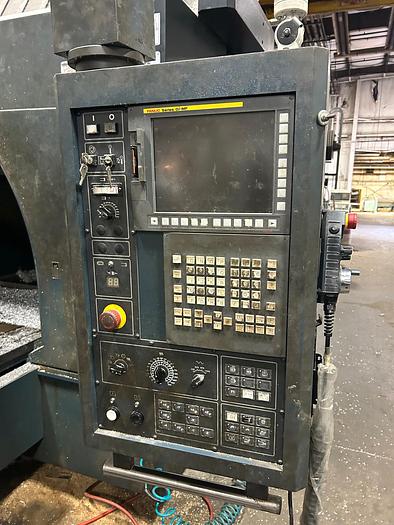

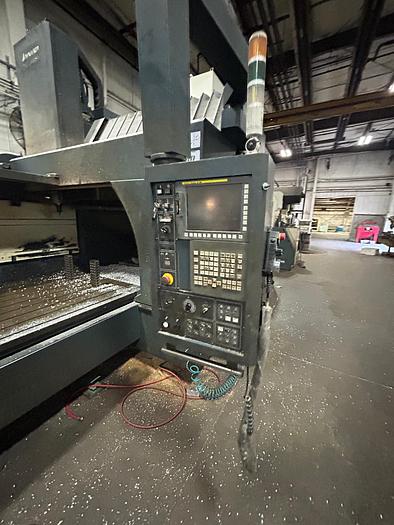

Control Specs:

Fanuc OiM-D Conversational Control

10.4” color LCD screen

Color graphics

Fanuc Manual Guide i full conversational

programming

Alpha i AC digital servo system with 1,000,000

Machine has low hours and only cut Aluminum

***All Specifications Subject to Buyer's Verification***

Call for Details
