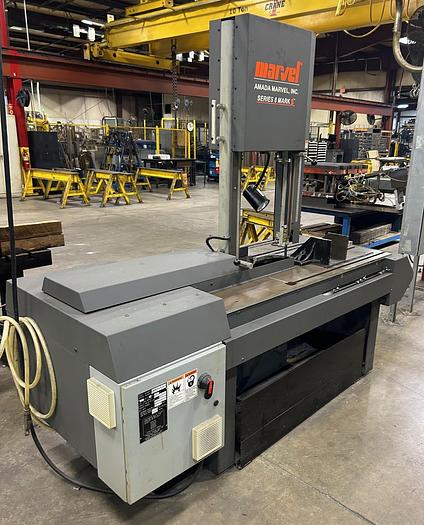

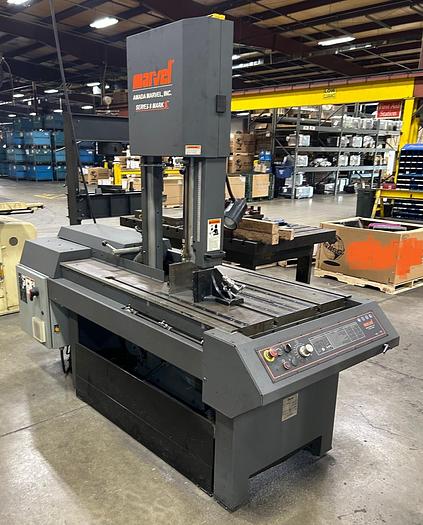

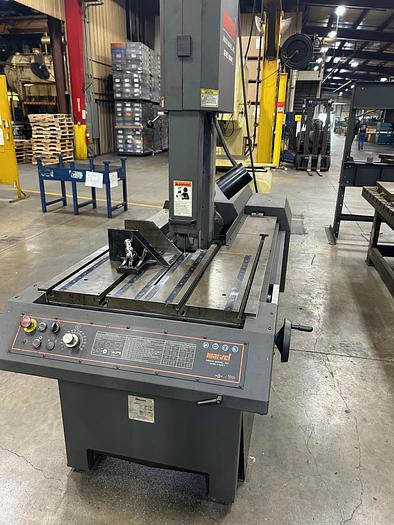

2020 Marvel (Amada) Series 8 Mark II-V Vertical Band Saw

2020 Marvel (Amada) Series 8 Mark II-V Vertical Band Saw

Mfg: Marvel/Amada

Model: Series 8-Mark-II-V

YOM: March 13 2020

Blade: 14 ft 6 in long, 1 in wide, and 0.035 in thick

Capacity: 18 in x 22 in at 90°, 18 in x 12.75 in at 45°

Table height: 34.5 in

Vise: 21 in max opening, 6 in high

Column tilt: 45° left and right

Speed range: 50–450 fpm

Feed range: 0–140 lbs

Work area: 24 in x 33 in

Main motor: 2 HP, 1800 RPM

Coolant pump motor: 1/8 HP, 3600 RPM

Overall dimensions: 79 in x 90 in, 84.5 in high

Weight: 2,870 lbs

Power: 208V, 240V, 480V, or 575V, 3ph, 60Hz

Air: 5 cfm, 80 psi min

Reservoir capacity: 20 gal

Tee slots: 4 (3/4 in)

All Specifications Subject to Buyer’s Verification
