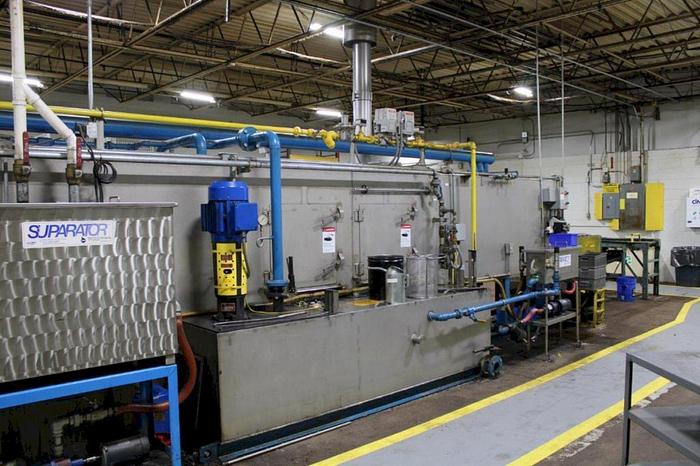

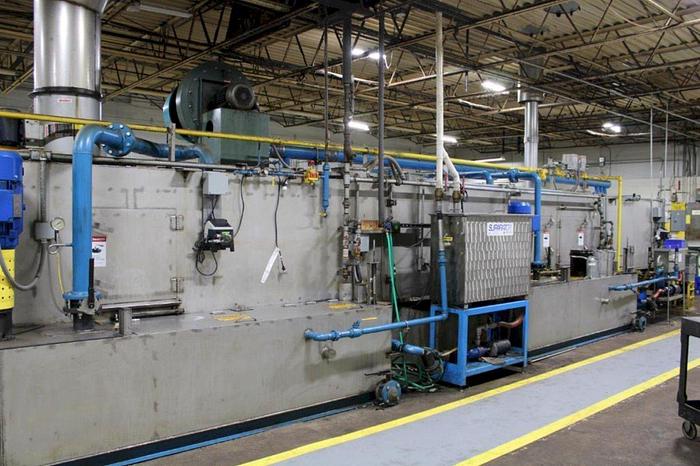

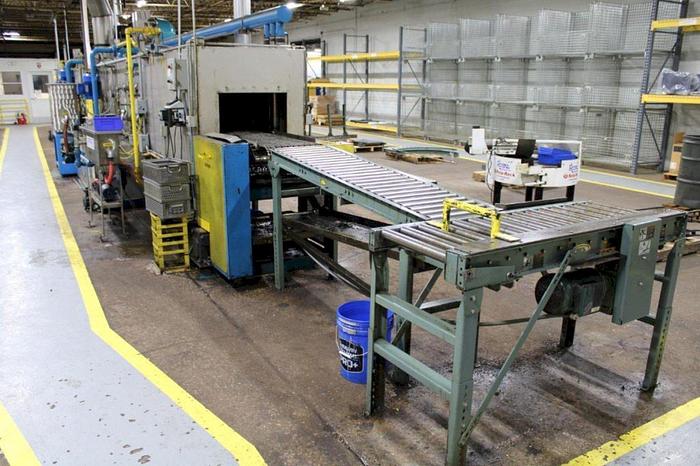

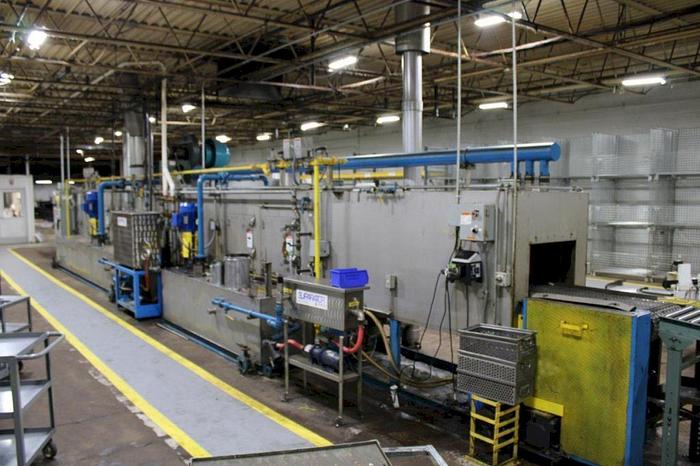

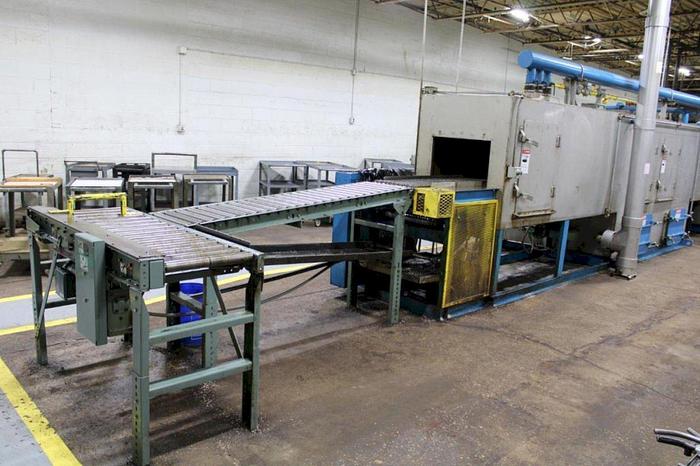

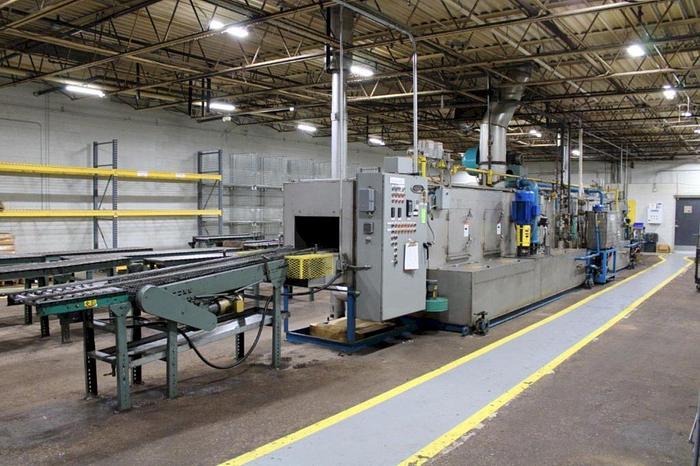

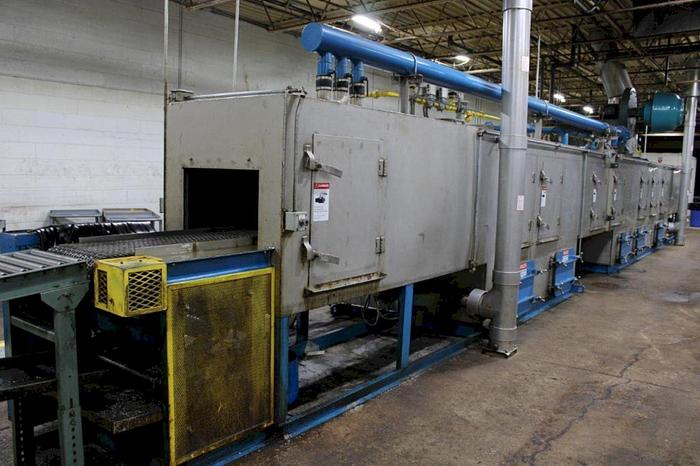

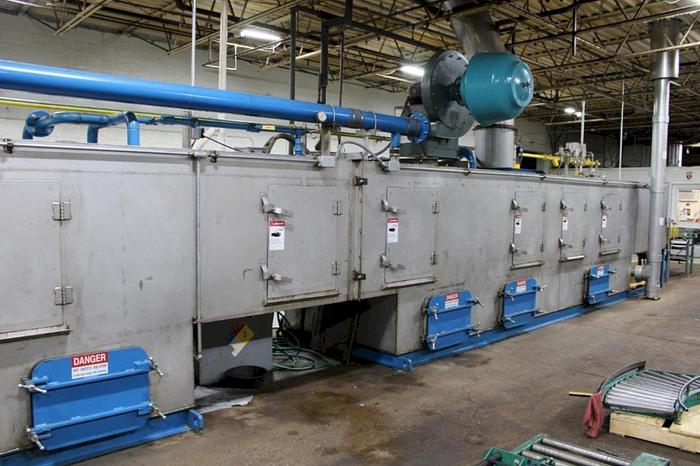

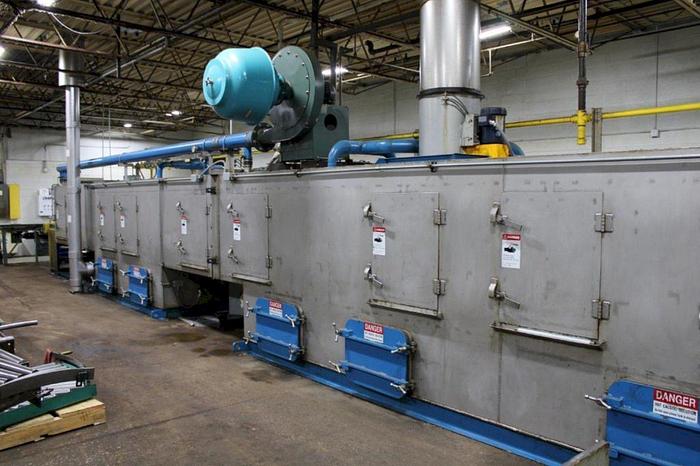

4-Stage Continental Equipment Corp Gas Heat Stainless Steel Conveyor Washer w/ 18" X 15" H Opening

4-Stage Continental Equipment Corp Gas Heat Stainless Steel Conveyor Washer w/ 18" X 15" H Opening

Mfg: Continental Equipment Corp

Yom: 2010

Specifications:

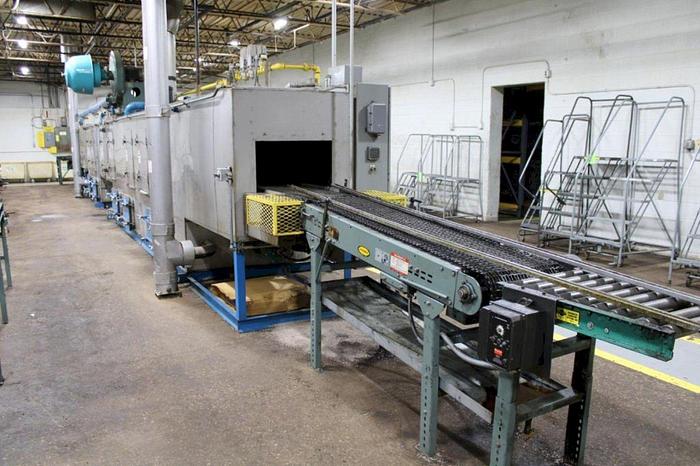

BELT WIDTH 18"

WORK OPENING 15" HIGH

BELT SPEED 2 TO 8 FPM, VARIABLE SPEED

BELT CAPACITY 60 LBS / FT

LOAD HEIGHT 3'6"

CHIP BASKETS 6

CONTROL 7 DAY TIMER

4-STAGE WASH, PRE RINSE, RINSE, BLOW OFF

 (DATA AT 6 FPM DESIGN SPEED)

==========================

WASH TEMP 150 DEGREES FARENHEIGHT

WASH TIME 120 SECONDS

WASH TANK 1,000 GALLON

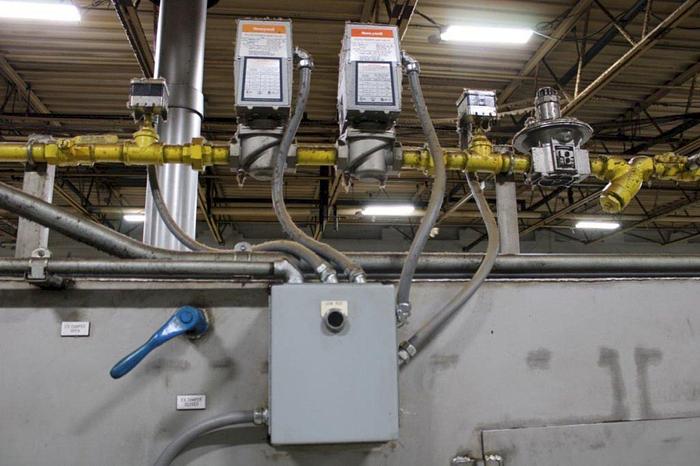

WASH HEAT 830,000 BTU / HR

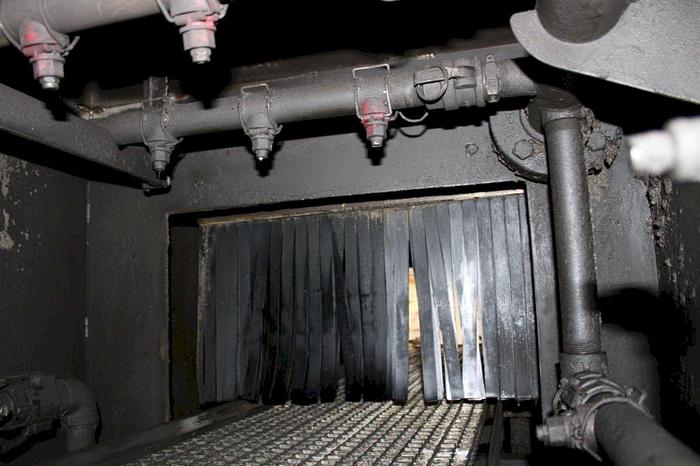

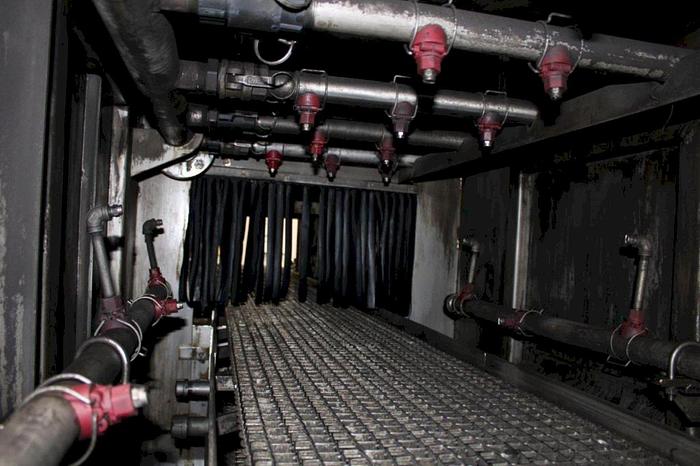

WASH NOZZLES 90 @4.0 GPM

WASH PUMP MOTOR 20 HP

==========================

PRE RINSE TEMP 150 DEGREES FARENHEIGHT

PRE RINSE TIME 5 SECONDS

PRE RINSE NOZZLES 3 @ 0.87 GPM

==========================

RINSE TEMP 150 DEGREES FARENHEIGHT

RINSE TIME 60 SECONDS

RINSE TANK 500 GALLON

RINSE HEAT 440,000 BTU / HR

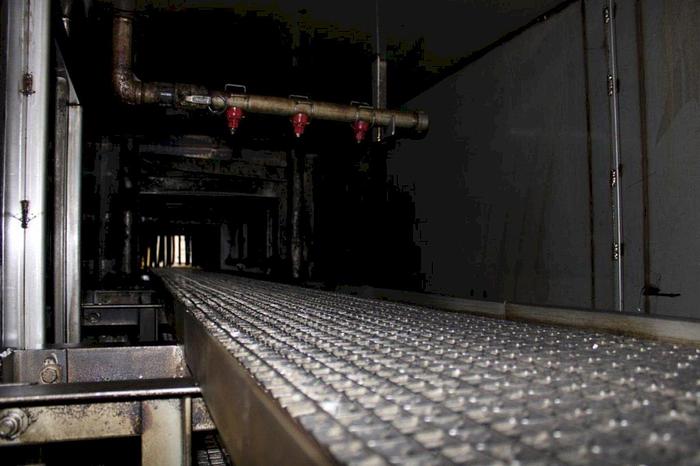

RINSE NOZZLES 48 @ 3.5 GPM

RINSE PUMP MOTOR 7.5 HP

===========================

BLOW OFF TEMPERATURE AMBIENT

BLOW OFF TIME 30 SECONDS

BLOW OFF FAN 600 CFM

BLOW OFF MOTOR 7.5 HP

BLOW OFF KNIVE AFTER WASH 1 TOP

BLOW OFF EXIT KNIVES 2 TOP & 1 BOTTOM

============================

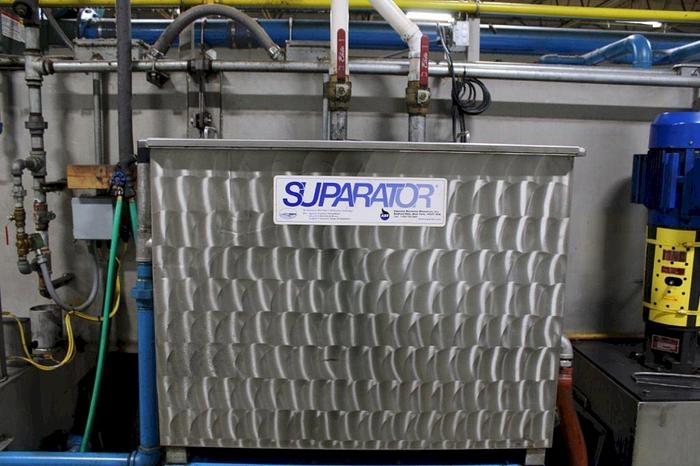

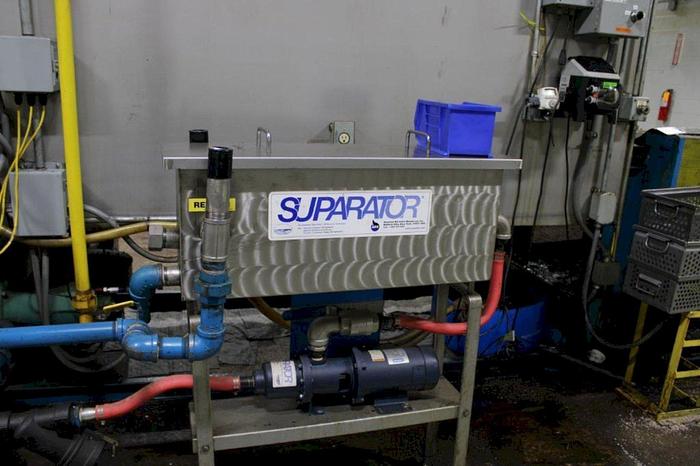

OIL SEPERATOR #1 - SUPERATOR #86-320-005C

OIL SEPERATOR #2 - SUPERATOR #89/050

============================

EXHAUST FAN 1.5 HP

============================

POWER 73 FLA

============================

STAINLESS MATERIALS:

TANK, HOUSING, CHIP BASKETS, IMMERSION TUBE, INTERIOR PIPING, SPRAY PIPES, SPRAY NOZZLES,

DRAIN VALVES, CONVEYOR, CONVEYOR TRACK, INTERIOR BLOW OFF DUCT, AIR KNIVES

============================

PAINTED CARBON STEEL - WASHER EXTERIOR
