Advanced Vacuum Systems, Model: SH-9  SinterHIP Furnace

Manufacturer: Advanced Vacuum Systems

Type: Sinterhip

Model: SH 9

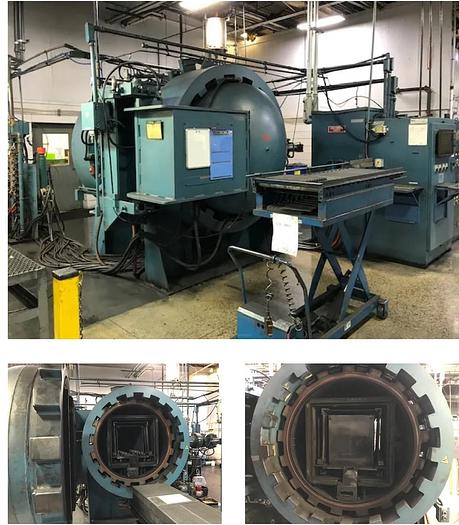

Load Area: 20” wide x 18 high x 42” Deep

Heating Elements: Graphite

Heat Shields: Graphite

Debind: Drop-out pot / Condenser

Load Size: 475 kG

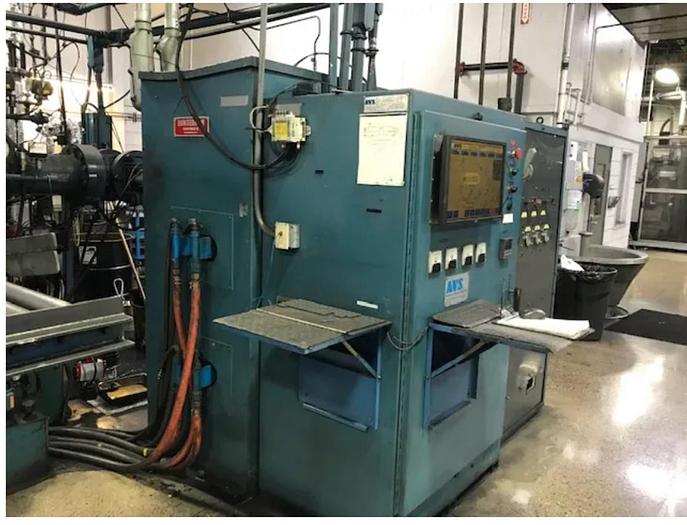

Controls:

PLC: GE 90/30

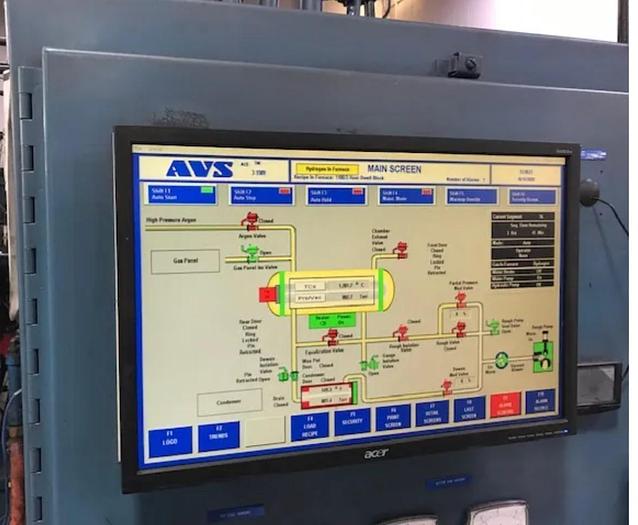

HMI: WonderWare

Maximum Temp: 1600°C (vacuum) 1450 C (pressure)

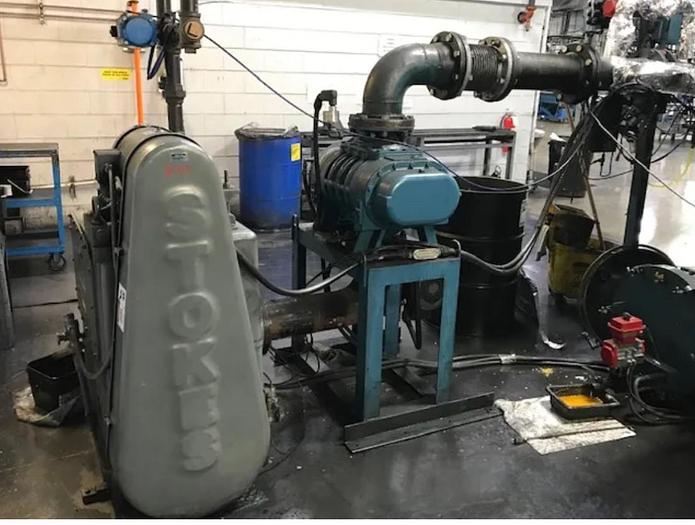

Roughing Pump: 300 CFM

Vacuum Booster: 1300 CFM

Pos. Pressure: 900 PSI (60 Bar)

Backfill Gas: Inert

Electrical:

Source Voltage: 480V / 3-Phase / 60Hz

Total Connected Load: 350 kW

Water:

GPM / PSIG: 70/45
