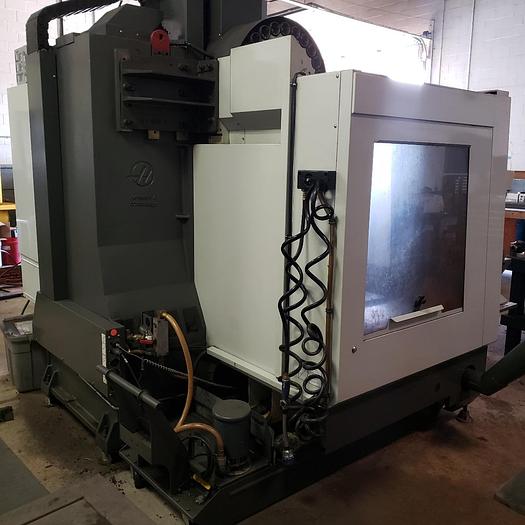

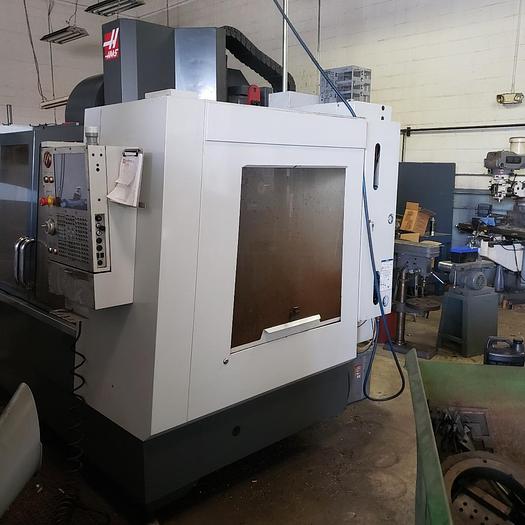

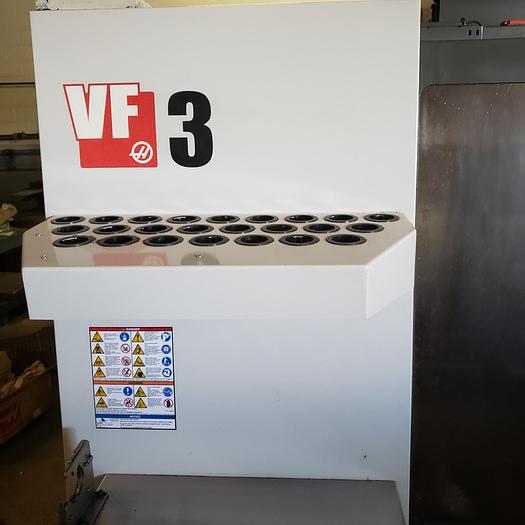

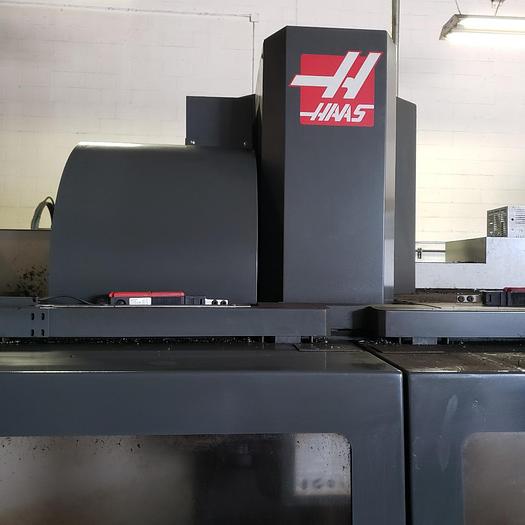

2013 HAAS VF-3 CNC VERTICAL MACHINING CENTER

2013 HAAS VF-3 CNC VERTICAL MACHINING CENTER

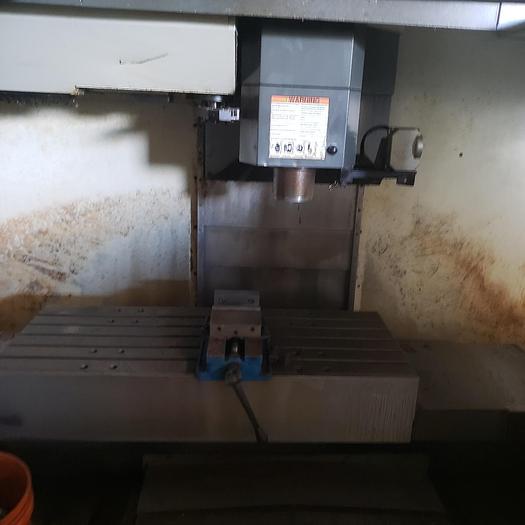

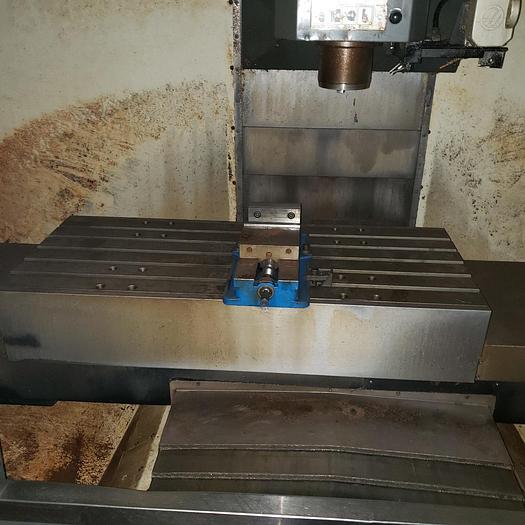

Table Size 48″ X 18″

Maximum Table Load Capacity 3500 Lbs.

Spindle Nose to Table Top 4″ – 29″

X – Axis Travel: 40″

Y – Axis Travel: 20″

Z – Axis Travel: 25″

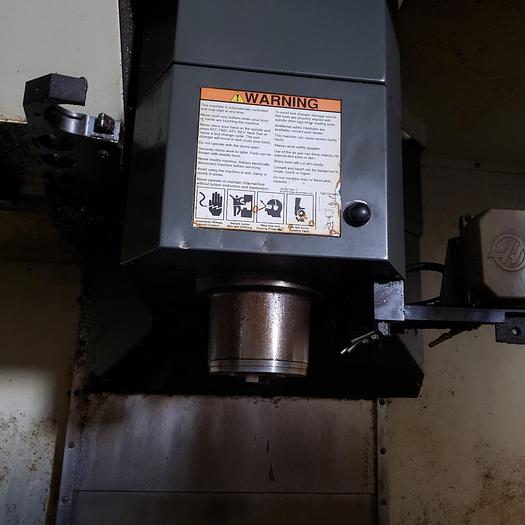

Spindle Nose CAT # 40

Spindle Speed 15,000 RPM

Main Motor 20 HP

Rapid Traverse Rate X, Y, Z 1000, 1000, 1000 IPM

Cutting Feedrate 650 IPM

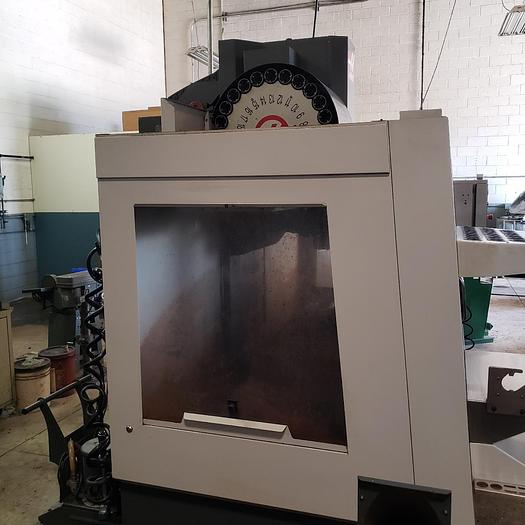

Tool Magazine 24 + 1 ATC

Maximum Tool Weight 12 LBS

Maximum Tool Diameter 3.5″

Machine Weight 12,500 LBS.

Equipped with

1MB MEMORY

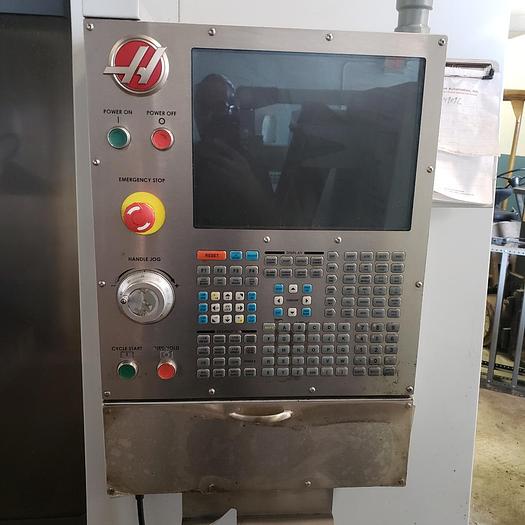

HAAS CNC 32-BIT CONTROL

HAAS INTUITIVE PROGRAMMING SYSTEM

HIGH SPEED MACHINING

MACROS

RIGID TAPPING

CHIP AUGER WITH CHIP CHUTE

NEW X & Y AXIS BEARINGS INSTALLED LAST YEAR.

LUBE SYSTEM HAS ALSO BEEN UPGRADED TO OIL

ALL AVAILABLE MANUALS INCLUDED
