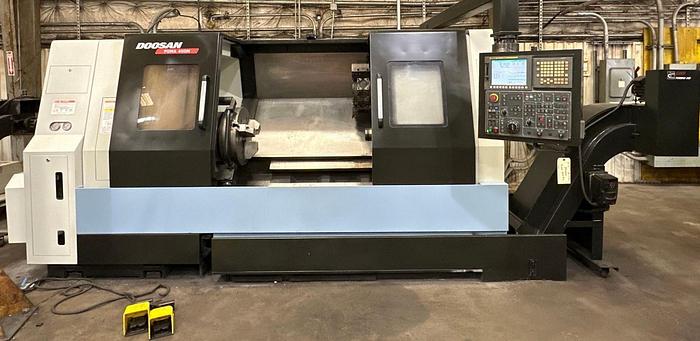

DOOSAN PUMA 400MC CNC LATHE

2012 DOOSAN PUMA 400MC CNC LATHE

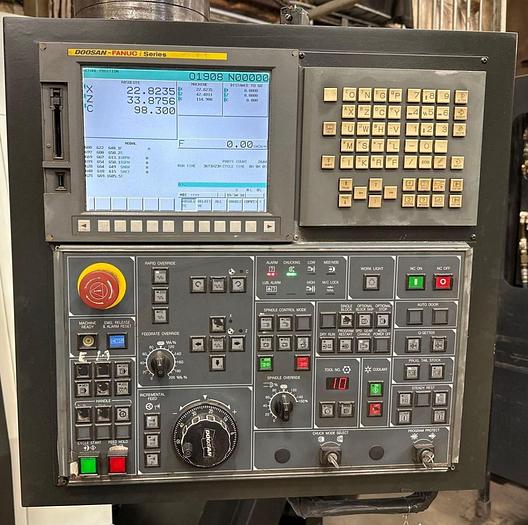

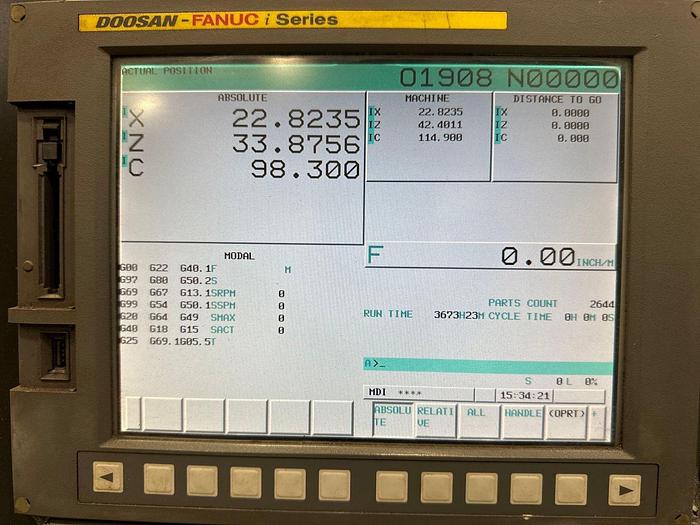

Fanuc i Series Control

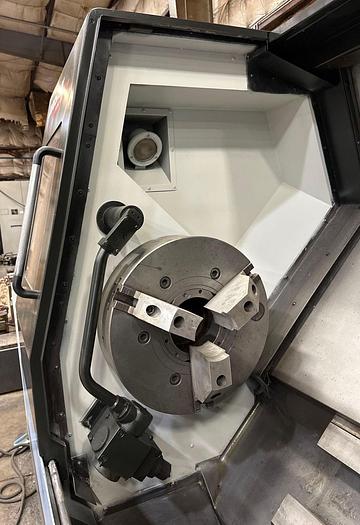

21" Samchully 3-Jaw Chuck

1,500 rpm A1-15 Spindle 2-Speed Gearbox

7.1" Through Hole

6.5" Bar Capacity

30.3" Swing Over Bed

23.2" Swing Over Saddle

22" Max Turning Diameter

38.5" Max Turning Length

14.1" X-Axis Travels

43.5" Z-Axis Travels

360° C-Axis (Live Tooling)

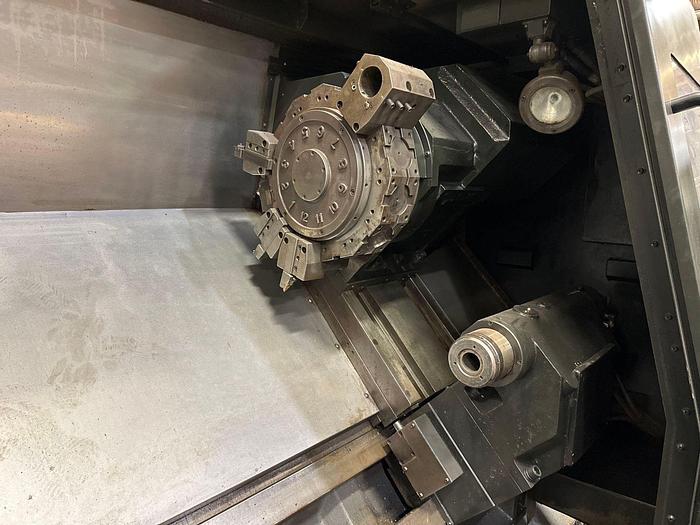

12 Station BMT 75 Live Tooling Turret

Tool Pre-Setter

Rapid Traverse X- 629 ipm, Z- 708 ipm

Programmable Hydraulic Tailstock MT#6 / Quill Diameter 4.7"

 EQUIPPED WITH:

10.4" Color Display

Ethernet

64 Pairs Tool Offset

Work light

Foot Switch

Chip Conveyor,

74 Gallon Coolant Tank

50 HP Motor

All Available Tool Holders

All Specifications Are Subject to Buyers Verification
