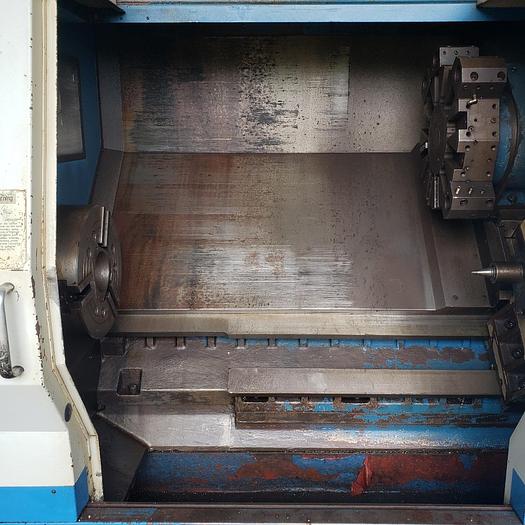

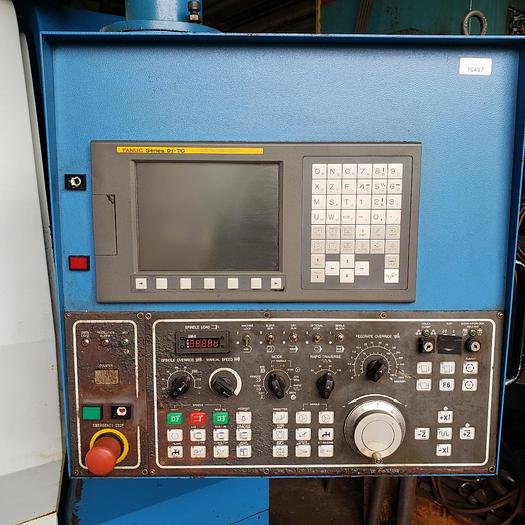

FEMCO HL-55S CNC LATHE

2005 FEMCO HL-55S CNC LATHE

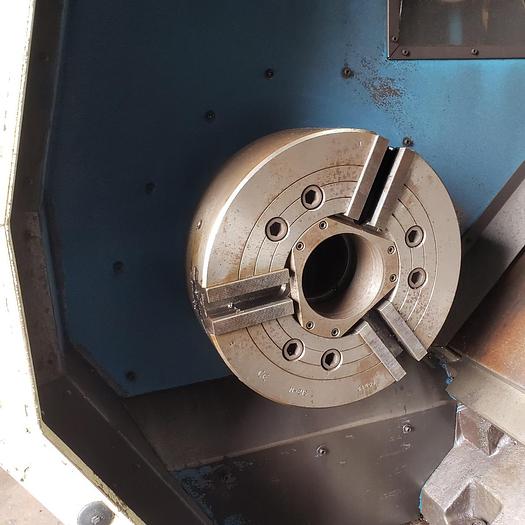

15" 3 -Jaw Chuck

Max Turning Diameter: 25.4″

Max Turning Length: 42.12″

Max Bar Capacity: 4.65″

Swing Over Bed: 28.4″

Distance Between Centers: 46.4″

Travel X Axis Travel: 13.4″

Travel Z Axis Travel: 47.6″

Rapid Traverse X Axis: 472 IPM

Rapid Traverse Z Axis: 591 IPM

Spindle Nose: A2-11

Spindle Bore: 5.2″

Spindle Speed: 25-2500 RPM

Spindle Motor: 35 HP

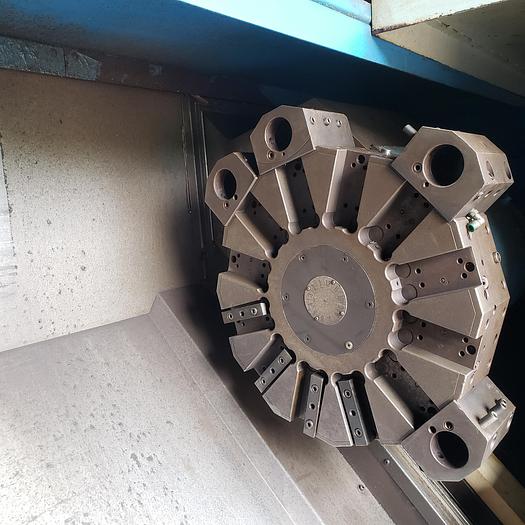

Turret Capacity: 12 Stations

Turret Index Time: 1 Second

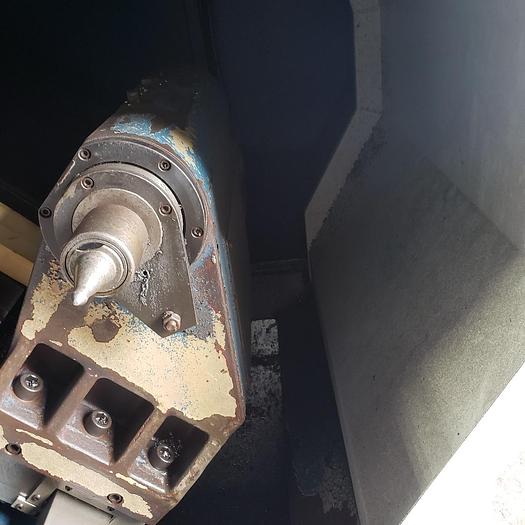

Tailstock Body Travel: 14.3″

Tailstock Quill Dia.: 3.54″

Tailstock Quill Stroke: 4.72″

Tailstock Taper: MT-5

Power Source: AC 220 V, Three Phase, 60 Hz

Power Requirement: 68 Amps

All Specifications are Subject to Buyer's Verification
