Ingersoll MasterMill 5-Axis Single Head, Vertical Spindle, Adjustable Rail, MasterMill Machining Center

Ingersoll MasterMill is a 5-Axis Single Head, Vertical Spindle, Adjustable Rail, MasterMill Machining Center, Includes a Tool Changer, SU Changer, & Pallet Changer Systems

MFG: Ingersoll

Model: MasterMill

YOM: 1996 with 2014 Upgrade

 Machine Capacity:

Width Btwn Column Way Covers: 118.1”

Height From Pallet to To Ram Face: 108.3”

Pallet Width: 98.4”

Pallet Length: 157.5”

 Axis Travels

X-Axis– 236.2”

Y-Axis- 157.5”

Z-Axis– 39.4”

W-Axis– 59.0”

B-Axis360* Degree Continuous & Reversible Rotation

C-Axis- +/- 180* Degree

Axes Feedrates

X-Axis Feedrate 0-236 (IPM) Traverse 590.55 (IPM)

Y-Axis Feedrate 0-236 (IPM) Traverse 590.55 (IPM)

Z-Axis Feedrate 0-236 (IPM) Traverse 393.7 (IPM)

W-Axis Feedrate 0-118 (IPM) Traverse 157.48 (IPM)

 B-Axis Feedrate 0-4 RPM Traverse 6 RPM

C-Axis Feedrate 0-8 RPM) Traverse 10 RPM Cont. 360* DEG

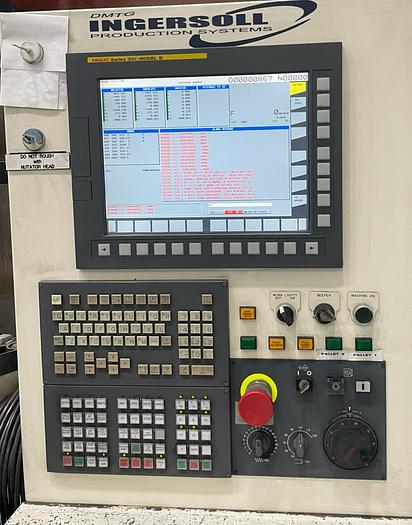

Fanuc 30i B Control

All Specifications Subject to Buyer's Verification
