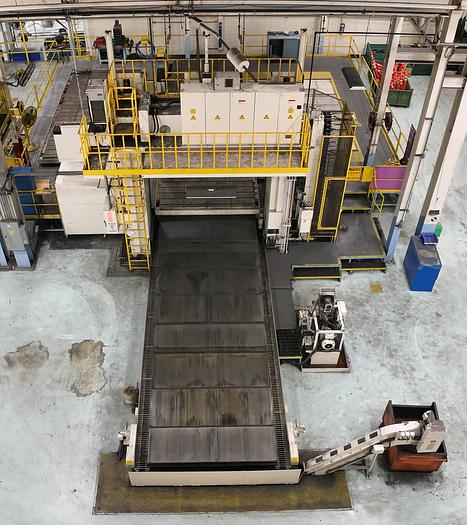

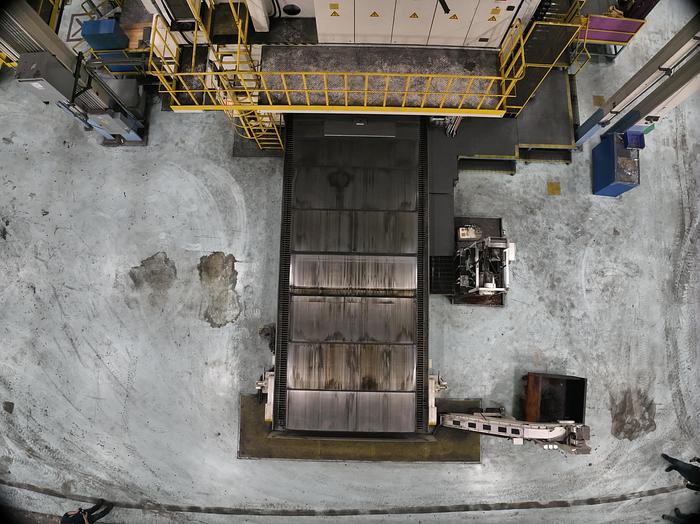

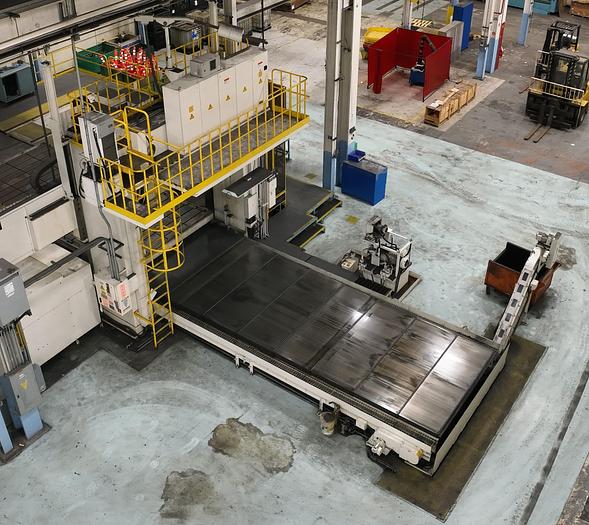

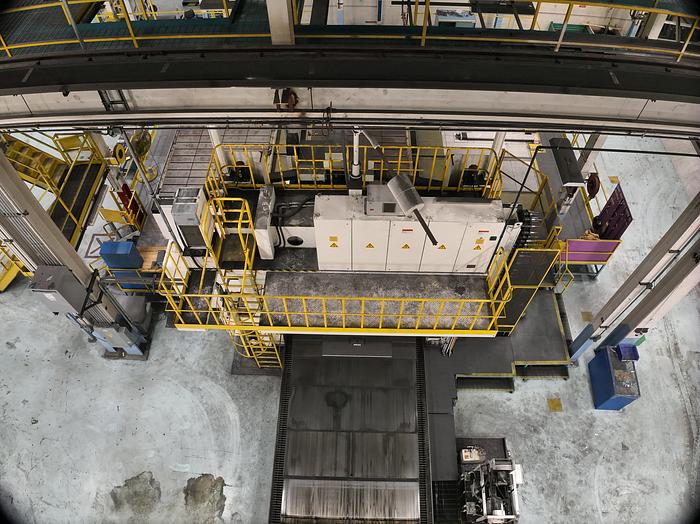

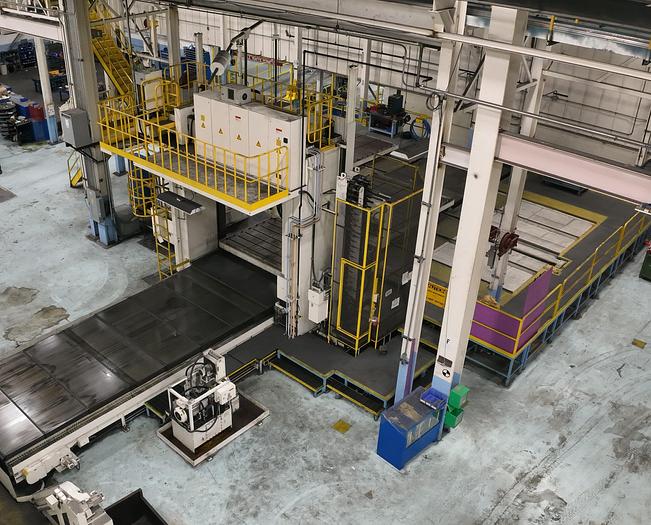

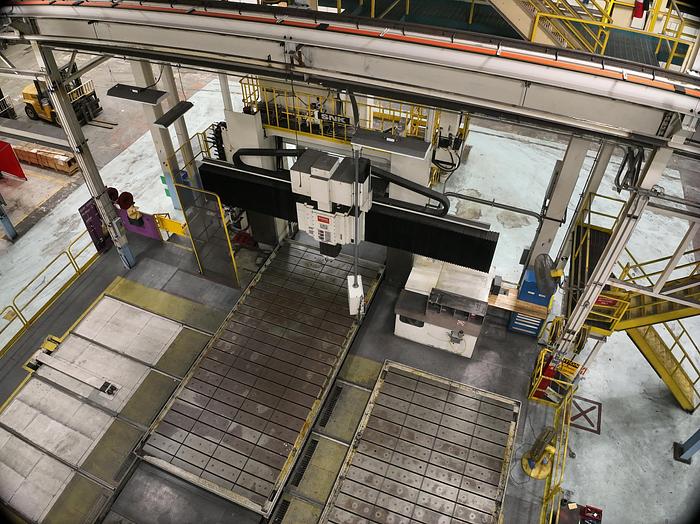

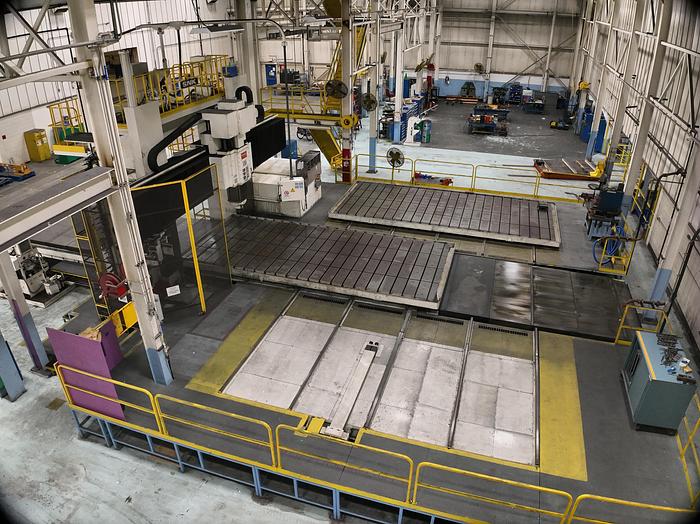

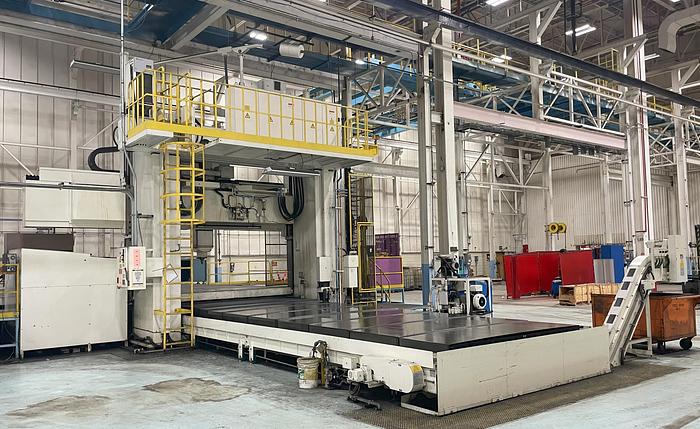

SNK Hi-Speed Milling Machine, Model: DC-6ASM

SNK Hi-Speed Milling Machine

Mfg: SNK

Model: DC-6ASM

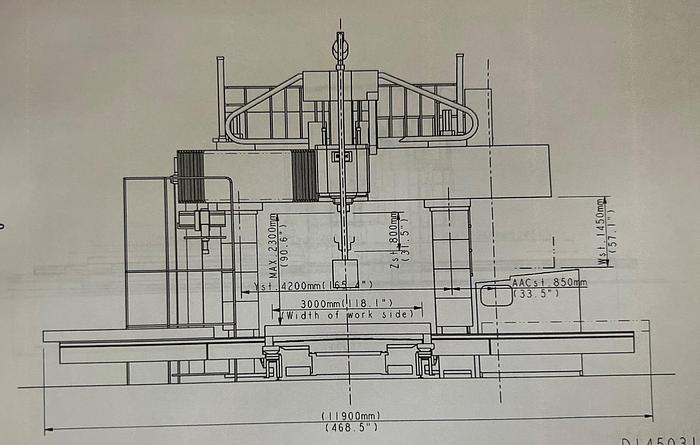

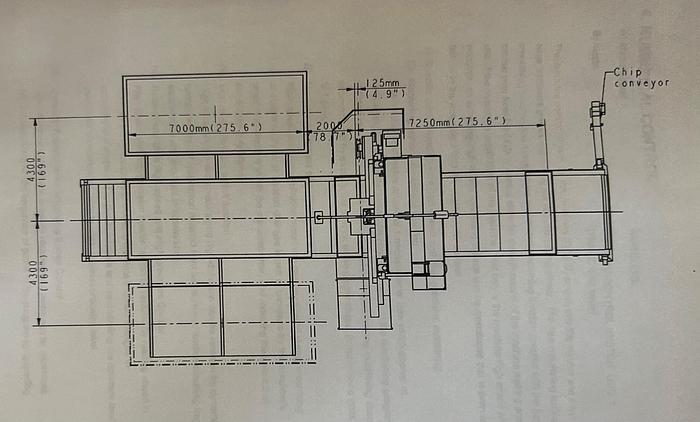

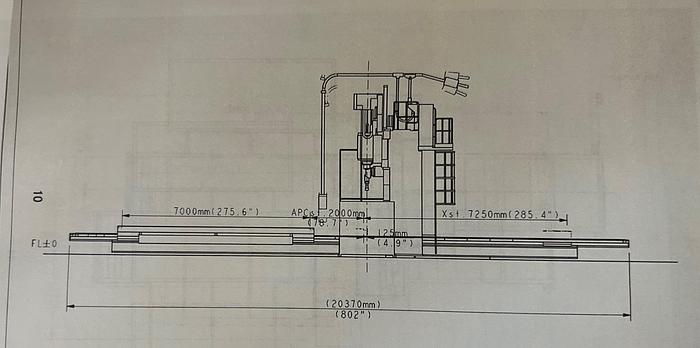

Capacity:Distance Btwn Columns: 137.7"Table Longitudinal (X): 285.4" + APC (78.7"Spindlehead Transverse (Y): 165.4" +AAC 33.5"Ram Vertical (Z): 33.5"Crossrail Vertical (W): 57.1"Distance from Pallet Top to Spindle End: 90.6"

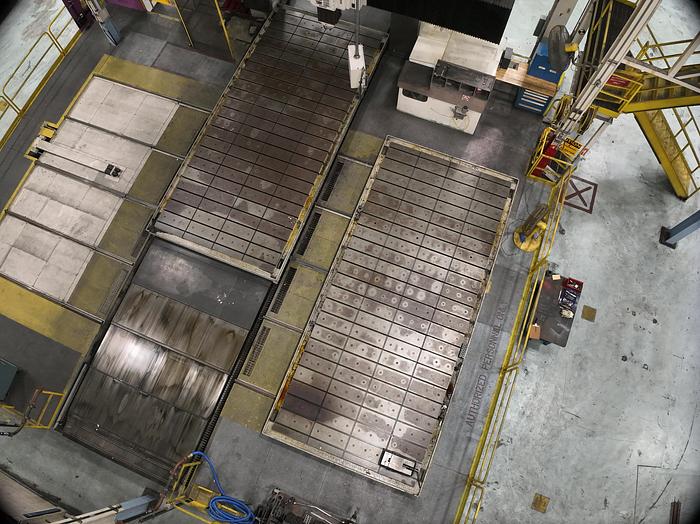

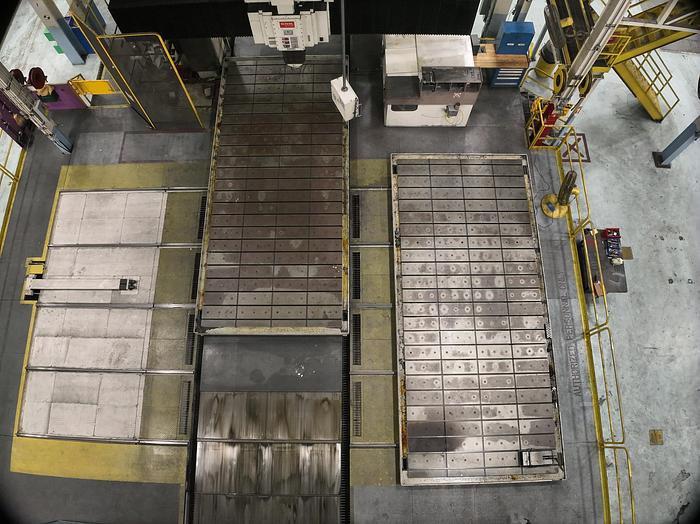

Pallet:Working Surface: 275.6" x 118.1"Workpiece Capacity: 77,160 lbs.Height from Machine Installed Face to Top of Pallet: 43.3"

Spindle:Speed: 10 to 4,000 RPMSpindle Nose: ISO No. 50 (Accepts CAT 50)Bearing Inner Diameter: 4.72"

Feedrates:X, Y-Axis: 787.3 IPMZ-Axis: 472.4 IPMW-Axis: 118.1 IPM (For Positioning)Cutting Feed (X,Y,Z-Axis) 1-590.5" IPM

CNC System:DCS-V (Fanuc 300i Base)
