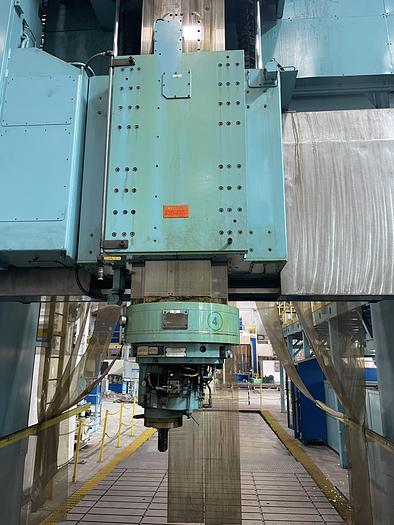

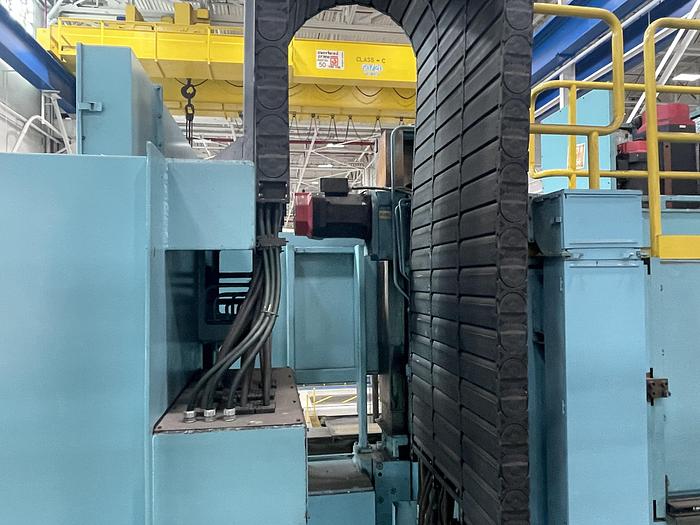

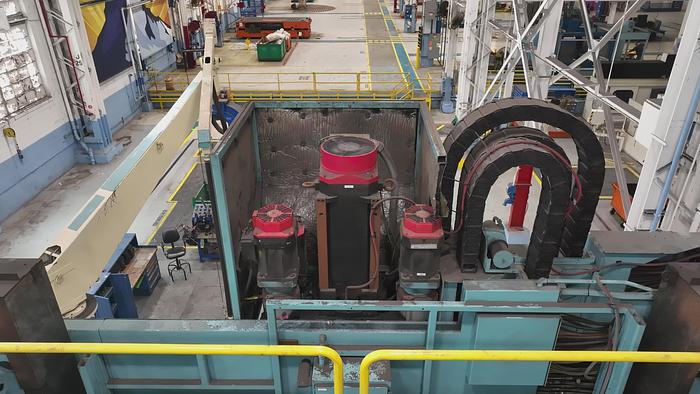

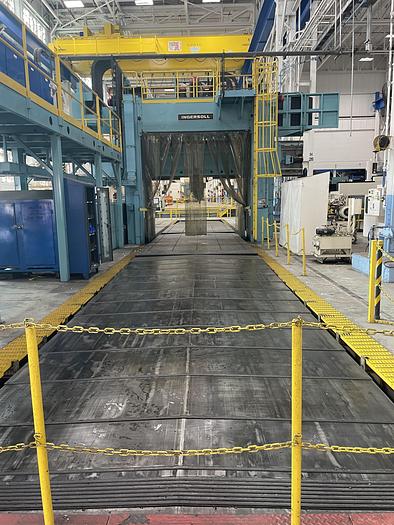

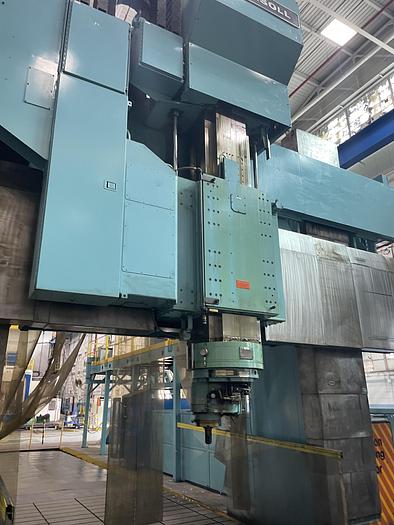

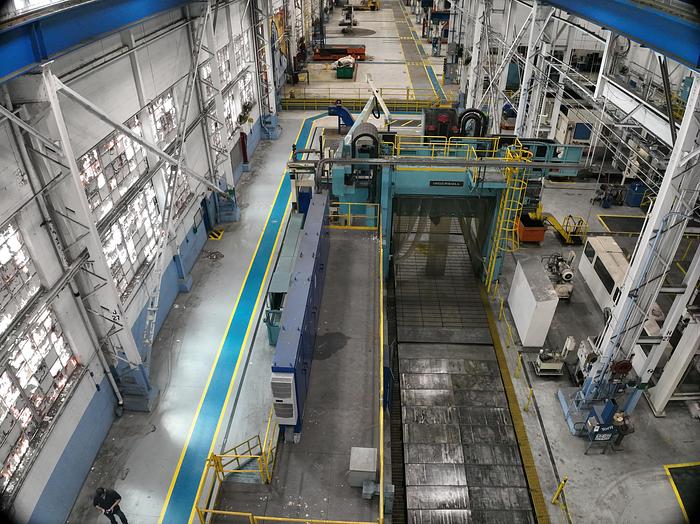

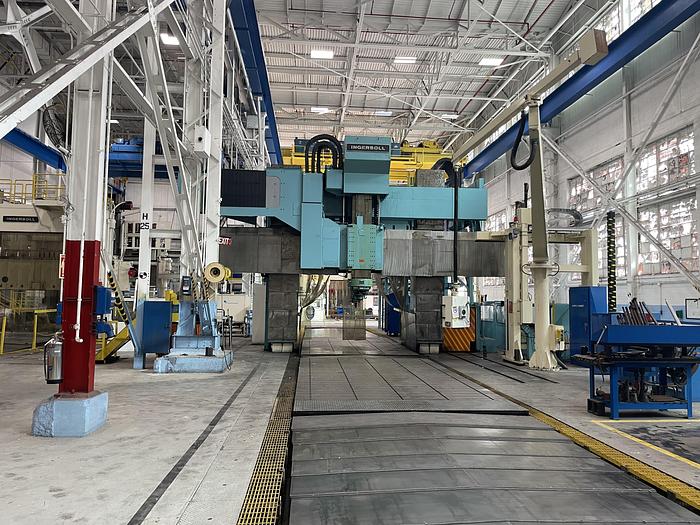

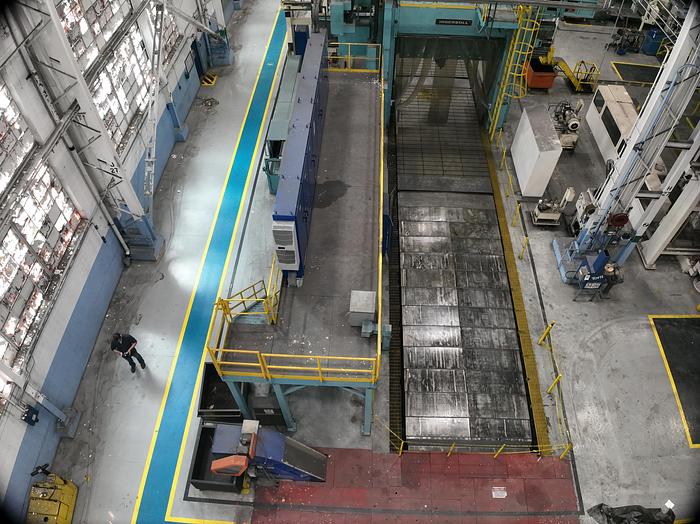

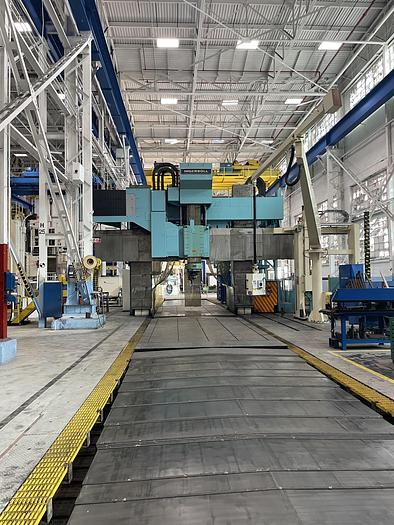

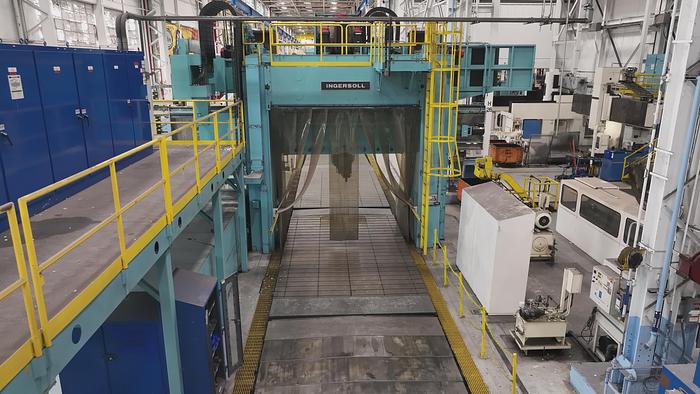

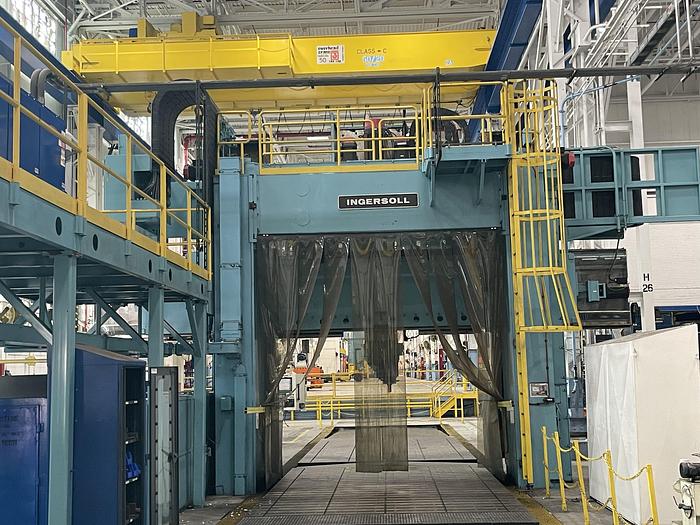

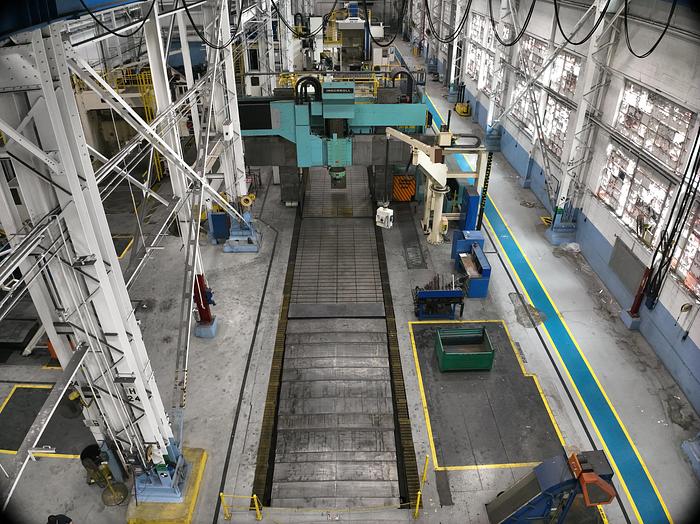

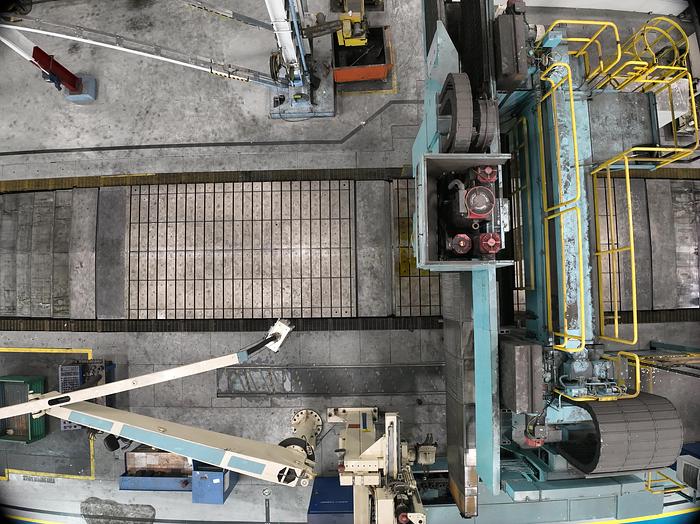

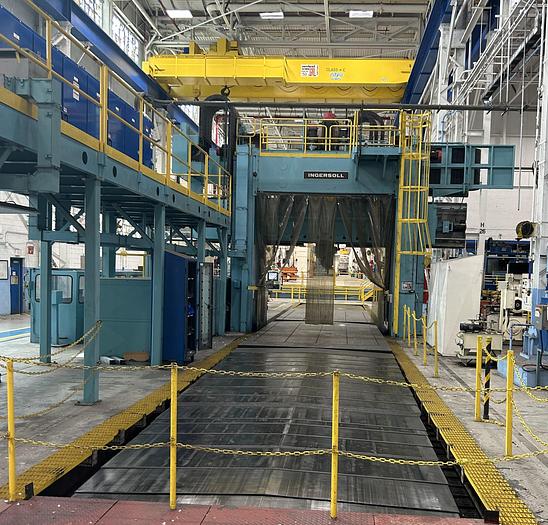

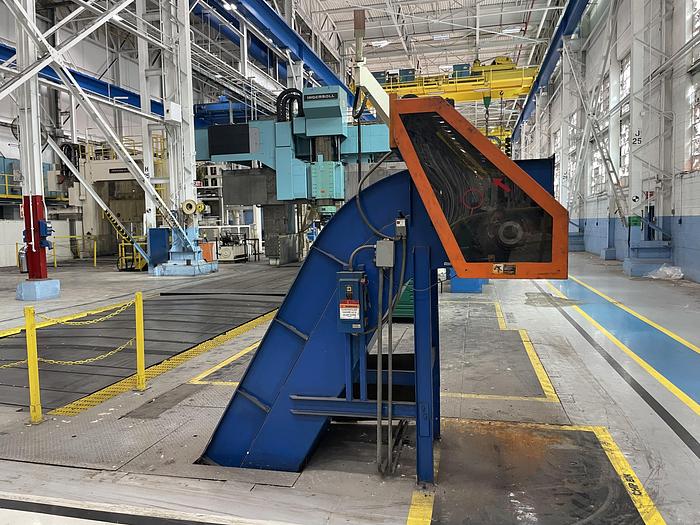

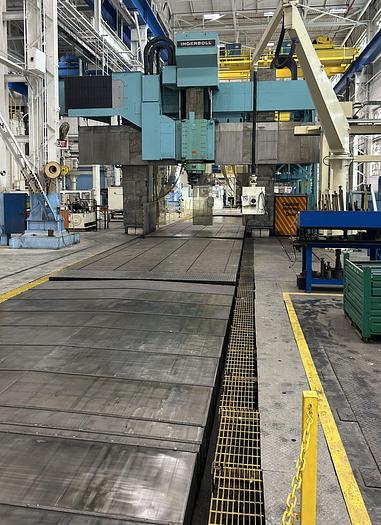

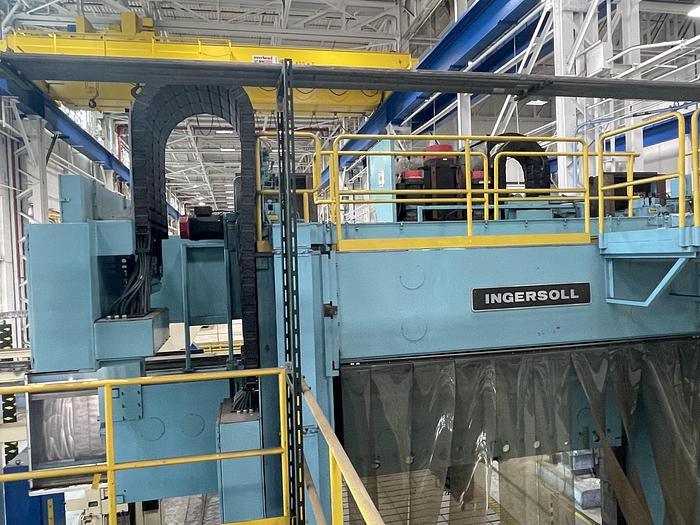

Ingersoll 5-Axis CNC Masterhead Machining Center

Ingersoll 5-Axis CNC Masterhead Machining Center

Mfg: Ingersoll

Model: Masterhead

YOM: 1996 - Upgraded in 2016

X-Axis: 36,000 mm

Y-Axis: 10,000 mm

ATC: 72 (50 Taper)

Capacities:

Width Between Column Way Covers: 196.8"

Height From Table Top to Ram Face(Ram Retracted) 127.9"

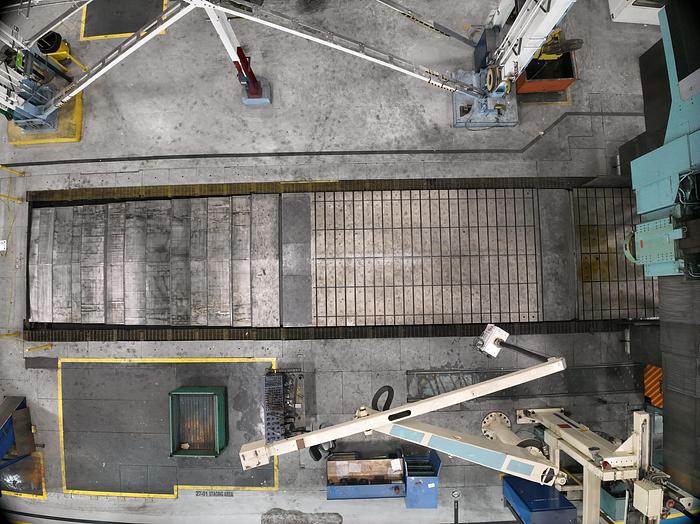

Table Width: 137.7"

Front Table Length: 255.5"

Rear Table Length: 253.9"

Joined Table Length: 541.9

HP: 100 HP Continuous (Digital AC Spidle Motor)

Drive Speeds: 20-4000 RPM

Ram Vertical Travel: 39.4" (998 mm)

Axes Travel:

X-Axis (Tables Joined) 541.1" (13,741 mm) / X-Axis (Front Table) 255.5" (6,489 mm)- X-Axis (Rear Table): 254.7" (6,489 mm)

Y-Axis: 196.8" (4,999 mm)

Z-Axis: 39.3" (998 mm)

W-Axis: 96.4 (2,448 mm)

C-Axis: 360* Cont./Reversible Rotation

B-Axis: +/- 180*

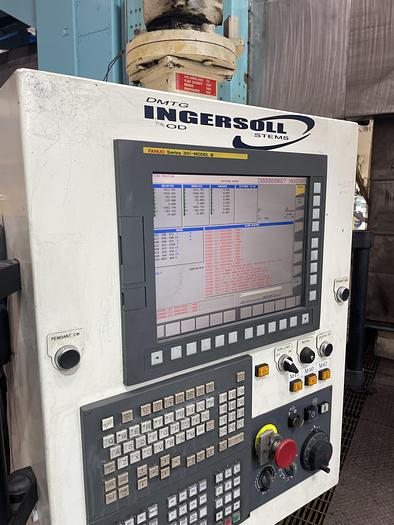

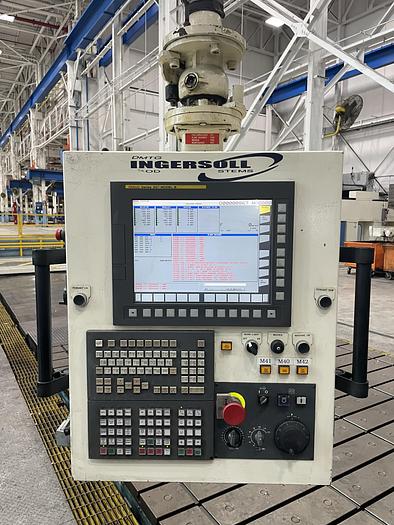

Equipped with: Contouring on X, Y, Z, C & B, Fanuc Series 30i-Model B Control
