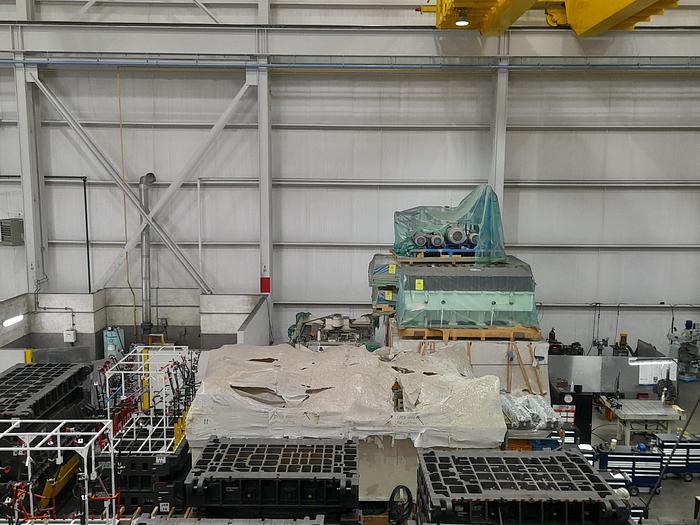

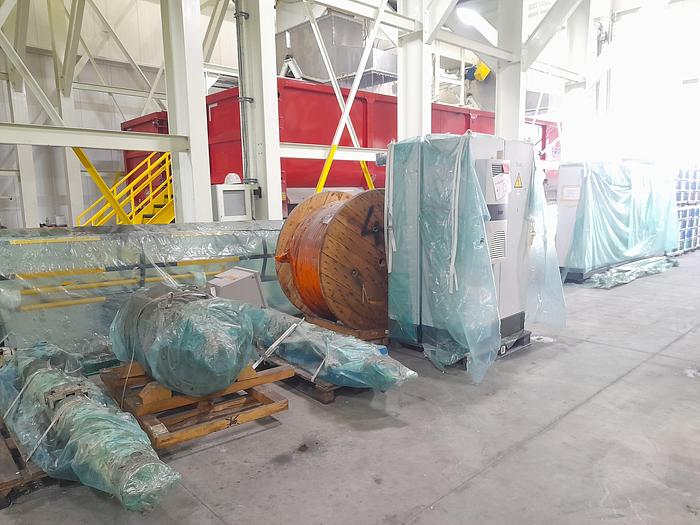

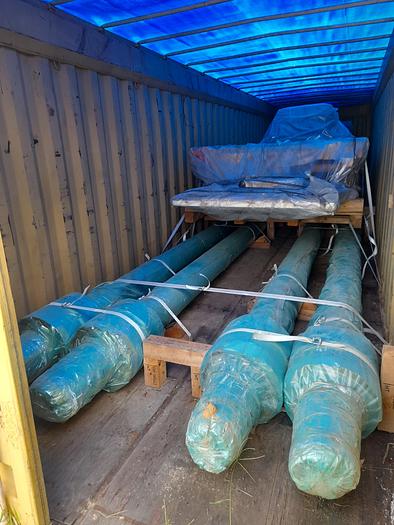

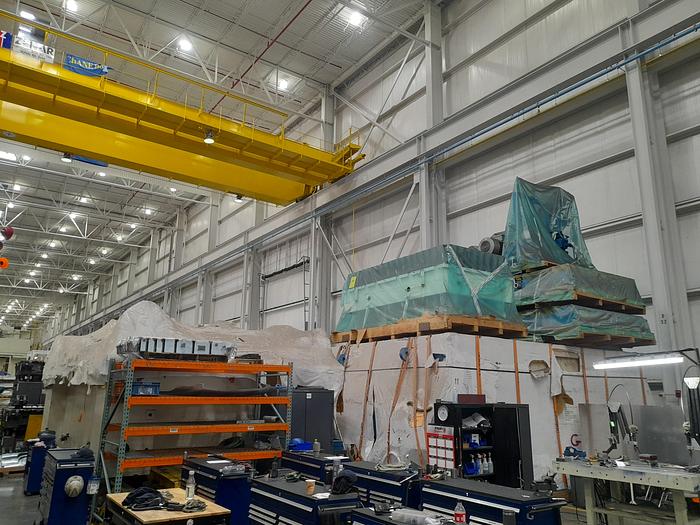

2248 Ton Schuler Hydraulic Press (Never Installed)

2248 Ton Schuler Hydraulic Press

Mfg: Schuler

Model: 2248

YOM: 2011 - Never Installed

Total Press Capacity: 2248 Tons

Retraction Capacity: 185 Tons

Slide Capacity: 13227 Tons

Slide Area: 177" x 98"

Slide Stroke: 68"

Daylight Clamping Plate Slide up: 110"

 Blank Holder Capacity: 899 Ton

Blank Holder Stroke: 68"

Daylight Clamping Plate Blank Holder Up: 110"

Blank Holder Area: 177" x 98"

 Clear Distance Between Guides: 178" x 101"

 Bed Cushion Area: 144.9" x 81"

Bed Cushion Displace Capacity" 84-674 Ton

Ejector Capacity: 63.5 Ton

Bed Cushion Stroke: 12.5"

 Slide Speed:

 ( Decoupled Double Acting) Rapid Down 32" Per Sec

Max With 3 Cylinders: 5" Per Sec

Max With 2 Cylinders: 7" Per Second

 Slide Speed (coupled Single Acting) Seven Cylinders: 2.5" Per Sec

Return Speed:21.8" Per Second
