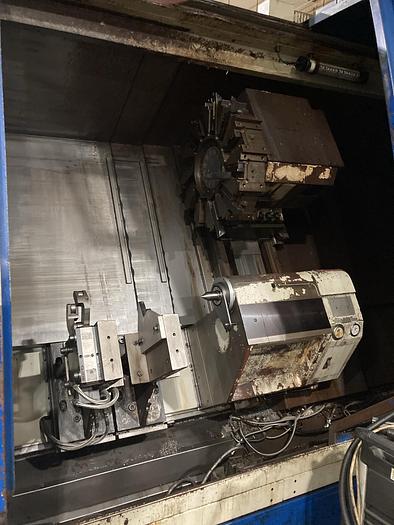

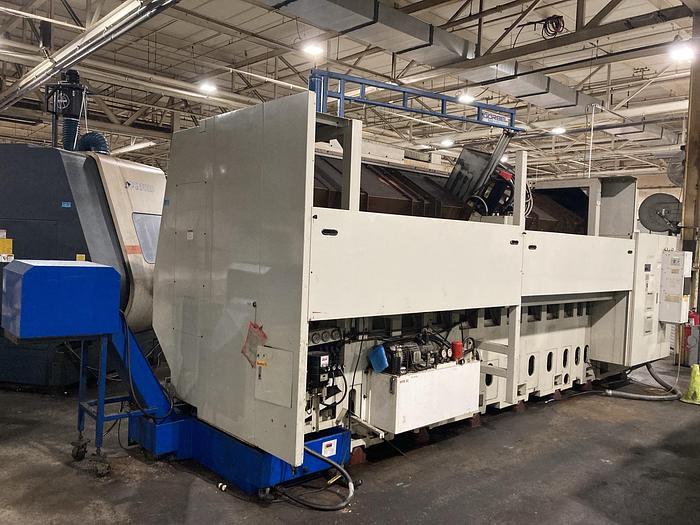

JOHNFORD ST-130 CNC LATHE

JOHNFORD STD-130 CNC LATHE

Specifications:

Mfg: Johnford

Model: ST-130

Swing over bed/Front cover 36.2"

Standard turning diameter 27.5"

Swing over carriage 27.5"

Maximum cross travel (X axis) 15.7"

Maximum longitudinal travel (Z axis) 120"

Distance between centers 130”

Spindle:

Spindle Motor 50 HP

Spindle nose A2-11

Spindle RPM 0-3000 (12” Chuck)

Hole through spindle 4.5"

Bar Capacity 4.1”

Spindle bearing diameter 6.3"

Spindle inside taper M.T. 7

Hydraulic chuck 12” 3-Jaw

Turret tool positions 12

Tailstock:

Quill diameter of tailstock 7.87

Quill stroke of tailstock 5.9

Quill taper of tailstock M.T. 7

Tailstock body travel 110”

Hydraulic, programmable tailstock body and quill

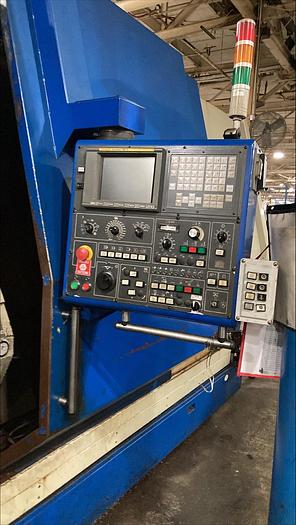

Control:

Fanuc 18T control
