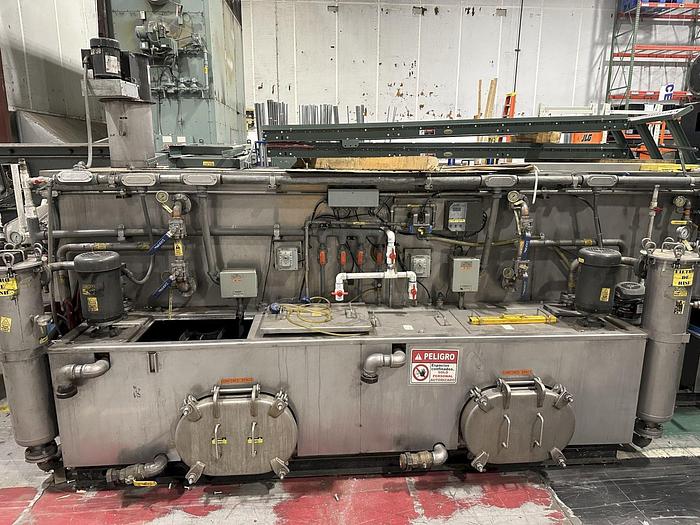

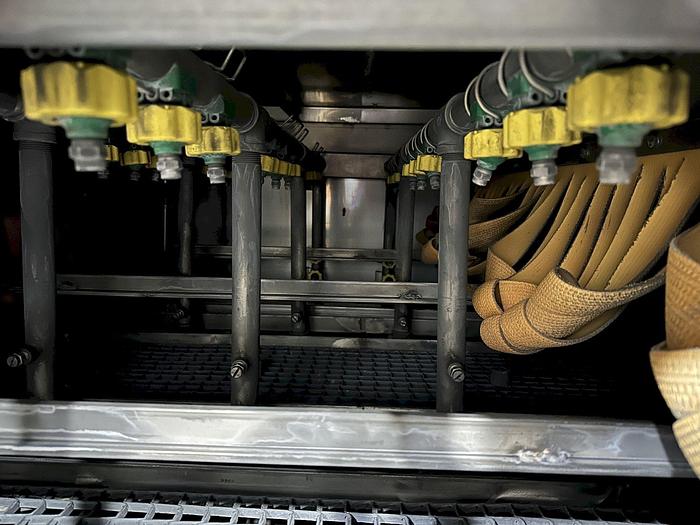

4-STAGE STAINLESS STEEL JENFAB WASHER, MODEL #MCCS-3000SS2F , 3-LANE 12" WIDE MESH BELTS

4-STAGE STAINLESS STEEL JENFAB WASHER, MODEL #MCCS-3000SS2F , 3-LANE 12" WIDE MESH BELTS

MFG: JRI Holdings

NEW 2016

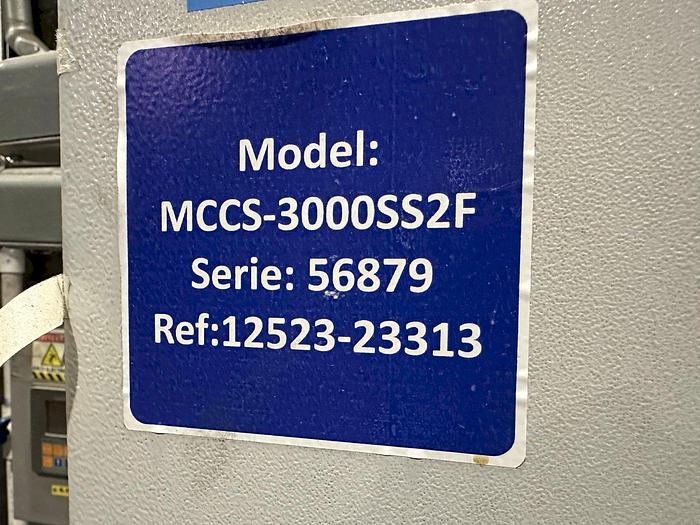

MODEL MCCS3000SS2F

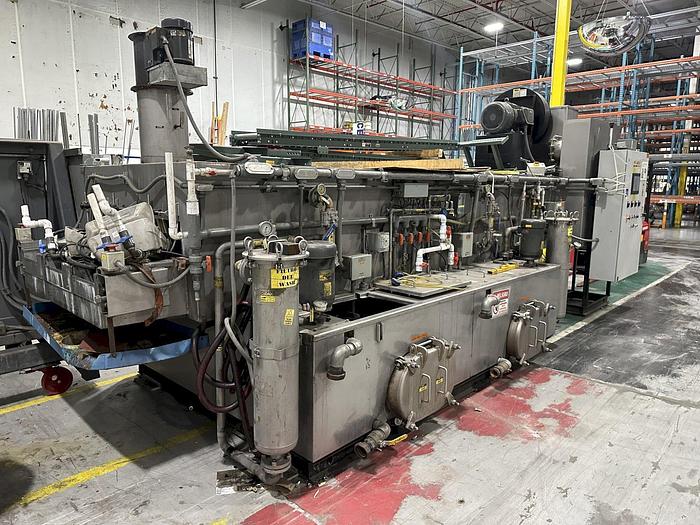

Stainless Pass Through Washer

4 Stage: Wash, Rinse, Fresh Rinse, HABO

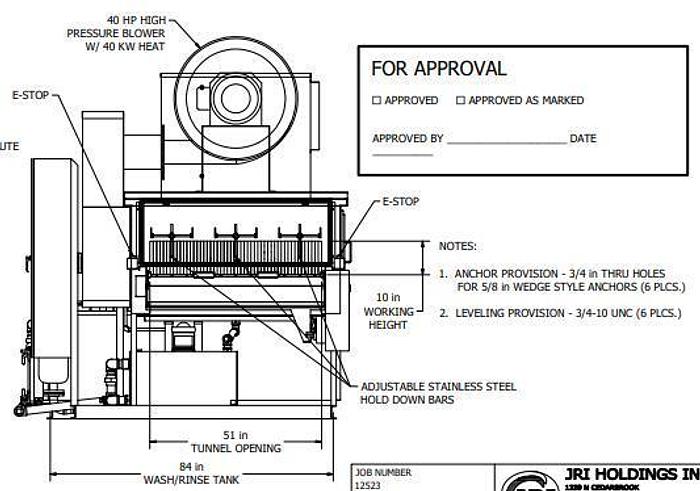

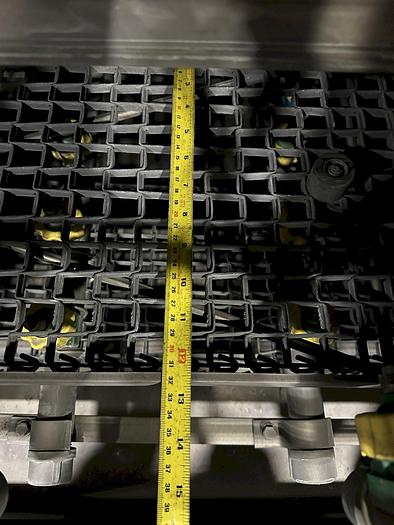

51" Wide Tunnel Split into (3) 12" Work width spaces 1"x1" S.S. Belt

Part Height 10"

470 lbs Weight Capacity Evenly Distributed

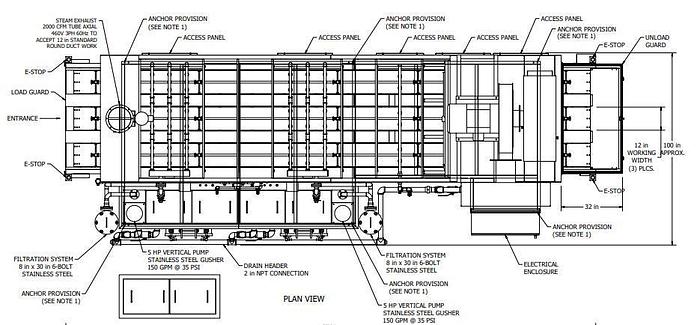

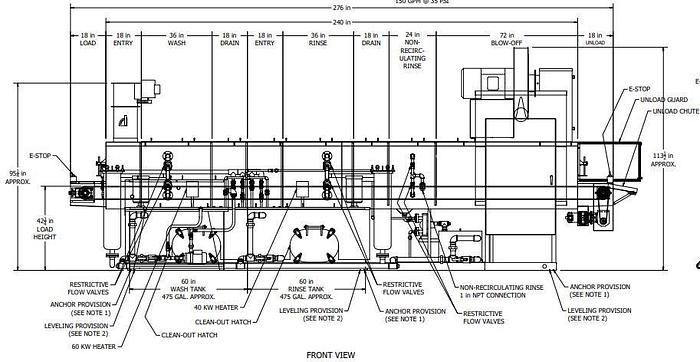

Work Flow:

18" Load

18" Entry

36" Wash

18" Drain

18" Entry

36" Recirculating Rinse

18" Drain

24" DI Water Rinse Non-Recirculating

72" Hot Air Blow Off

18" Unload

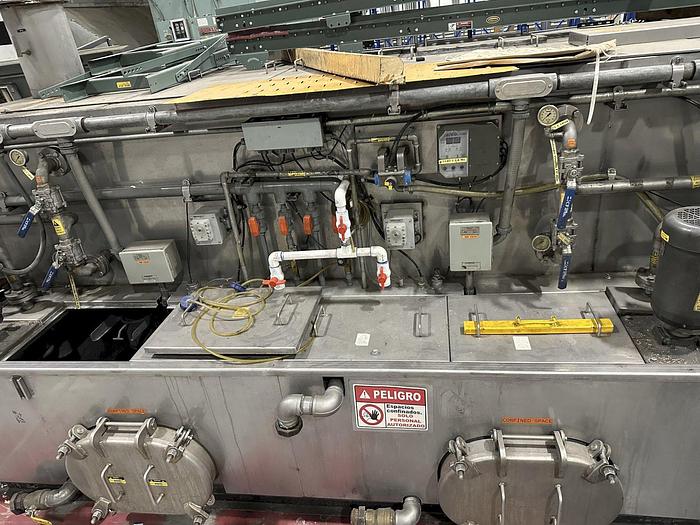

Stainless Steel on all wetted surfaces, Plumbing and Pumps are all stainless.

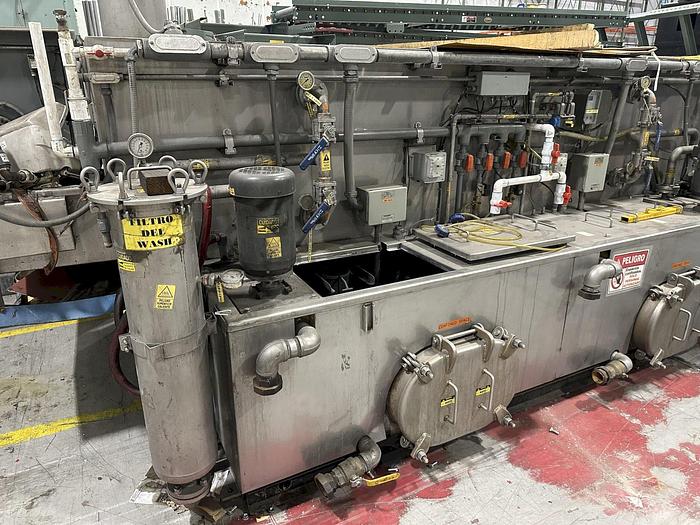

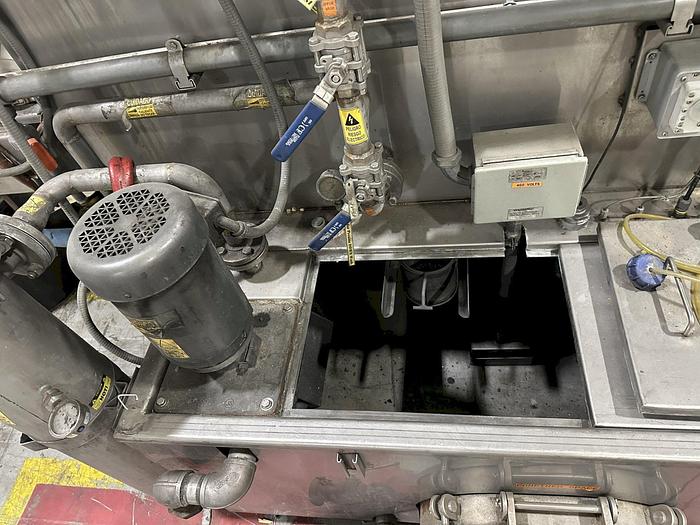

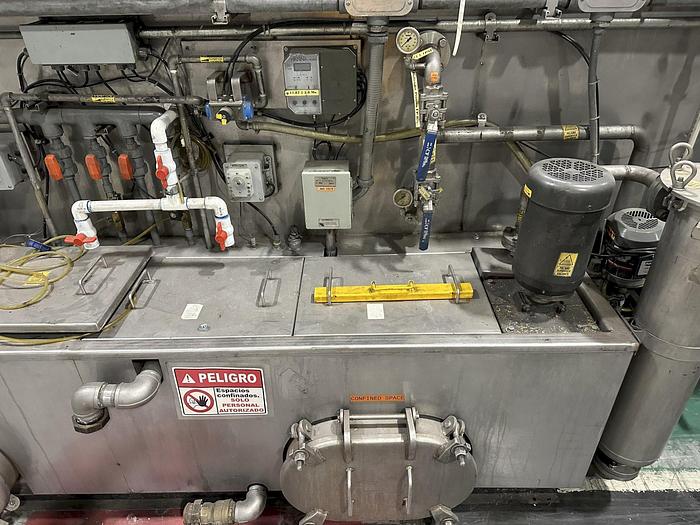

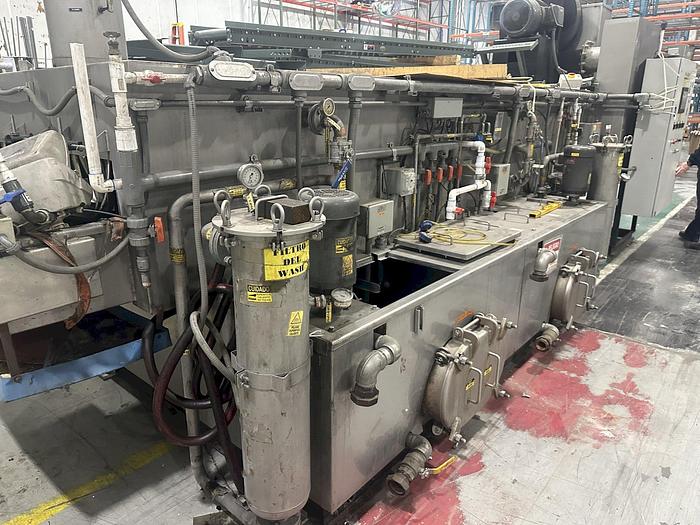

Wash Stainless Gusher 5 H.P. Pump 150 GPM @ 35 PSI (475 Gal Tank.) 60 KW Electric Heat

Rinse Stainless Gusher 5 H.P. Pump 150 GPM @ 35 PSI (475 Gal Tank.) 40 KW Electric Heat

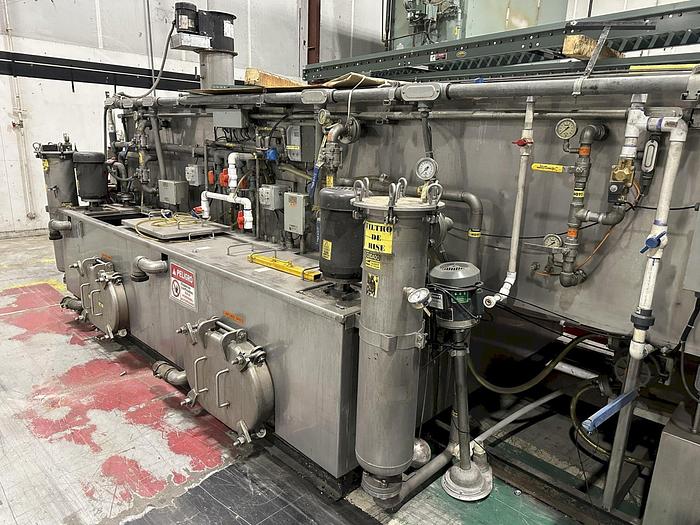

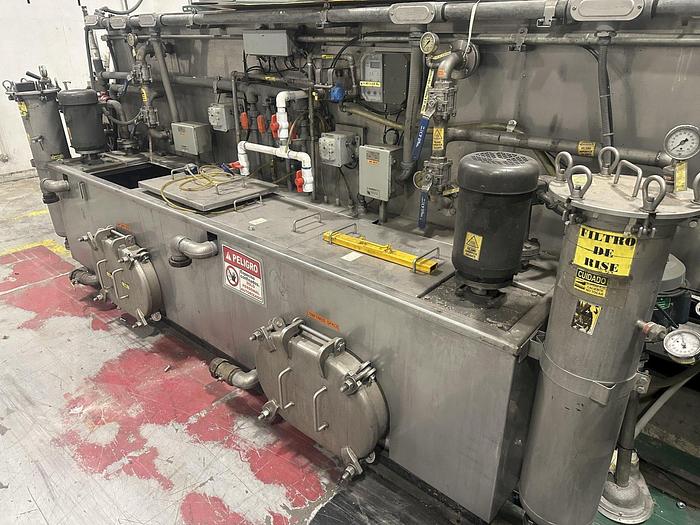

Filtration System 8x30 Stainless Steel (1) Wash (1) Rinse

Restrictive Flow Valves S.S. Wash, Rinse, and non-recirculating Di-Rinse

Auto and Manual Fill

Drain Headers with Tank Drains Connected to Valves using Iron Brass Ball Valves

Fresh Water Rinse w/Photo Eye fur customer supplied DI Water Located at the End of the Recirculated Rinse w/DI Rinse Water to Be directed into rinse tank & overflow drain. Flow Rate 6 GPM @ 30 PSI

Insulation on Both Tanks Wash and Rinse

Clean-out Doors Wash and Rinse

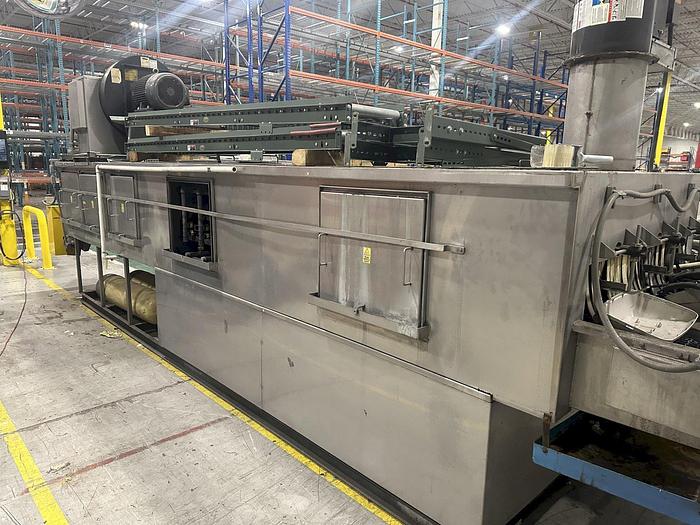

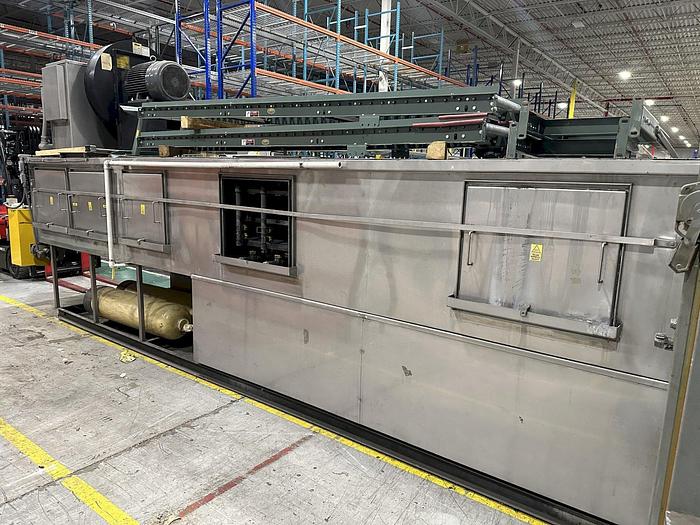

Side Enclosure Removable Access Panels for Each Stage

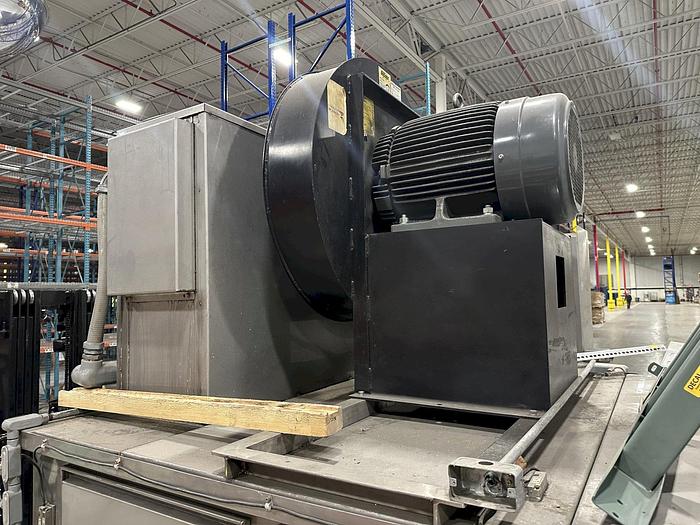

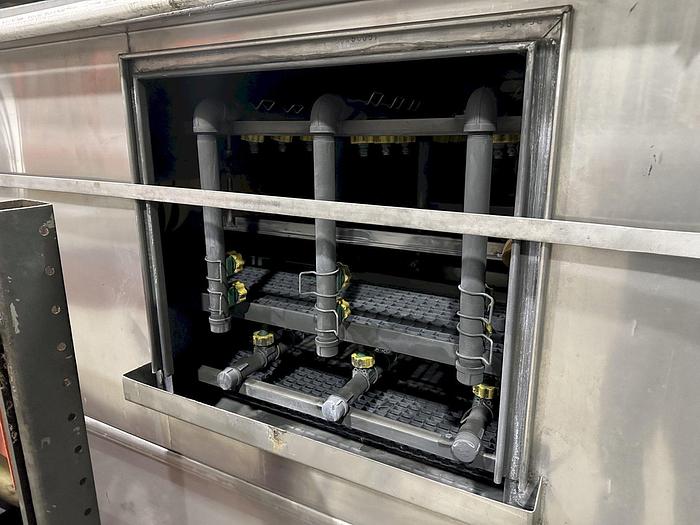

40 HP High Volume Blower Air Knives Above, Sides, and Below.

40 KW Blower Duct Heat

65 Gallon Oil Coalscer

2000 CFM Steam Exhaust

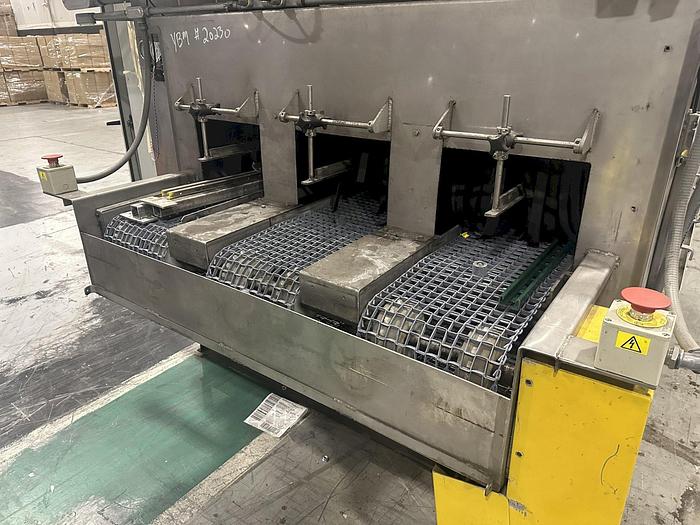

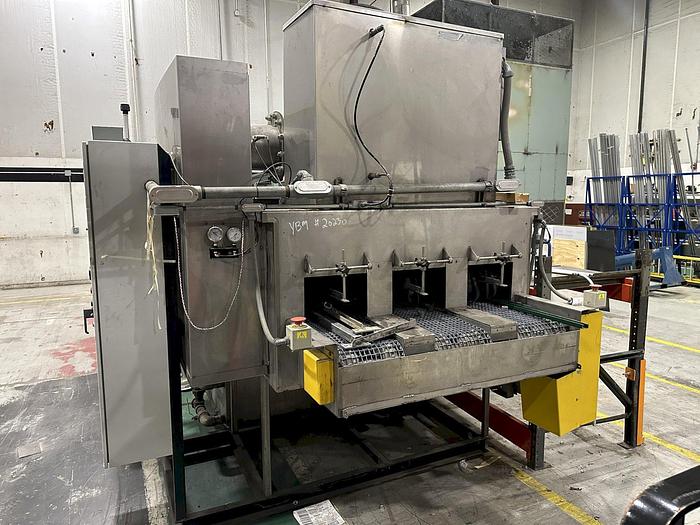

Adjustable Stainless Hold Down bars for each lane

Drive Motor with 0-6 FPM

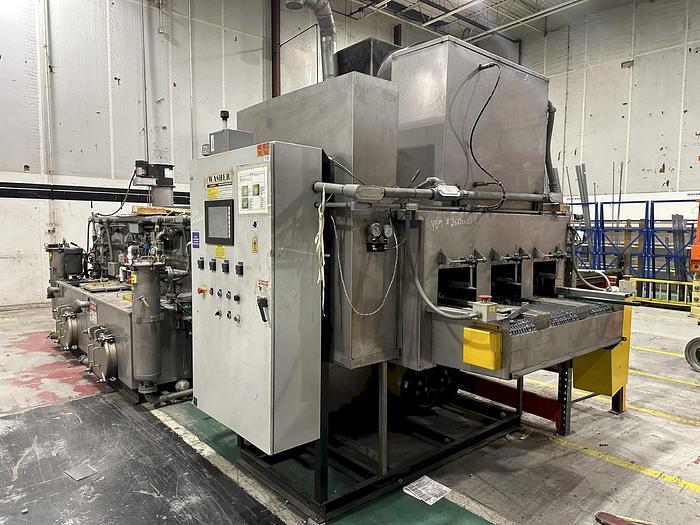

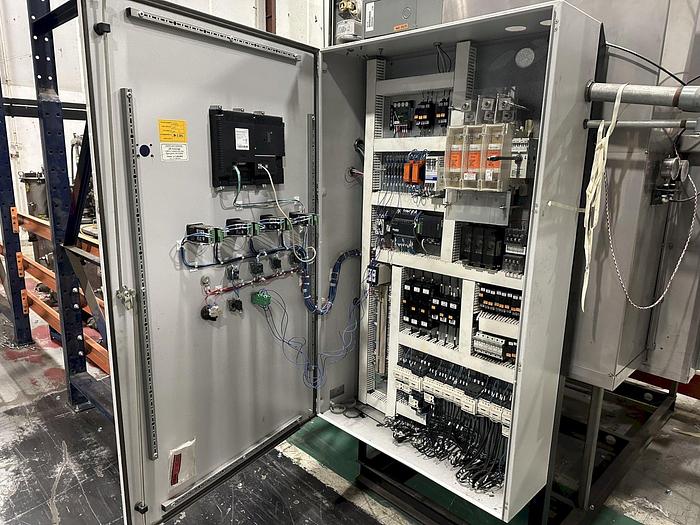

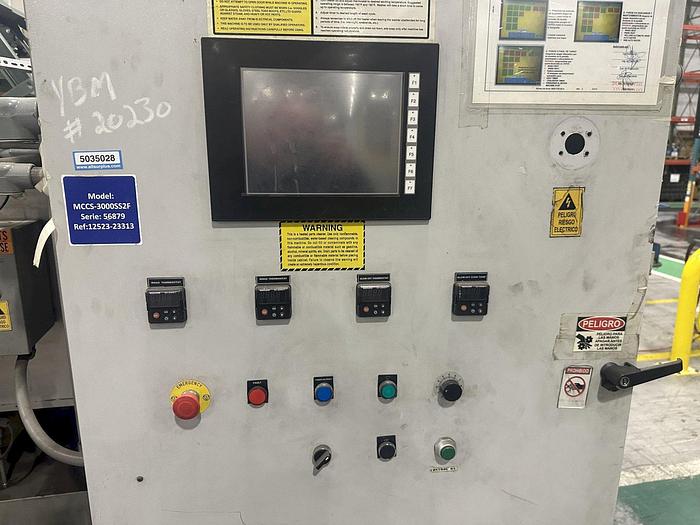

Automation Direct PLC with Programming

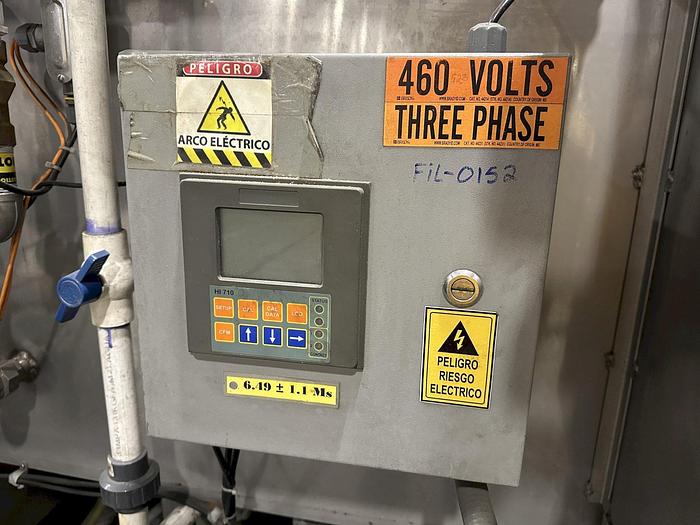

Metering Pump Blue White Solution Metering Pump & Grate Lakes Conductivity Controller for Monitoring & Adding Chemistry to Tank

Lock Out Tag

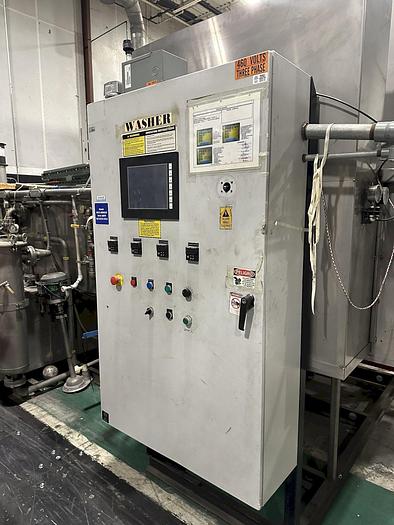

Nema 12 Elctrical Box 400 Amp Disconnect

Very Nice washer with little usage. Originally built to clean light parts that needed to be held in place by Adjustable Stainless Steel Hold Down Bars.

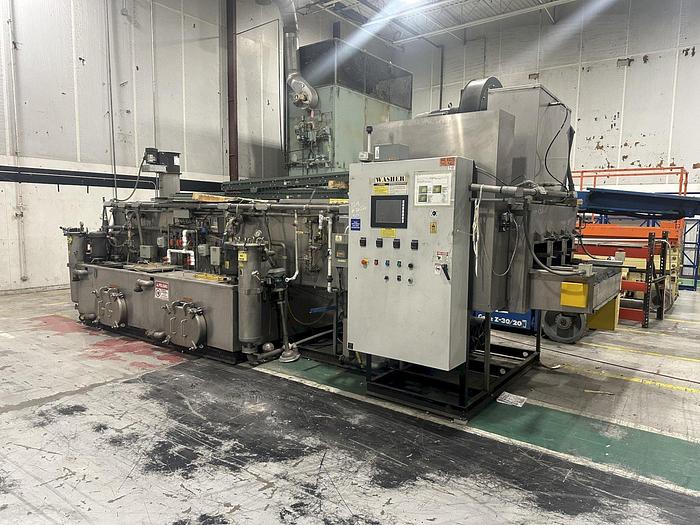

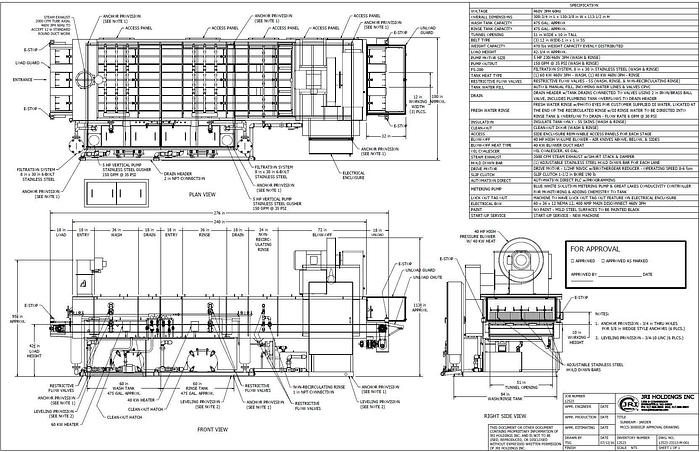

Dimensions: 276" L x 100" W x 113.5" T, Approximate Weight: 20,000 lbs.
