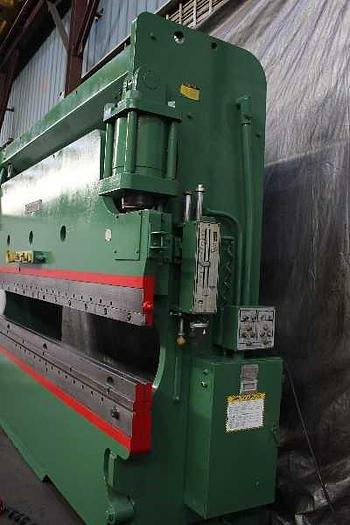

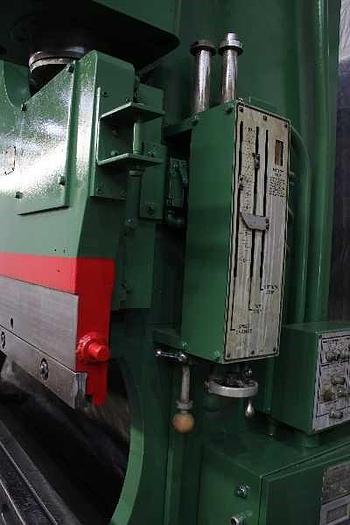

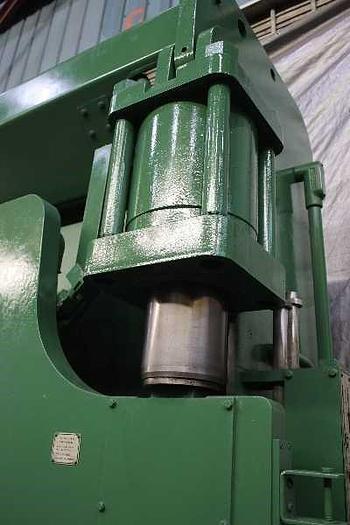

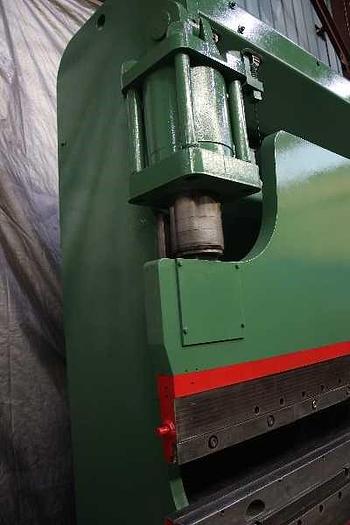

Cincinnati 175-Ton x 14' Hydraulic Press Brake Model: 175 CB x 12

Cincinnati 175-Ton x 14' Hydraulic Press Brake

MODEL:  175 CB x 12

CAPACITY ....................... 175 TON

OVERALL LENGTH OF BED .......... 14'

DISTANCE BETWEEN HOUSINGS ...... 12'6"

STROKE ......................... 10"

MAXIMUM OPEN HEIGHT ............ 17"

MAXIMUM CLOSED HEIGHT .......... 7"

THROAT ......................... 8-1/2"

WIDTH OF BED ................... 4-1/2"

RAM AND BED MILLED AND DRILLED . YES

DEPTH CONTROL .................. YES

PALM BUTTONS ................... YES

ELECTRIC FOOT PEDAL ............ YES

MOTOR .......................... 20 HORSEPOWER
