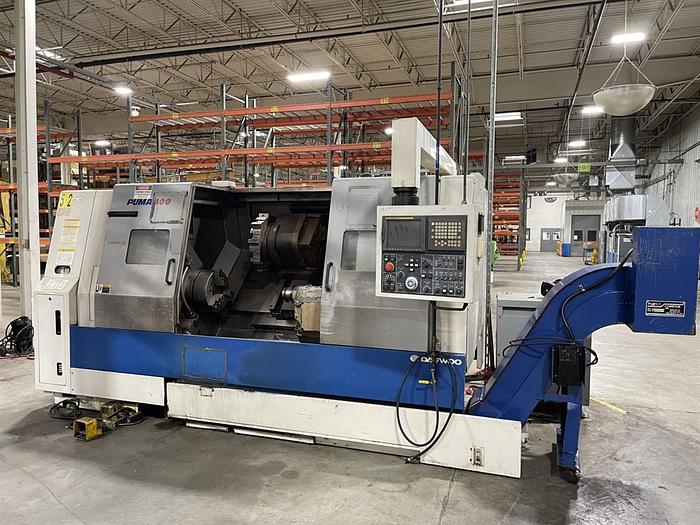

2001 DAEWOO PUMA CNC LATHE Model: 400B

2001 DAEWOO PUMA 400B CNC LATHE

Chuck Size: 15"

Max Diameter Bar Capacity: 4.63"

Max Swing Over Bed / Carriage: 27.56" / 18.9"

Spindle Motor: 50 / 37 HP

Spindle Speed: 20 - 2000 RPM

Spindle Nose: A2-11

Spindle Bore: 5.2"

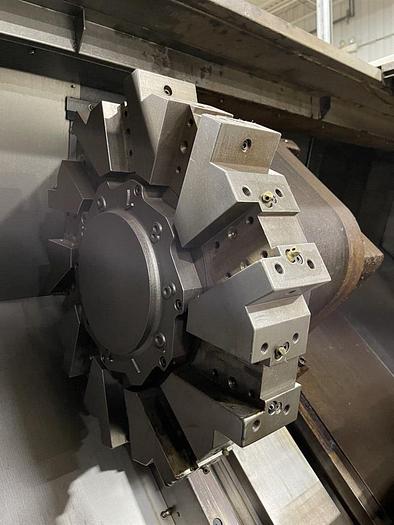

Tools: 10

Rapid Traverse Rates (X / Z): 630 / 790 IPM

X-Axis Travel: 14.3", Z-Axis Travel: 43.5"

Turret Index (Single Step): 0.25 Seconds

Machine Dimensions (L x W x H): 153" x 85" x 90"

Machine Weight: 19,000 lbs.

Distance Between Centers: 44.1"

Max Turning Diameter (Max / Std): 21.65" / 14.96"

Max Turning Length: 41.34"

Spindle Torque: 1836 ft. lbs.

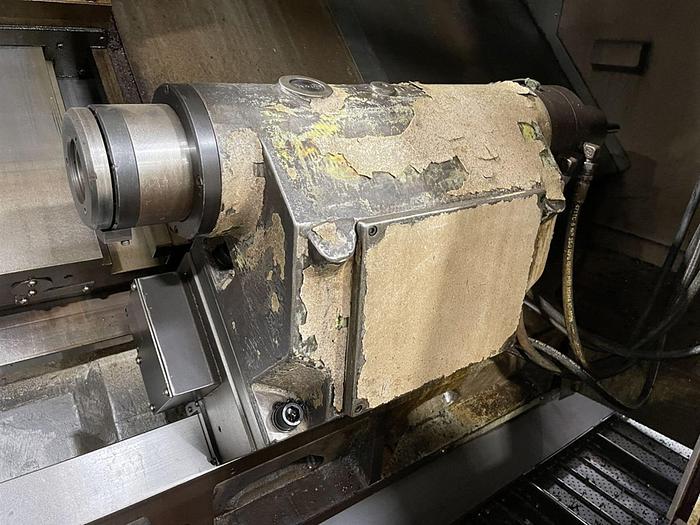

Tailstock Taper: MT#6

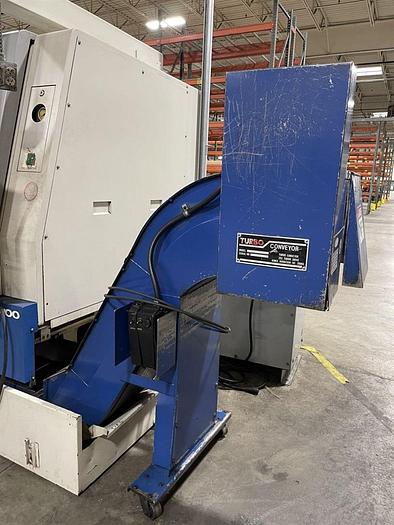

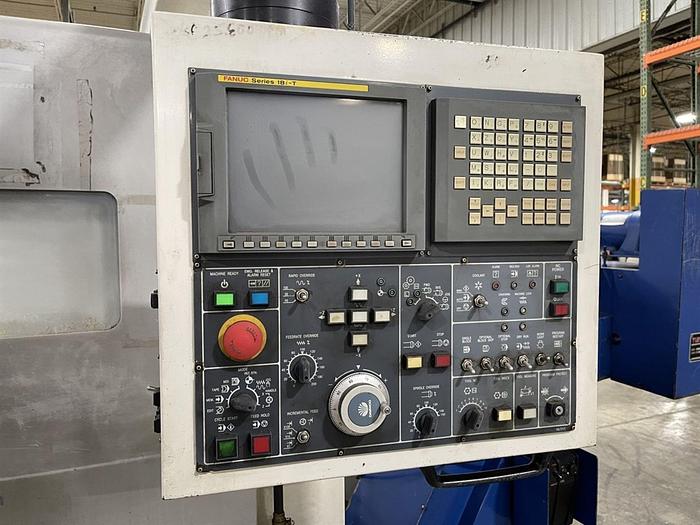

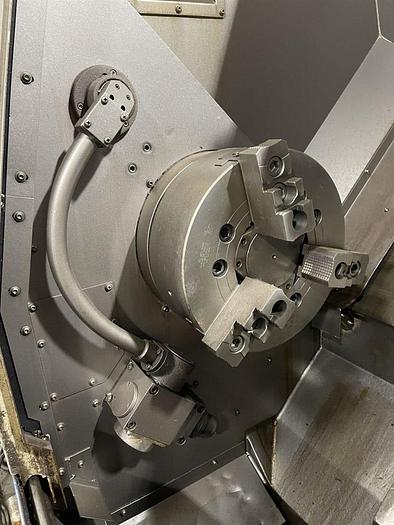

Equipped with: Fanuc 18iTB CNC control, PC/MCIA Interface, 15" Hydraulic Chuck, Programmable Tool Presetter, Programmable Tailstock Quill, Chip Conveyor

All Specifications Subject to Verifications
