Bradbury "DOUBLE HIGH" & RAFTED ROLLFORMING LINE for AG Panel

BRADBURY "DOUBLE HIGH" & RAFTED ROLLFORMING LINE

TOOLED FOR ....... GRAND RIB III AG PANEL

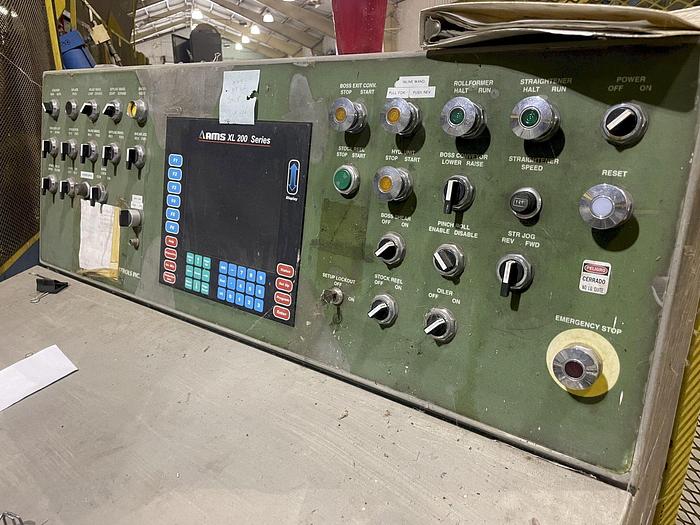

CONTROLS ......... AMS XL200 SERIES

FEED DIRECTION ... LEFT TO RIGHT

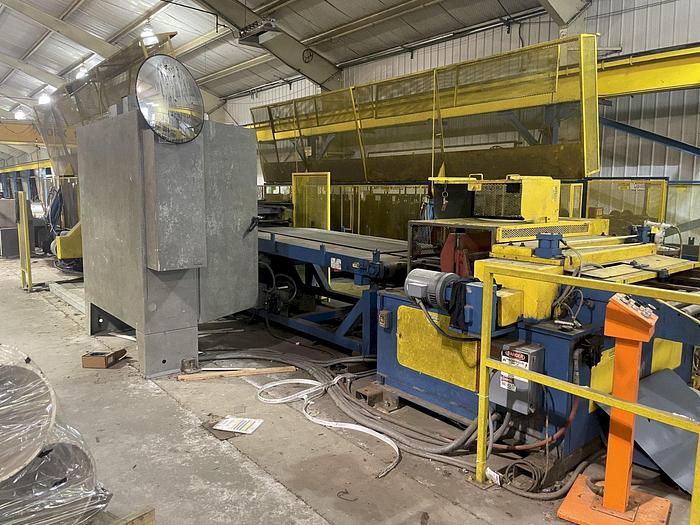

LINE CONSIST OF:

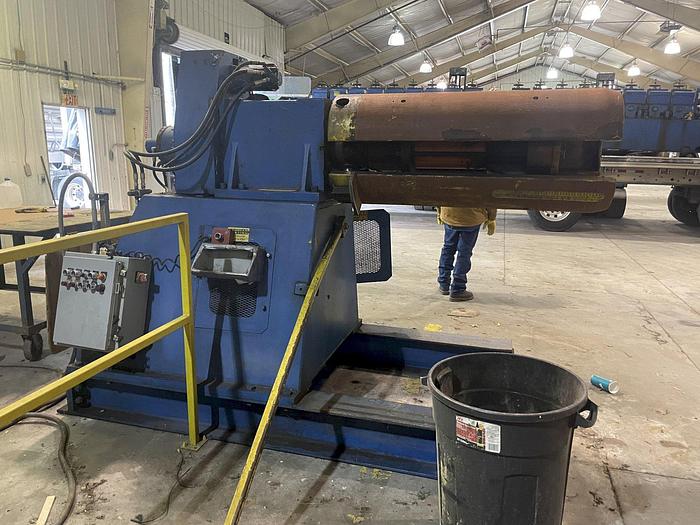

BRADBURY MOTORIZED UNCOILER

MODEL .................. SR20

WEIGHT CAPACITY ........ 20,000 LBS

MANDRAL LENGTH ......... 48"

DANCER LOOP ARM ........ YES

HYDRAULIC EXPANSION .... YES

FORWARD & REVERSE ...... YES

JOG MODE ............... YES

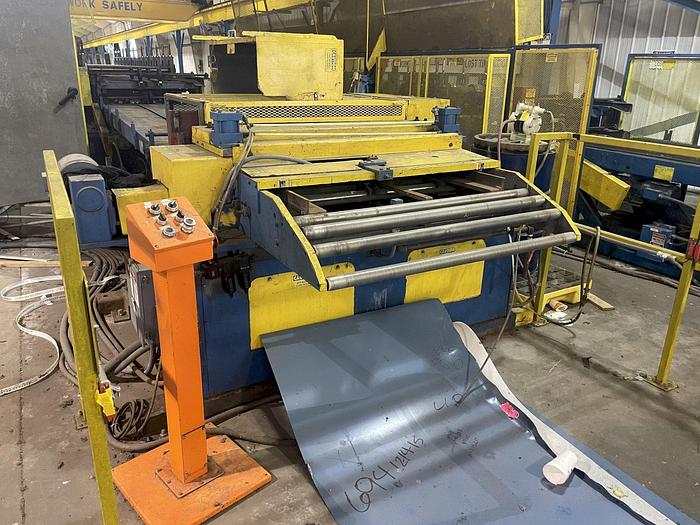

BRADBURY "BOSS" STRAIGHTENER AND SHEAR

SERIAL ................. 35246

YEAR NEW ............... 1999

MODEL .................. BOSS-48

STRAIGHTENER:

NUMBER OF WORK ROLLS ... 4

WORK ROLL DIAMETER ..... 3"

PINCH ROLL DIAMETER .... 5"

PASS LINE HEIGHT ....... 36"

CAPACITY ............... 48" X .048 (18GA) X 50K PSI YIELD

         ............... 48" X .036 (20GA) X GRADE "D"

         ............... 48" X .030 (22GA) X GRADE "E"

SPEED .................. 80 TO 220 FPM

VARIABLE SPEED DRIVE ... YES

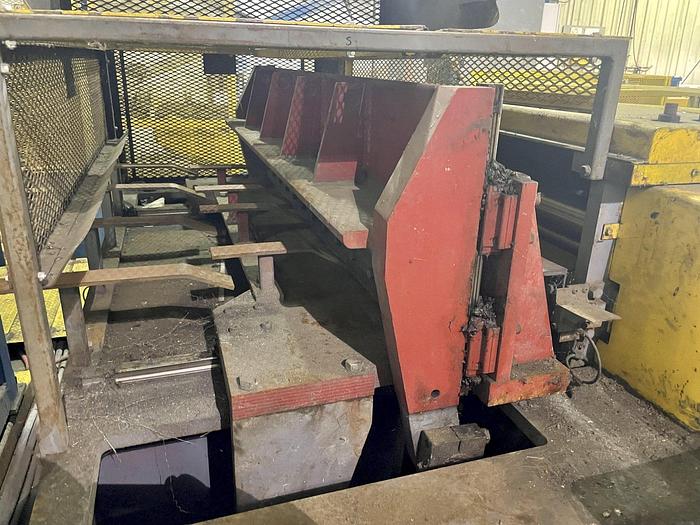

SHEAR:

PRODUCTION RATE ........ (10) 20 FT PARTS PER MINUTE

LENGTH TOLERANCE ....... +/- 1/16"

LENGTH OF CUT SHEET .... MINIMUM 48" @ 220 FPM

                    .... MINIMUM 36" @ 200 FPM

BLADES ................. HCHC 4 EDGE, BOW-TIE

MOTOR DRIVE ............ 5 HP

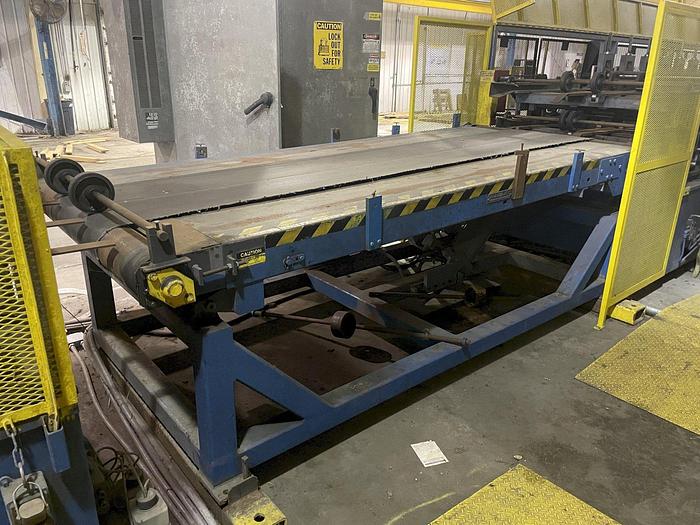

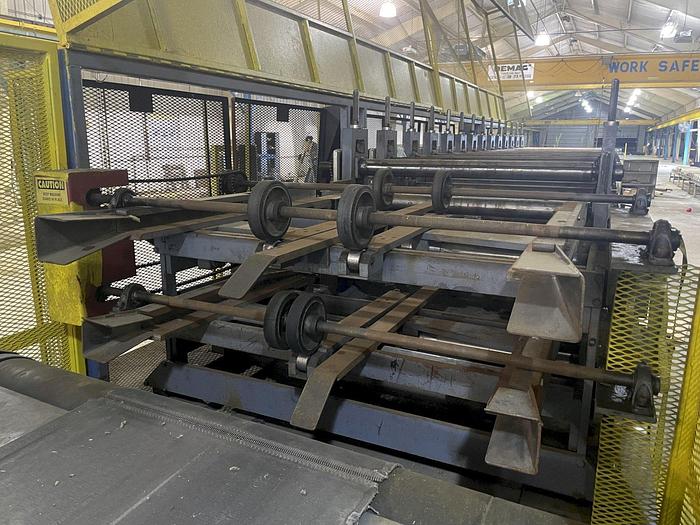

BRADBURY TRANSFER CONVEYOR TABLE

LENGTH OF CONVEYOR ..... 120"

WIDTH OF CONVEYOR ...... 48"

ADJUSTABLE HEIGHT ...... YES, SELECTING PASSLINES

LIFT CYLINDER .......... PNEUMATIC

HOLD DOWN ROLL ......... YES

POWERED ................ YES

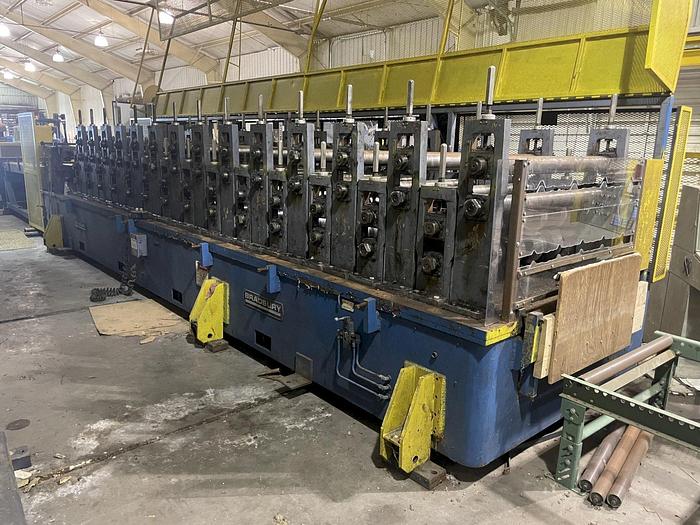

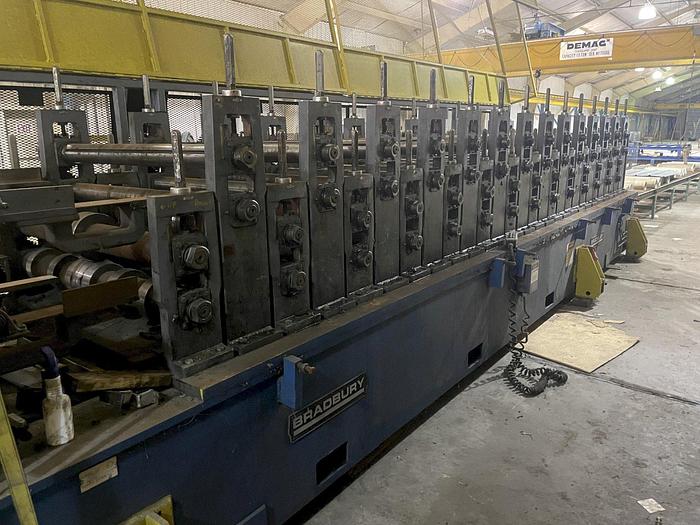

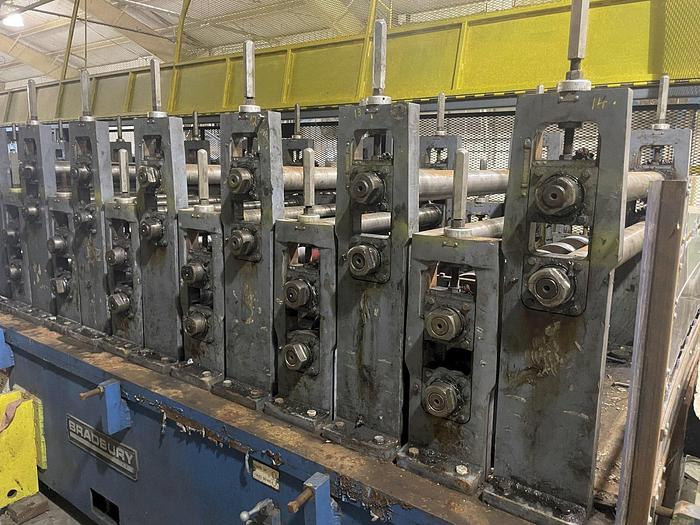

BRADBURY "DOUBLE HIGH" ROLLFORMER

SERIAL ................. 16779

YEAR NEW ............... 1986

MODEL .................. 420 "DOUBLE HIGH"

RAFTED CONSTRUCTION .... YES

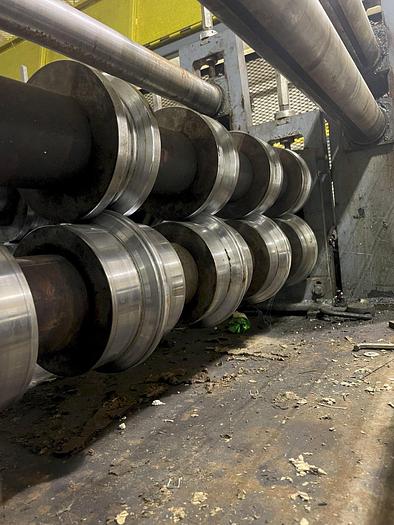

NUMBER OF PASSES ....... 14 UPPER & 14 LOWER

SHAFT DIAMETER ......... 3-1/2"

ROLL SPACE ............. 44"

VERTICAL ADJUSTMENT .... 4-7/8" TO 8-7/8"

HORIZONTAL CENTERS ..... 18"

TOP SPINDLES ........... GEAR DRIVEN

GEAR RATIO ............. EQUAL

GEAR BOX DRIVES ........ YES

ENTRY ENDGE GUIDES ..... YES, UPPER & LOWER

LIFT UP SAFETY GAURDS .. YES, PNEUMATIC POWERED

MOTOR .................. 50 HP

48" WIDE NON-POWERED RUN-OUT CONVEYOR
