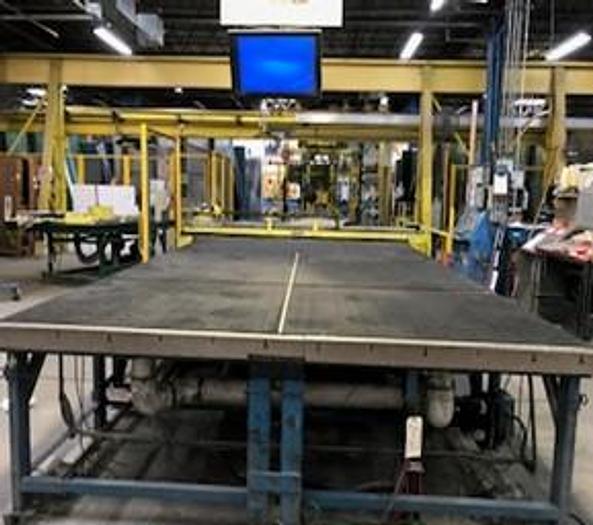

Tamglass Tempering Line with Armetech Laminating Line & Billco Cutting Line Model: 3-Z CBHF

Tamglass Tempering Line with Armetech Laminating Line & Billco Cutting Line

This is a complete line with the following equipment:

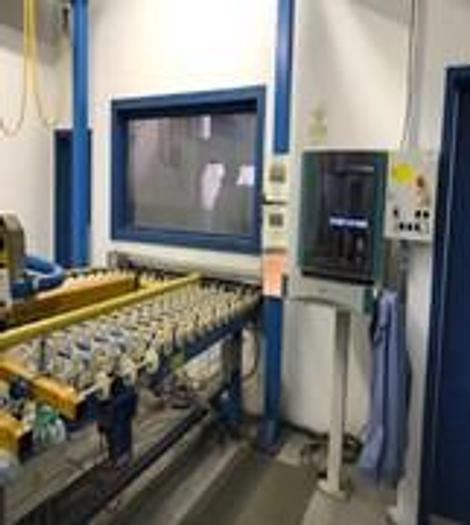

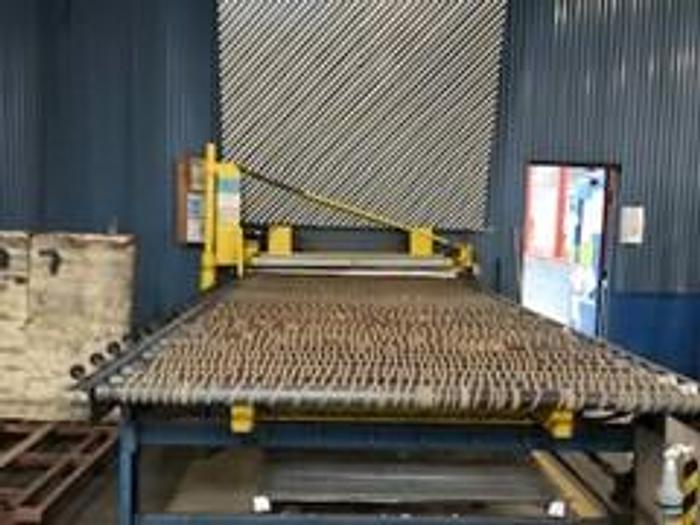

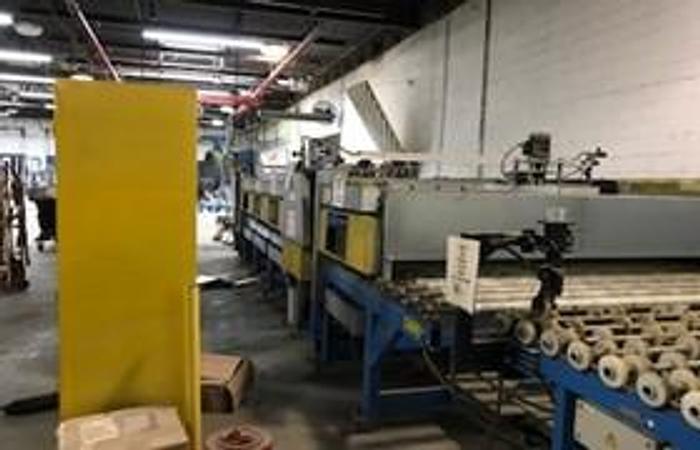

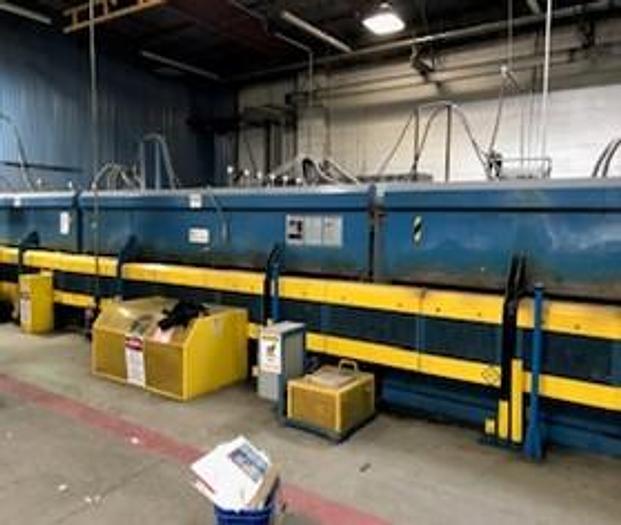

Tamglass 72" x 144", 3-Zone Continuing Glass Tempering Line

Mfg: Tamglass

Model: 3-Z CBHF

YOM: 2001

Max. Size: 72" x 144"

Min. 4" x 9"

Max/Min Thickness: 3mm - 13mm

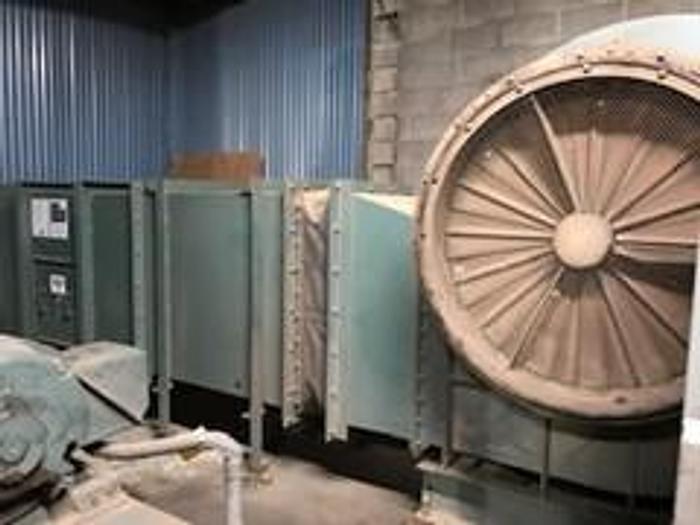

3 Continuous Zones, Fully Automated PLC Control, Visual Camera Inspection Monitors, Air Cooling Fan System, Trigard Gas Monitor, Batch or Continuous Mode Operation.

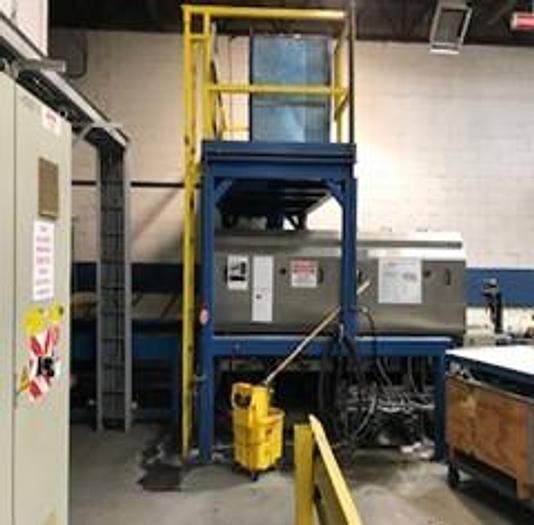

Equipped with Entry Glass Washer:

Billco Washer, Model: 672-8

Max. Sheet Size: 72"

Min. Sheet Size: 14-1/2"

Max. Sheet Thickness: 3/4"

Min Sheet Thickness: 1/16"

Conveyor Speed: 0-36 FPM

Pump Boosted Water Pressure: 30 PSI

Pre-Rinse Tank Capacity: 40 Gal

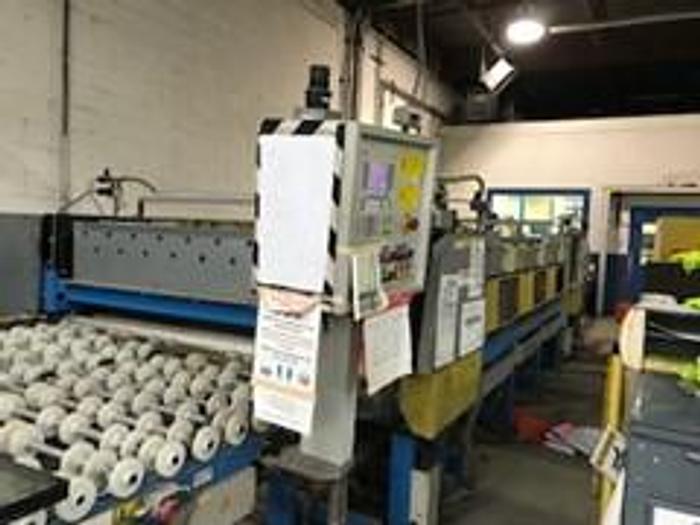

Armetech 72" Laminated Glass Production Line

Mfg: ARMETECH

Maximum Capacity: 72"

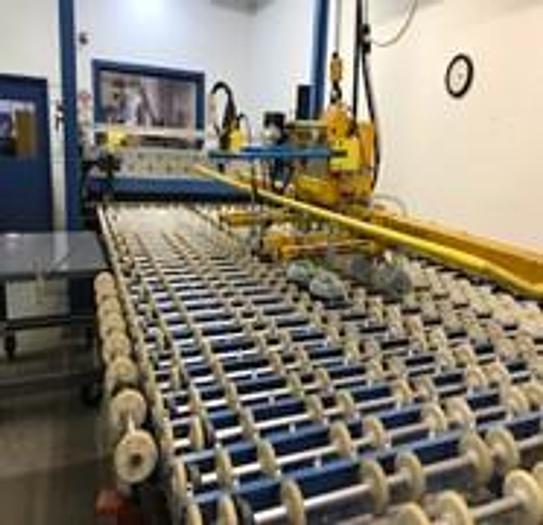

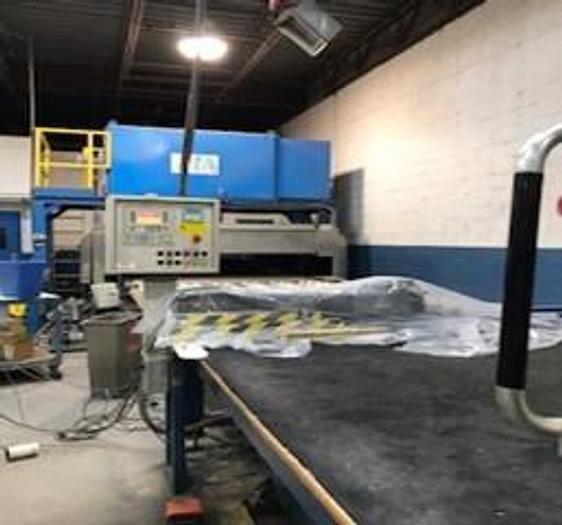

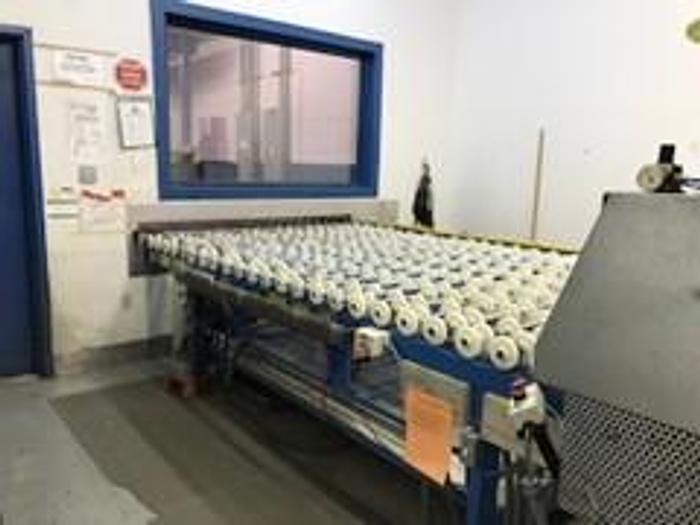

Equipped with: Air Float on Load, GTA Glass Washer (Model: WM 190 VSG), Flat-Line Controller, Pre-Press Rolls, Trim Conveyor, Tack Conveyor & Pre-Heat Conveyor, Final Pressing Rolls.

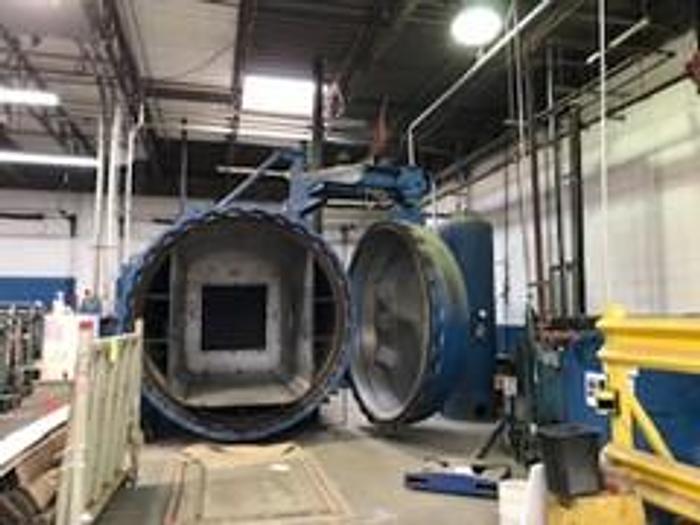

Melco Auto Clave

Operating Temperature: 400*F

PSIG: 200

Interior Dims: 66' W x 88" H x 11'-0" working length

Design Load: 11,000 lbs of Glass + 500 lb steel rack

Air Circulation: 11,000 CFM

HP: 75

6* Min Heat Up/6* Min Cool Down Avg.

Also Includes: Rosenthal PVB Sheeter Model: WAS-7-HEAA-12 & PVB Carousel

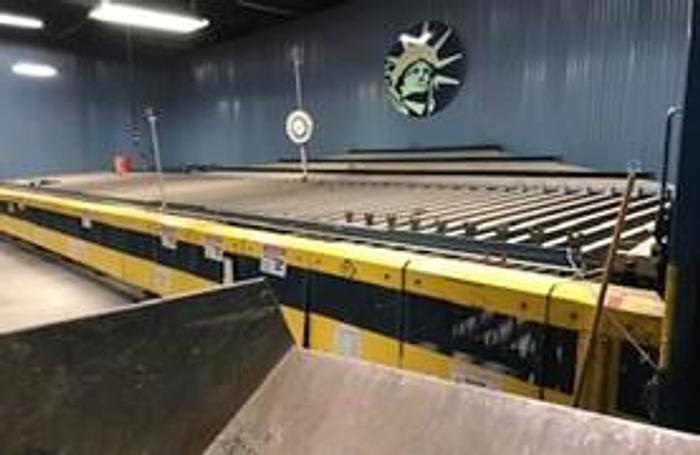

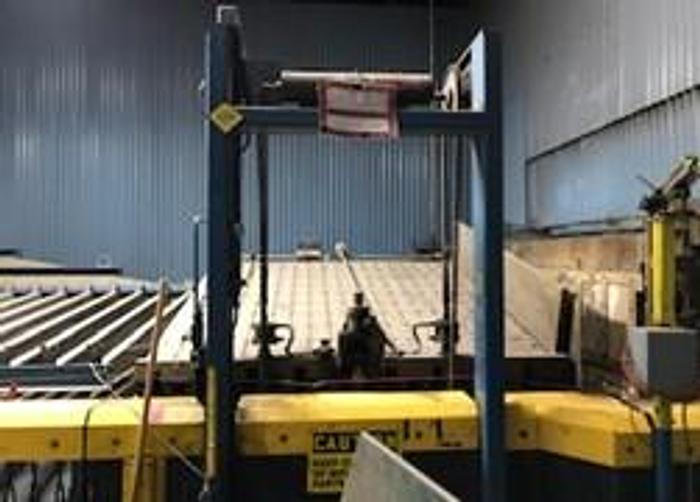

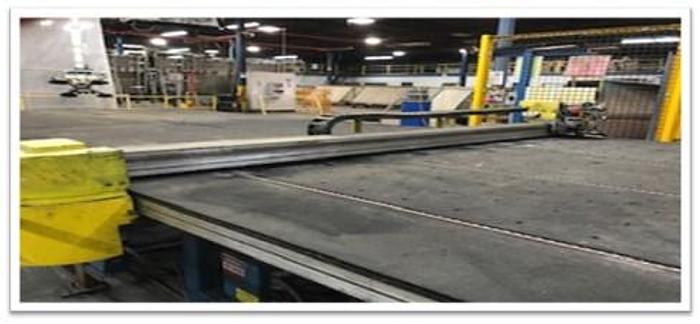

Billco CNC Glass Cutter System 108" x 144"

MFG: Billco

Model: XYZ

Maximum Cutting Size: 108" x 144"

Equipped with:

Z-95 Cutting Head

Batch-Ban HP3 Cutting Software

GE Fanuc 16i M Control, Linear Magnetic X-U & Y Axis with Edge Detect (Renishaw Position Feedback)

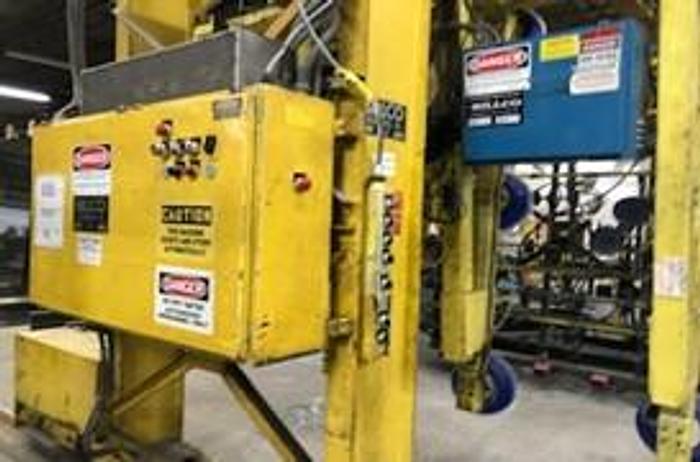

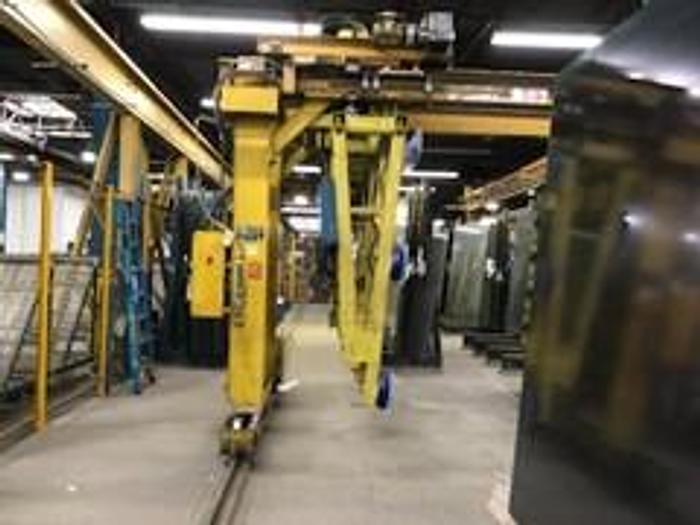

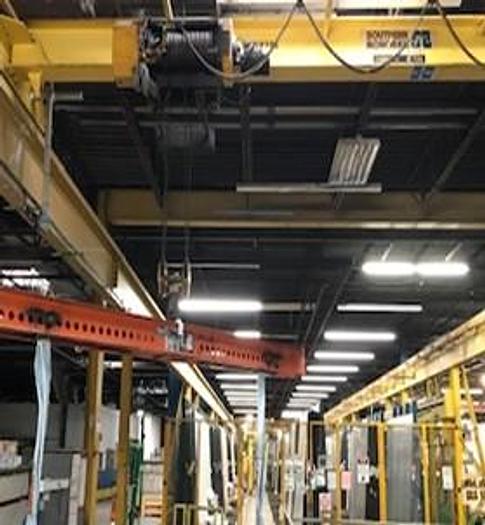

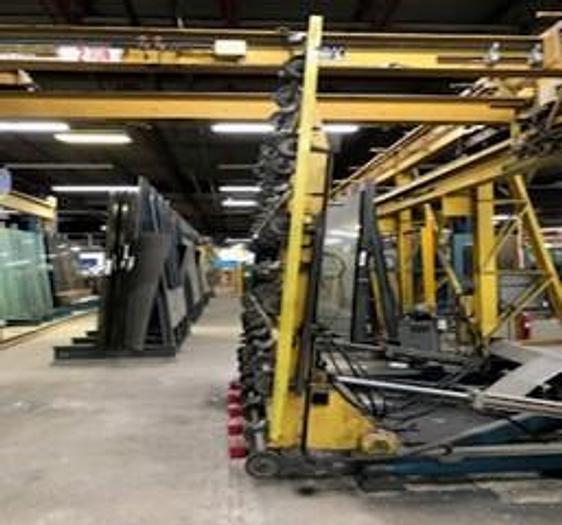

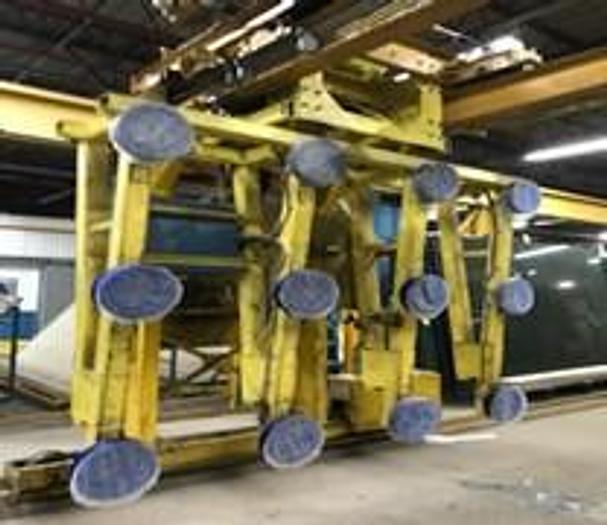

Gopher Glass Retrieval System & 5-Ton Gantry Crane

All Specifications Subject to Verification -

Offers on individual pieces will be considered upon request

All Lines are to be removed by the Buyer's Rigging Company
