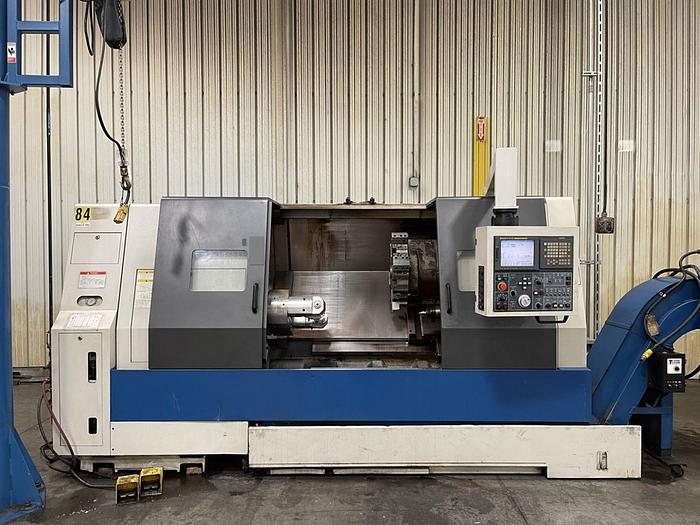

2006 DAEWOO PUMA CNC LATHE Model: 400B

2006 DAEWOO PUMA 400B CNC LATHE

Chuck Size: 15" capacity, 15" Kitagawa hyd. chuck

Max Diameter Bar Capacity: 4.63"

Max Swing Over Bed / Carriage: 27.56" / 18.9"

Spindle Motor: 50 / 37 HP

Spindle Speed: 20 - 2000 RPM

Spindle Nose: A2-11

Spindle Bore: 5.2"

Rapid Traverse Rates (X / Z): 630 / 790 IPM

X-Axis Travel: 14.3"

Z-Axis Travel: 43.5"

Turret Index (Single Step): 0.25 Seconds

Distance Between Centers: 44.1"

Max Turning Diameter (Max / Std): 21.65" / 14.96"

Max Turning Length: 41.34"

Spindle Torque: 1836 ft. lbs.

Tailstock Taper: MT#6

Equipped with:

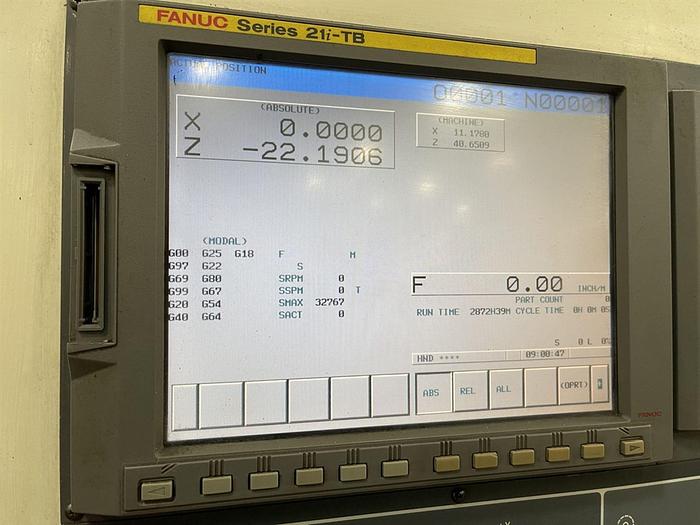

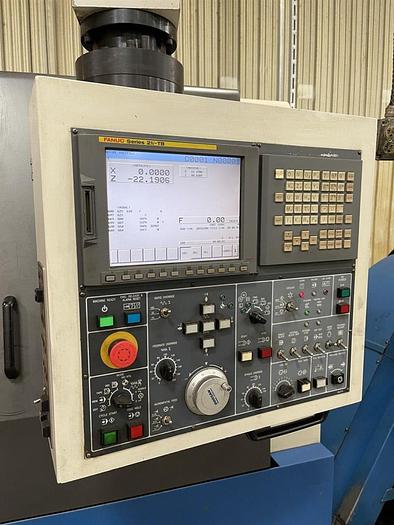

FANUC 21iTB CNC control

PC/MCIA Interface

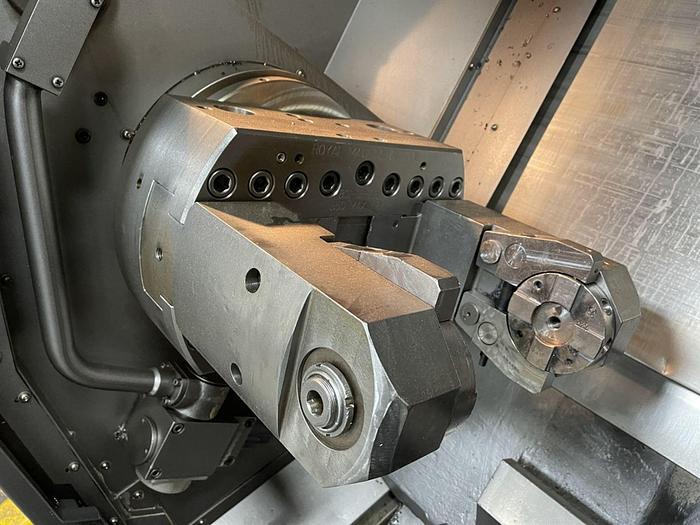

15" Hydraulic Chuck included

Programmable Tool Presetter

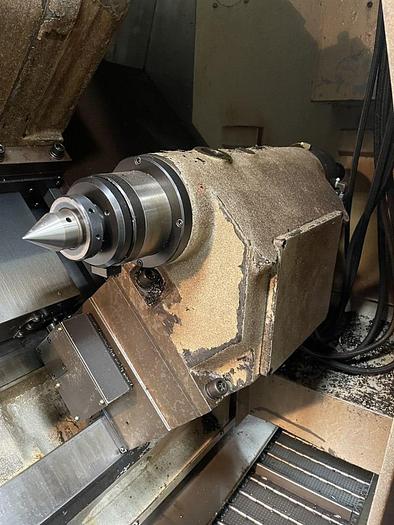

Programmable Tailstock Quill

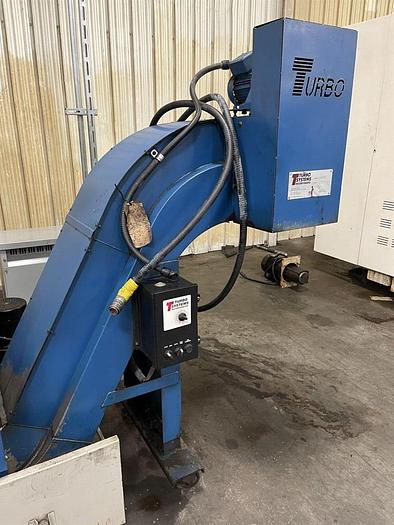

Chip Conveyor

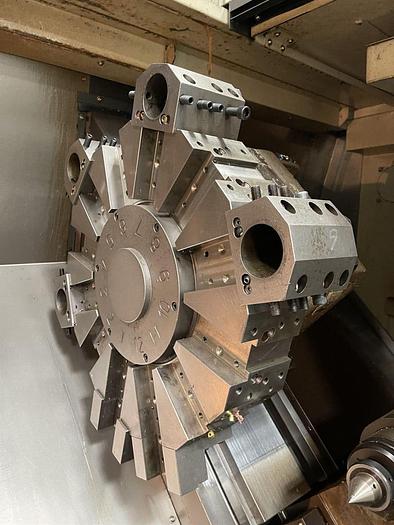

ATC: 10 Tools

Machine Dimensions (L x W x H): 153" x 85" x 90"

Machine Weight: 19,000 lbs.
