Okuma ES-L6 CNC Turning Center

OKUMA ES-L6 CNC TURNING CENTER

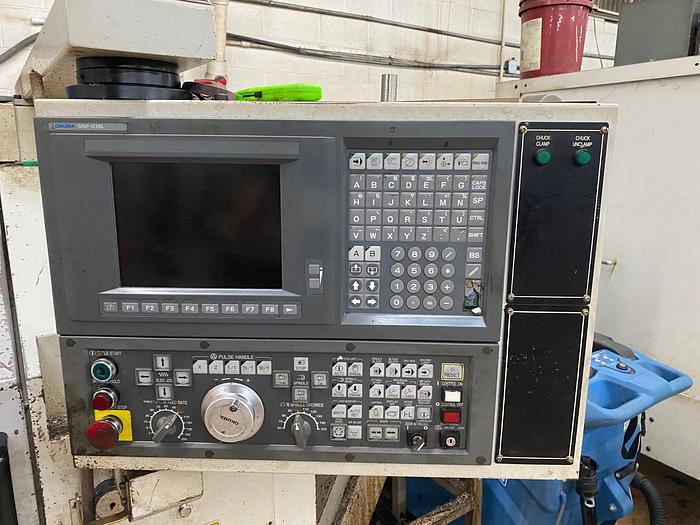

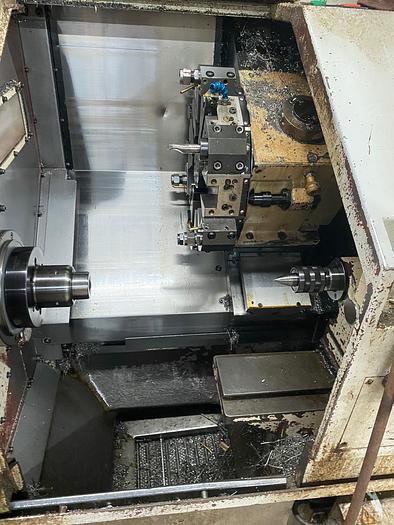

OSP-U10L CNC Control, 12 Position ID/OD Tool Turret, PLC, Heavy Duty Slant Bed Construction,Chip Conveyor and Coolant System.

SPECIFICATIONS:

Max Swing Over Slant Bed.................................. 17.72"

Max Swing Over Carriage................................... 13.78"

Max Swing Over Cross Slide................................ 11.81"

Max Distance Between Centers.............................. 11.02"

Cross Travel (X-Axis)..................................... 6.10"

Longitudinal Travel (Z-Axis).............................. 12.6"

Feed Range (Infinitely Variable) ......................... .1 to 200 IPM

Rapid Traverse Rate ...................................... 591 IPM

Number of Turrets......................................... 1

Turret Positions.......................................... 12

Spindle Bore.............................................. 2.36"

Bar Capacity.............................................. 2"

Spindle Speed Range....................................... 133-6000 RPM

Spindle Drive Motor....................................... 10 HP

Electrics................................................. 220/3/60

Approximate Machine Dimension............................. 76" x 67"

Approximate Machine Height................................ 67"

Approximate Machine Weight................................ 6170 LBS

All Specifications Subjects to Verification
